Achieving a uniform paint topcoat on ABS plastic presents an obstacle, though a manageable one with the right paint and preparation. In this piece, you will find a wealth of useful information on how to effectively ready ABS plastic for painting and obtain a high-quality and long-lasting appearance. Everything helps, starting from the characteristics of ABS plastic make-up, to proper preparation, and choice of the primer and the coat. It is essential to stick with the order of things and the techniques used to avoid unattractive surfaces, a perfect example being poor coating adherence or inconsistent application from cowling to cowling. If you are simply a weekend carpenter or an expert painter, however, you will be able to triumph over any challenge using the qualifications and norms outlined in this post.

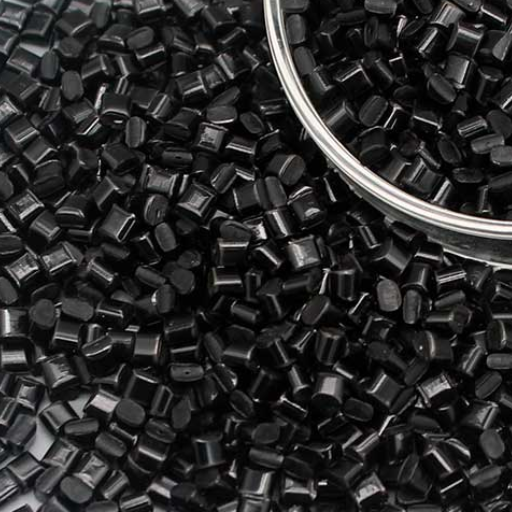

Understanding ABS Plastics
Acrylonitrile Butadiene Styrene (ABS) is a thermoplastic that exhibits exceptional strength, resistance to elements, and high flexibility. Its light weight and excellent strength, combined, make it an ideal choice for a wide range of products, from automobile parts to articles of daily use and electrical insulations. What makes ABS stand out is that even after being subjected to stresses, it does not deform, unlike many other similar materials. And thermally and chemically it is well stabilised and possesses some resistance to corrosion. It has a very smooth surface, which makes solvent-based painting quite effective. However, more work in the form of sanding is required to ensure the paint sticks to the surface because most surfaces have poor adhesion ability. Painting: Principles, materials and procedures. Rendering describes how these figures are found. This information is important for the optimal methods and materials when working with ABS plastic.
Properties of ABS Plastic
Mechanical Strength
- Tensile Strength: Ranges from 37 to 43 MPa, depending on grade and processing.
- Impact Resistance: Has good strength in most cases with standard tests flaunting values between 200 and 250 J/m more often than not.
- Hardness: Heavily insulating, with air conditioning panels able to insulate down to 0.017 W/mK even if the surface is extremely stretched and over 10 heat fluxes (ambient to 40 degrees).
Thermal Properties
- Heat Resistance Temperature (HDT): Typically ranges from 85°C to 100°C under load, depending on the specific formulation.
- Melting Point: The terpolymer does not have a set melting point, instead, it undergoes an incremental softening in the melt at a range of about 105°C to 125°C.
- Thermal Conductivity: It has a low thermal conductivity value of about 0.17 W/m·K which is useful for insulation purposes.
Chemical Resistance
One remarkable thing about ABS is that it is resistant to many chemicals such as acids, alkalis, and oils but it is sensitive to solvents such as acetone or esters. This makes it ideal to be used in environments that experience less exposure to chemicals.
Flexural Modulus
Offers a flexural modulus of approximately 2.1-2.5 GPa, which provides moderate rigidity while maintaining elasticity under load.
Electrical Insulation
With a dielectric strength of 15-20 kV/mm, ABS regulation is superior to other plastics. Normalizing electrical circuits should work well with this kind of plastic.
Density
The density ranges from 1.02 to 1.06 g/cm³ which means that the plastic is relatively light weight compared to metals without compromising on the strength characteristics.
Compare ABS Plastic with Other Materials
| Parameter | ABS Plastic | Polycarbonate (PC) | Polypropylene (PP) | Aluminum | Steel |
|---|---|---|---|---|---|
| Tensile Strength | 40 MPa | 55-70 MPa | 30-35 MPa | 310-570 MPa | 400-550 MPa |
| Density | 1.02-1.06 g/cm³ | 1.20-1.22 g/cm³ | 0.90 g/cm³ | 2.7 g/cm³ | 7.85 g/cm³ |
| Thermal Resistance | 100°C | 120°C | 90-100°C | 660°C | 1370°C |
| Electrical Insulator | Excellent | Good | Excellent | Poor | Poor |
| Impact Strength | Moderate | High | Low | Low | Very High |
| Corrosion Resistance | Excellent | Excellent | Excellent | Susceptible | High |
| Cost | Moderate | Higher | Low | High | Moderate to High |
| Recycling Potential | Good | Good | Excellent | Excellent | Excellent |
Common Uses of ABS Plastics
ABS plastic is made out of Acrylonitrile Butadiene Styrene plastic and can be found in many industries because it possesses several domestic advantages such as good quality, affordable price and ease of manufacturing. One of the key uses of ABS is its extensive utilization in making automotive parts, such as its application in making dashboards, wheel covers, interior trim, etc., where materials, strength, and lightweight are key factors. Also, consumer electronics wear such as flat panel users, laptops and printers have lots of ABS materials deployed in the consumer intelligence casings for TV in particular and why.
The mentioned material also contributes greatly to the making of consumer items ranging from vacuum cleaner encasings and kitchen equipments to toys with the flagship coverage being the fact that it’s used in making LEGO materials, owing to its durability and beautiful pigmentation retention. Moreover, ABS is the best selection for filament printing for worry-free 3D modelling applications for its excellent processability, physical characteristics for 3D technology, retention of geometry, and formation of high-quality goods. Its adaptability ensures that ABS is still a preferred material for applications that seek to combine strength, aesthetics, and economical design principles.
The Importance of Priming ABS Plastic
Using a primer on ABS plastic becomes highly necessary to ensure that the plastic surface bonds with coatings such as painting and adhesives very well. This is because ABS plastic is quite smooth and non-porous in nature; hence, paint does not stick very well to it and in so doing, one has to first apply a medium. A top quality primer allows you to create an additional adhesion connection even and is much more useful when it comes to rectifying defective material in any particular paint layer or any other environmental reasons. Also, if there is paint meant for plastics, the paint minimizes such issues as delamination peeling and exceeds the life of the finish. The use of such is recommended for such situations purposes of optimization of the process and enduring actions of the finished product.
Why Use a Primer for ABS Plastic?
The practice of coating ABS plastic before painting is indispensable to achieving an end product that is of good quality in terms of appearance. The challenges that arise in relation to the surface of materials constituted of ABS and their handling needs, are also quite different. The surface of ABS plastic is smooth since it does not have any pores so it is hard for paints or coatings to stick to it. Such a challenge is well managed through the use of a Type of Primer optimized for plastic that creates micro micro-roughened surface to improve the bond of the undercoat and the top coat. Types of Contemporary plastic primers have very effective adhesion promotion and resistance against ultraviolet radiation, which allows the coating to last for a very long period, especially in extreme conditions. They also prevent such occurrences as peeling, cracking or fading that may develop over a period of time. For instance, primer has become a must for industries like the automotive, consumer goods, and manufacturing sectors, ensuring uniform products, prolonged shelf life, and resistance to harsh weather conditions.
Benefits of Using an Adhesion Promoter
Enhanced Coating Adhesion
Adhesion promoters act to improve adhesion of what substances on the primer to prevent peeling or removal. This leads to more consistent application and lowered chances of peeling. Such operations are also highly beneficial in that they enable an increase of 40% in adhesion levels in some cases.
Improved Durability
Adhesion promoters may increase bond strength, but still remain, layer by layer, resistant to wear and tear, especially in cases where the environmental conditions present high temperatures, humidity, and or abrasive attack. This has the consequence of increasing the life expectancy of a coating system by 20-30%.
Superior Resistance to Environmental Stressors
Adhesion promoters are usually composed of specific additives that promote UV resistance, protection from oxidation or chemical attack, or other factors differing the normal behavior of the dynamic response of the coating. For example, the anti-ultraviolet qualities help in delaying the deterioration of paint for automobile applications which would result from direct sunlight.
Reduced Maintenance and Repair Costs
Research shows that reduced maintenance frequency and cost are brought about by better and longer-lasting adhesion. Statistics show that surfaces with added adhesion only require 1 or 2 coats to be refreshed over the product lifetime, while those without even the basic surface preparation get away with 3 or even more coats with every maintenance calendar.
Expanded Material Compatibility
Use of adhesion-promoting agents in adhesives allows them to stick on various substrates, such as metals, plastics, and composites, where problems of adhesion are usually present. Thus, there are numerous industries and a range of products that can adopt these techniques.
How Primers Improve Paint Adhesion
Primers are used to provide a barrier layer between the substrate and the finishing coat in order to allow better paint anchorage through altering the physical and chemical properties of the surface. They function by plugging in porous areas, flattening untidiness, as well as ensuring smooth, primed surfaces, that is, capable of efficient and even texture when coating. In most cases, they also include other polymers as well as other compounds, such as accelerators and chain transfer agents, which improve the adherence via covalent and/or non-covalent bonds with the substrate and even the subsequent coat.
Furthermore, primers enable the prevention of problems like corrosion occurring on metallic surfaces or swelling taking place on porous materials such as wood, hence providing longevity. It has been supported by evidence that with the application of chelate primers, paints can last 30% than when barewood or metal is painted, which means repeated maintenance of structures can be avoided. Their reach is seemingly unending and includes automotive sectors, for example, which require the making of paints robust enough for the given environment as well as building industry which requires the covering of surfaces such as membranes, partitions and structural elements.

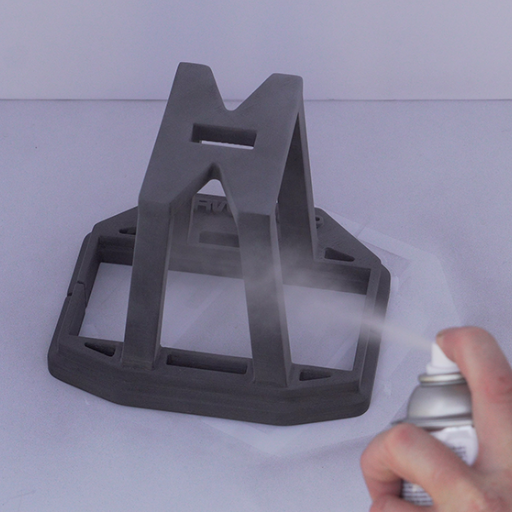

Preparing ABS Plastics for Painting
It’s highly essential for one to start preparing ABS plastic for painting by cleaning the surface thoroughly. This entails getting rid of any filth or oil as well as other objects on the surface. Utilize a light dishwashing detergent mix in water, then finish off with a dry cloth to dry it off completely. The next step will involve gently grinding the surface with 220-320 grit sandpaper, which will help achieve the desired texture and also aid in the paint’s better bonding. Do not plan to continue after sanding until the room is clean and the plastic is smooth. Most preferably, isopropyl alcohol will be lightly dabbed on the surface as a second step. Do research and get a better plastic adhesion primer that is suitable for ABS plastic, and, as directed, the drying and curing times must be followed. At this point, the primer is dry and the spray painting should start but it should be done in two to three thin layers to cover it all and to strengthen the hardening plastic layer.
Cleaning the Surface
Preparing the surface correctly is extremely important when performing any painting work. Especially when paying attention to the surface of plastic, where there are no irregularities. The first step is to clean the plastic object properly using some soap and warm water, wherein all dirt, grease, or residues have been eliminated. Then the entire composite should be rinsed to avoid leaving any traces of soap. In case even more tenacious impurities or mineral oils have not been removed, it is recommended to treat them first with isopropyl alcohol (preferably with not less than 70% content) or special plastics cleaner since they enable better destruction and removal of deposits impeding further adhesion. Always opt for thorough drying and this may mean allowing the plastic to dry naturally or using a clean, lint-free cloth to fasten the process. Preparing a contaminant-free surface also addresses the appearance of any defects in the finish and optimization of the bond strength between the substrate and the first coat.
Sanding Techniques for ABS Plastic
In order to obtain a texture with minimal damage during the sanding process, it is necessary to know how to properly work with ABS. To achieve this, take a rough coated paper suitable for the 120-150 grade and start rubbing the material attempting to wear and tear these issues, as well as any burrs. When applying the latter technique move in one direction only while keeping the pressure direction straight throughout to prevent possible valleys or swirls. For the last step, use a slightly coarser abrasive material in the region of 220-320 grit to level the working surface in the preparation of the paint or primer.
When refined sanding becomes necessary but the desired surface is tough to reach, tiny sanding blocks and detail sanders come in handy. Before ending the sanding process, the substrate can also be subjected to wet sanding, usually of between 400 to 600 grit, to give a more polished look. Apart from that, it also tends to produce heat which can cause bending in the case of plastic and unwarranted roughness. It is thus important to keep rinsing the tool and the substrate regularly while performing wet sanding in order to remove any particles that can leave scratches to the surface. By following such methodical approaches on kneaded parts, the ABS plastic will attain a flat surface making it suitable for any further treatment or sticking. Assess the material for sanding in a well-ventilated space, and ensure that any safety gear, such as hand protection and health masks for dust and dirt, is worn.
Choosing the Right Primer
Primer for ABS plastic must be chosen taking into consideration the chemical compatibility, surface adhesion properties, as well as, desired outcome of the project. It is highly advised to opt for the pre-treatment made solely for plastics as they bond strongly with even porous surfaces such as ABS. Acrylic-based enhancers have the advantages of being multipurpose, improving adhesion, and possessing stretch. Conversely, epoxy base paint is ultra-tough with high-powered protection against the anticipated perils like moisture, chemical or high exposure to ultraviolet rays. The first step involves checking for any dirt, grease or other contaminants and sanding surface scuff prior to application of primers onto the ABS surface. Also, the application of the primer is mandatory like any other surface treatment and undercoating preparation. A TDS sheet does not usually only contain information priming but also instructions on that of proper prep work. For instance, whether the surface can be painted right away or would require other stages of preparation.

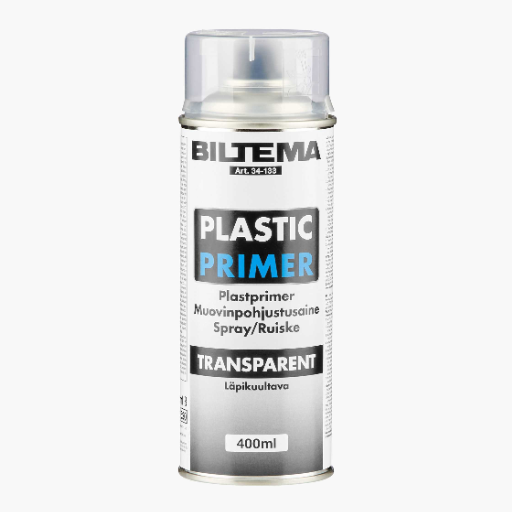

Applying Primer to ABS Plastic
- Prepare the Surface – Get rid of all the plastic impurities by cleaning it with isopropyl or a detergent in order to prevent environmental pollution, with additional quality control or checks if necessary. Make sure that the surface is uniform by applying a light hand to the plastic in a circular motion with a dry and clean patch, specifics using a 400-500 sand paper.
- Choose the Right Primer – Pick a coating product with the correct specification for plastic since there are those paints that can make ABS behave in ways that it is not supposed to. Make sure there is a technical data sheet (TDS) of the primer which is being used to know how good, bad or ugly it will be.
- Apply Primer Evenly – Apply the primer in light and even coats whichever the most applicable, spray or brush according to your preference to avoid uneven application and dripping. After each coat of primer, leave the surface for the number of hours that is indicated in the instructions for the particular coating so that adhesion is achieved.
- Cure Properly – Do not start any application of coating and other treatments before making sure that the primer is dry according to the TDS. This is a crucial step in preserving good lastic protection for any reasonable amount of time.
Best Practices for Priming ABS
- Surface Compatibility Testing – After priming, it is important to ensure the compatibility of the material with the paint. Thus, checking whether the primer binds well to the particular type of ABS being used is pertinent. Not all types of ABS will respond to priming in the same way.
- Use Solvent-Based Primers for Maximum Bond Strength – Generally, the use of solvent-based primers is more advisable for ABS plastic, since these solvents slightly yield the surface, which improves the chemical adhesion process. Ensure that the primer system goes without saying what kind of project it is.
- Control Application Environment – Priming must only be performed in an environment free from undesired moisture, with a temperature providing satisfactory results for application, according to the manufacturer’s guidance. High relative humidity levels, or temperature changes can cause problems with the cure as well as the wet or dry adhesion of the bond.
- Apply Primer in Multiple Thin Layers – The application of several thin layers is advisable as opposed to applying a single thick coat of primer. This practice is meant to shun any repetition and ensure even covering of the primer paint.
- Maintain Proper Safety Protocols – Every time you are using limiters, put on proper safety clothing such as gloves and respirators. And be sure to work in a well-ventilated environment to eliminate any chance of inhaling any fumes that might be harmful to the system.
- Inspect Surface Post-Priming – For safety reasons, one should observe the coating after the application of the primer paint after it has dried and hardened; especially if that the layer does not have any dents, air bubbles or run offs. Any imperfections, such as pinholes or voids in coverage, can be resolved through the recommended sanding, if it requires sanding between the layers, better adhesion in the depicted areas can occur with accepted treatments.
How to Apply Primer for Optimal Results
- Choose the Right Primer – The choice of the correct primer is important for making sure that there is good adhesion and toughness of the coating. While making a decision concerning the surface nature like wood, metal, or plastic, it is significant that you remember the exposure of the coat to the environment. For example, oil-based primers are perfect for the woods that stain, while drywall and other mixture surfaces work well with water-based primers.
- Surface Preparation – The operation involves the step of surface cleaning and proper treatment to provide for better adhesiveness of the primer to the base material. For instance, degreasers and other solvent-based cleaning agents could be used to take off oil, dirt, and any other contaminant that can make the surface unsuitable for priming. If there is a surface that is smooth or glossy, abrasive methods should be used on the surface by means of fine sandpaper to allow the primer to adhere better.
- Choose Application Tools – Differently from the background stiffness and cover, the application leads to increase the requirements of widely brushed out undercoat. It is important to ensure that the brush or even applicator to be used complies with the substrate material. Larger areas of application on the other hand can be rolled out quickly using airless sprayers.
- Apply in Thin, Even Coats – One of the mistakes in priming is to put too much primer on and it starts dripping. Subsequently the layers is not applied thick, but rather thin, deep and in duplicate or triplicate layer steps. This effort reduces any issues and ensures good laying.
- Control the Environment – Factors such as temperature and moisture are things that should be considered as they have great influence in the process of primer application. Preferably the focus changes and temperature levels lack in range window if the upper limits; in the more wet adhesvies of operating temperatures may cause the curing reaction to go wrong. It is the behavior of a person to want to measure those elements in the space, e.g., the use of a thermo-hygrometer to measure the room’s conditions.
- Allow Proper Drying and Curing Time – Drying and curing data depends on the manufacturer and product and should be observed to avoid any mistakes. If the base coat is not given time to cure first and the coating or subsequent steps are hurriedly applied, coating defects may be induced. Make sure that the surface is devoid of any dust or foreign material before applying another material or moving to the finsh coatings.

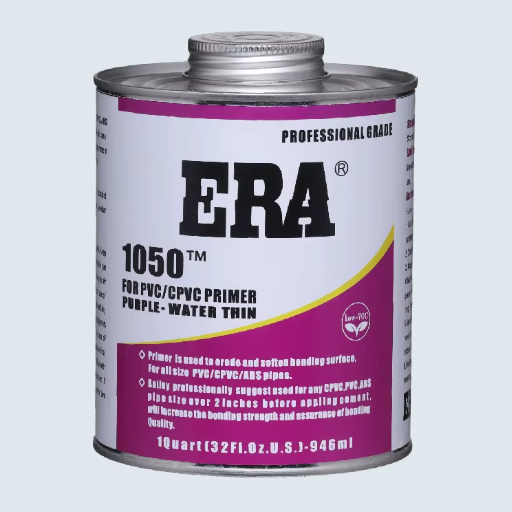

Painting ABS Plastic After Priming
Once the ABS plastic component is properly primed, it is critical that the plastic faces are painted with a proper selection of paint types and applications to keep it up for a longer time. It is advisable to purchase paints from acrylic or enamel groups. As these types of paints have a better bond with the pre-primed ABS, they are ideal for use on ABS. There shall not be any puffing or sagging problems as just a few layers are painted on the plastic at one time, usually between two and three layers so that the coated surface is smooth and even. The duration suggested by paint manufacturer for recoating must be observed. The final bit is in the application of a top clear coat for which is compatible with the plastic. Allow the material to dry between each layer before shifting to the next level.
Choosing the Best Paint for ABS Plastic
Choosing the right paint for an ABS surface involves several engineering criteria that should be met to obtain durability, wear resistance, and aesthetics. It’s also beneficial to select a solvent-based paint type like acrylic and enamel paints where such films chemically anchor into non-porous material at the surface of ABS due to their inbuilt properties. From long-term perspective, the advantage of acrylic paints lies in the fact that these are not only tough, but flexible as well. Unlike acrylic paints, enamel paints are more suitable for use where abrasion is high since their abrasion resistance, hardness and durability are very good.
Underwater coatings are another option to consider, but they may not perform as well when aided by a primer, especially if the surfaces are not conducive to wetting by polar/semi-polar solvents. To ascertain which paint will be the best fit, think about the areas or application it will be exposed to: for example, overcoats would be enhanced by the nearer presence of ultraviolet-resistant or weather-proof overcoats, as in the case of external elements. However, when it comes to ribs, beautification shall take precedence over tolerances, allowing for gloss levels, the shininess of the coats, and either matte, semi-gloss, or high-gloss finishing. So with the proper kind of paint and preparation method, you could also present a grade A finish that will complement the decorative beauty of your ABD polycarbonate products.
Achieving a Smooth Finish
If one is looking forward to a smooth, professional-grade finish on ABS plastic, it is crucial to achieve this by thorough surface preparation. The first thing is to clean the plastic with isopropyl alcohol; it will be used to scrub away polish most of the time, some dust or anything else that could interfere with the adhesiveness of the paint. Once done, use a piece of finer sandpaper to treat the surface layer (like 400 or 600 grit sandpaper) and roughen the surface to achieve better isolation between the plastic and the primer. Once the sanding process is done, ensure to pass a clean cloth over the surface again to ensure there is no particles stuck on the surface.
Then, you should consider the application of an excellent plastic primer in minimal, even layers. This product has been designed to interact with smooth surfaces such as ABS plastic without chipping or peeling off in the long run. You should also adopt a wait time befitting the primer coat as per the guidelines given by the manufacturer to ensure the durability and the ahead of the condition of the job. While the primer coat remains dry, begin painting with a few layers of spray paint, leaving no streaks or thick sections of the paint. When that is out of the way, a transparent protective coat can be used, and it leaves less call for mournful sprays that may not be necessary. This is a simple and easy way of getting a great finish for a wide array of properties and surroundings.
Reference Sources
-
Material recycling of acrylonitrile butadiene styrene (ABS)
- Summary: This study explores the use of recycled ABS (rABS) in remanufacturing electrical frames. It examines the mechanical properties and environmental benefits of using rABS, emphasizing its potential for sustainable manufacturing.
-
Impact of recyclability on the tensile and impact resistance of ABS
- Summary: This research investigates the tensile modulus and impact resistance of ABS and its blends with polycarbonate. It evaluates how recyclability affects these properties, providing insights into the material’s performance in various applications.
Frequently Asked Questions (FAQs)
Q: What is the best primer for abs plastic surfaces?
A: The optimal primer to use when working on an ABS plastic component is one that is explicitly formulated for use on such surfaces. You can consider seeking primers having a better primer that has better adhesion and resistance to wear such as Rustoleum or specialized automotive primers. Such primers provide the necessary coat to minimize the bonding of paint on ABS plastic. As with any paint products and coatings, correct implementation, and other recommendations mentioned, should be observed. An additional method that might be employed is that fine-grit sandpaper might be used to polish the object before adhesion.
Q: How do I prepare abs plastic before applying primer?
A: Before the treatment of an ABS plastic with a primer, thoroughly clean the surface – get rid of all dirt, oils, and foreign substances. For this, there are special substances that effectively clean the surface, a rubberized, special cloth that attracts dust and, if required, a coat of primer may be used. After cleaning, it is important to lightly treat the surface of the 400 grit paper as this will help the paint substances to adhere better. This is particularly important as it helps the primer to adhere to the abs plastic in an effective way. Before stepping to the next phase of the work, clear the area from the dust that was produced during the sanding process.
Q: Can I paint on abs plastic without using a primer?
A: Regarding the Finishing of abs Plastic Parts after Sanding, Overmolding with no coat Unit thereafter, It is possible to do a splash in the belle without applying a primer. However, such approach is not prudent for it better paint. The adhesion of the paint and its specification upon them explicitly depend on adhesion of very low viscous primer to the plastic. But without the primer, the paint may show lesser adherence, resulting in a possible crack or flaking. To prevent this, it is advisable to coat the abs plastic with primer for decorative painting finishes as a necessary alternation.
Q: What is the curing and drying time for abs plastic primer?
A: How long abs plastic primer takes to dry and cure varies depending on the product of choice. Generally speaking, most primers will take some hours to be dry to the touch, on the other hand it might be equal or longer to cure fully. Even if it is not necessary following the application in few hours the topcoat should be at least 24 hours between the application of paint topcoat to ensure adhesion. Always refer to the specific instructions in the owner’s manual for the most suitable results. The more dimensions that increase drying time are temperature, humidity, and air flow.to indoor areas like buildings, the drying takes more time than in exterior places.
Q: What are the best practices for painting abs plastic models?
A: When painting abs plastic models, it is imperative to work with a clean base. Tack cloth should be used to remove any minuscule particles that may be present even after sanding. Primers have the added benefit of not only preparing the surface for paint application, but also in enhancing or promoting the quality of adhesion of the paint. The paint should be sprayed thinly in different layers to avoid droplets and to ensure coverage is even. Moreover, allow each layer of paint to dry first before you proceed to the next part for that nice smooth ending. These rules which are simple to follow will guarantee a high standard of painting done on those abs plastic models.
⚠️ Safety Considerations
- Remember to keep a well-ventilated area while working with paints or primers
- Make sure to put on the right PPE which may include masks, gloves and eye shields
- Follow all safety instructions provided by the manufacturer in addition to the material safety data sheets
- Ensure that the neither the work being performed nor the equipment being used are exposed to any sources of fire where solvent based products are involved
- Observe the local environmental provisions when disposing off harmful chemicals or other materials.
🎯 Key Takeaways
- Painting ABS plastic, however, is dependent upon proper surface preparation and wear coating material.
- Opt for plastics designed primers for better sticking and prolonging of paints.
- It is advised to apply plastic coatings in thin layers as thick layers takes time to dry and causes cracks.
- Drying and curing duration should be expected between any subsequent painting task
- Make an informed decision on the type of paints to choise based on the condition and type of use
- Make sure to look after your safety at every activity.
