3D printing is one of the newest technique that has changed not only our approach to manufacturing processes, but also prototyping and even creative expression. However, every destination of 3D printing hinges on the treatment of the right kind of material. Among the most optimal materials used for working in 3D are ABS plastic and a monofilament, which are both engineered to perform certain specified applications. This piece aims to provide the balance within these two materials through a comparison of their levels of superiority, weaknesses, and the best cases of employing each of them. No matter how experienced you are or if you are doing it as a leisure activity, this article will aid you in making constructive judgments for the best possible 3D printing outputs.
What is Nylon and How Does it Compare to ABS Material?
Nylon is a polymeric material mainly used for its high strength, toughness and flexibility aspects and is a favorite for many applications especially in 3D printing. In terms of its physical properties, on the one hand, ABS is used specifically for its strength and ease of machinability, whilst on the other, nylon can withstand greater impact as well as has greater tensile strength. It is also resistance to abrasion or chemical properties lacking in ABS is ideal for components with pleasing gears or FAPs is particularly high. However, this high absorption rate means that its storage qualities may determine the print quality, particularly for these niches where such interactions are common. Also, ABS is generally easier to print and sticks well to the print bed. This means that even when it isn’t the choice of material to use, most pros would opt for nylon considering its rather favorable qualities in terms of physical properties.
Overview of Nylon: Properties and Uses
Key Properties of Nylon:
- High Tensile Strength
In this perspective, nylon plays a very significant role as it has very high tensile strength, which gives it an edge over most other materials, especially when filler is used. Here, the tendency to withstand mechanical stress is commendable since it can withstand very high forces without breaking. The tensile strength typically lies around 80-90 MPa depending on the composition.
- Excellent Wear and Abrasion Resistance
In situations where a component is in contact with a finished surface, or experiencing severe rubbing, nylon performs quite well. This wear-resistance of the nylon significantly reduces the wear pattern and extending the life of components such as the gears and bushings much more than expected.
- Thermal Resistance
Another positive developmental regarding this material is the melting temperature of nylon which is relatively high with most commercial nylons melting around 220°C – 260°C, however it is dependent on the type of nylon in use. This means that, when less resistant materials cannot withstand high temperatures, PMI for instance, nylon will present improve performance.
- Chemical Resistance
Nylon has good resistance to a variety of oils, solvents, and bases. However, when in contact with strong acids or aggressive chemicals, this polymer may decompose over time.
- Flexibility and Impact Resistance
In rated temperature, still remains pliable and not greatly subjective to low temperature effects. suit such case where loads are applied and there is shifting or vibration of machinery.
Common Uses of Nylon:
- Automotive Industry
It is heat resistance is utilized to items such as fuel lines, engine covers, and bearings.
- Textile and Apparel
Its strengths in terms of its stretchability in different diameters can be felt in articles of clothing like cots and make fishing lines.
- Electrical and Electronics
For Electrical operations, it can be used to build insulation, such as in connector blocks and other circuits.
- Industrial Applications
It displays a poor coefficient of friction between moving parts; hence, it is suitable for Gears, Bushings, and Conveyors.
- Consumer Products
ABS Plastic: Characteristics and Applications
Key Characteristics of ABS Plastic:
- Impact Resistance
ABS, on the other hand, has outstanding performance in terms of its impact resistance which makes it a suitable material for use in applications that are likely to face a lot of physical abuse. ABS embraces all the heavy work it is subjected to ensuring it suffers the least damage and will not crack on the way.
- Thermal Stability
ABS also has very good structural properties, for example it can work perfectly at temperatures that are neither too low or too too high – typically, from -20°C to 80°C (-4°F to 176°F), so it can be effectively used in both outdoor and indoor conditions.
- Chemical Resistance
ABS has its specificities when it comes to how it behaves in various chemicals and it happens that it does not get affected by most of the acids, alkalis, oils and this broaden its scope of application to chemically aggressive surroundings.
- Ease of Processing
ABS can be molded to very high tolerance since the material is easily compatible with established manufacturing techniques including such advanced techniques as injection molding, the artful 3D printing or extrusion to mention a few.
- Surface Finish
The advantages of the material are good color and gloss retention making it suitable for consumer products besides the fact that it looks great.
Applications of ABS Plastic:
- Automotive Industry
Due to the high impact resistance and high toughness, it is commonly used to make dashboards, control panels, inner covers, and housing mirrors. It also adds a capability to absorb vibrations and impact loads.
- Electrical and Electronics
ABS is applied to the designing of a number of different products for sale, such as plastic electronics enclosures, pc keyboards, or bodily accidents, Apple device protection, because ABS has significant dielectric and other numerous physical properties and can be used.
- Household Products
For vacuum cleaners, trunks, or kitchen equipment, the aesthetics as well as the strength of the ABS are relied on in many cases.
- 3D Printing
ABS is highly preferred in the 3D printing industry, especially for rapid prototyping and low-volume production due to its high level of repeatability, low thermal expansion and relatively cheaper costs.
- Construction Materials
Nylon vs ABS: Key Differences
Key Point |
Nylon |
ABS |
---|---|---|
Material Type |
Synthetic polymer |
Thermoplastic polymer |
Strength |
High tensile strength |
Good impact strength |
Flexibility |
Highly flexible |
Moderately flexible |
Durability |
Excellent resistance to wear and fatigue |
Durable under impact |
Heat Resistance |
High melting point |
Moderate heat resistance |
Chemical Resistance |
Resistant to oils and solvents |
Limited resistance to chemicals |
Moisture Absorption |
Absorbs moisture |
Low moisture absorption |
Cost |
Relatively expensive |
Cost-effective |
Weight |
Lightweight |
Slightly heavier |
Applications |
Textiles, gears, automotive components |
Casings, 3D printing, construction items |

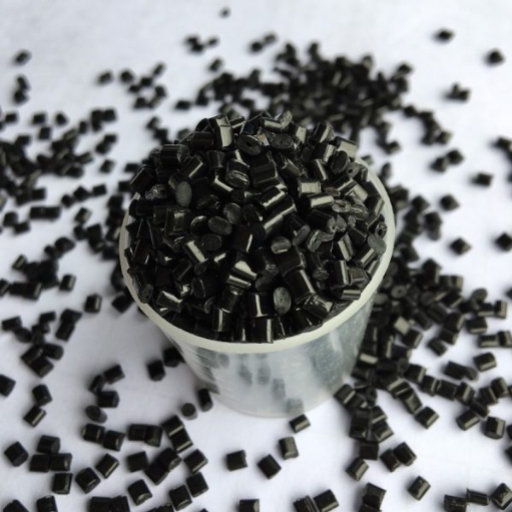

What are the Advantages of Using Nylon and ABS for Injection Molding?
Nylon Advantages:
- Durability: It has wide applications in high – performance activities due to its material. It does not deform easily and is highly resistant to wear.
- Heat Resistance: Because of its melting point, no other material works well in high temperature conditions or at all.
- Versatility: Nylon has extensive use due to its easy transport from place to place because of its weight to strength comparison that is very pleasant even for the toughest of objects including geared components, automobile parts and so forth.
ABS Advantages:
- Impact Resistance: Double whammy is when the material excels itself under any pressure being applied to it The Combination of Styrene Acrylonitrile and Rebels acrylonitrile Butidine Styrene Provides Superior Impact resistance For Structural Applications.
- Cost-Effectiveness: Servo system is made up of more affordable materials and components than any other material and performs the best at a comparatively low cost.
- Processing Ease: Due to its low melting point, applications of ABS are enabled to achieve quicker and effective mechanical properties which save on the usage of PVC as well as on production time and energy consumption as a whole.
When making material selection for injection molding, these two materials are often chosen based on their inherent functionality and performance in the construction field.
Strength and Toughness: A Comparison
When considering materials for use in industry, one of the important things to look at in any material is its strength and toughness as this measures how well the material performs under such stress. Strength in particular refers to the material capacity not to distort or fail when subjected to an exerted force that is mainly expressed either in tensile strength or compressive strength. In other respects, the impact energies exerted on the material may cause it to absorb a crack without breaking, this is meant by the materials elasticity.This further includes, dividing the specimen and examining the internal structures.
For instance, ABS has a moderate tensile strength (approximately 40 MPa) thus making it suitable for numerous consumer and industrial products and its impact strength is extremely high thus making it versatile in the case of sudden impact. On the other hand, Polycarnorteics fall anywhere between 55 and 75 MPa, which is also exceptional, in addition to having exceptional toughness to be employed on safety equipment, aerospace components, and other high-stress applications. By comparison, Polycarbonate retains more toughness even at low temperatures before brittling as compared to ABS.
Chemical Resistance of Nylon vs ABS
Nylon offers better chemical durability in comparison to ABS in a given environment, which is good for electrocution. Nylon is generally resistant to most substances, including oils, greases and most solvents, which makes it suited for automotive and industrial uses where these substances are common. However, Nylon materials may experience degradation when subjected to strong as well as weak bases as these may attack the polymer breaking its molecular chains.
Despite the fact that ABS has a poorer resistance to certain chemicals than Nylon, it is satisfactory in most situations for weak acids and bases, as well as alcohols. It is widely used when it comes to oils and greases, and for conditions where it is not very important to have a high performance against eroding agents. However, its capacity is well below that of other upvc and LRFVs, e.g., when exposed to ketones for long periods or immersed in concentrated acids, this material becomes relatively unstable as it readily swells and becomes brittle under those conditions. It is also because of these differences in solvent resistance that one needs to be very cautious when selecting materials, especially for conditions of prolonged interaction with chemicals.
How Does the Injection Molding Process Work for Nylon and ABS?
The process of injection molding of Nylon and ABS can essentially be explained as having the same basic principles, though each has certain features corresponding to the properties of a particular material.
- Material Preparation: Nylon has to be pre-dried due to its hygroscopic trait as it absorbs a lot of moisture before its processing; it has to be pre-dried before its processing can begin while no such special requirements needed for ABS but it is better to dry it for making sure of good moldability of the part.
- Melt Temperature: Nylon on the other hand, most frequently necessitates higher processing temperatures (typically within the range of 450-575°F). In contrast, temperatures up to 350-500°F are typically used on ABS. At these temperatures, the material is still in a flow state without degrading.
- Mold Design and Cooling: Another aspect to consider is that both materials need efficient mold designs to cool not only parts of the molding in time but also the molding machine. Flexible cooling system is required for nylon as the material solidifies relatively easier hence it maintains the desired mold shape. As ABS has lower crystallinity, it cools more slowly and evenly unlike nylon.
- Injection Pressure: To produce acceptable quality parts, a higher injection pressure may be required in the case of Nylon, as opposed to only in the case of ABS.
By optimizing the conditions for injection molding of Nylon and ABS, the same quality will be achieved in all the stages of the production, from performance, constant result and implementation of a product that does not differ from what is expected in the future.
Understanding the Molding Process
The plastic injection molding process is complex and encompasses several parameters that can highly affect the finished product in terms of quality, accuracy, and how well the product works. Important factors in how well a part will perform, in addition to how it will be made, include: the material, the shape of the mold, and the conditions under which the process takes place.
1. Material Attributes: Different types of polymers, like thermoplastics and thermosets, melt at a specific temperature and change their shape. For example, thermosets are called semi-crystalline polymers and include nylons, which have a temperature at which they melt, and that temperature needs to be carefully regulated. Thermoplastics such as acrylonitrile butadiene styrene resins have no clear melting points and may be processed continuously and quickly with little concern for solid-to-liquid changes occurring at defined temperatures.
2. Mold Geometry: The relative size, complexity and the angles of the mold determine the effectiveness of the molten material flow, the rate of cooling and whether or not defects of any form will be present. As for details including draft ancillary components and venting less is more than simple as they must be designed even more for the purpose to sustain the desired fill, minimize vacuum formation, and provide cooling effectively.
3. Process: It is quite important to understand the influence of parameters such as injection temperature, pressure, and cooling time. Temperatures that are too high during injection will be detrimental to the material, low pressure may not achieve fills or cause in unbalanced fills. Time for cooling of is tightly regulated to deal with phenomena such as warpage or retreating stresses of the products.
In attempt to bring about perfection in molding, all these aspects should be well managed with the current technology of simulations being used in a critical manner. This tends to eliminate waste as it solely ensures the required properties and the exact design stipulations of various products are met.
Nylon and ABS for Injection: Key Considerations
ABS and Nylon are very popular in the injection moulding industry because they are versatile and capable of being used in a variety of applications. Belonging to thermoplastics, nylon excels in its high elongation and tensile strength as well as great impact and temperature resistance, making it suitable for use in such auto parts as pistons hoses, gear boxes, and other equipment. This material, in contrast, is very effective for machines that are designed to add shock loads to the structures.

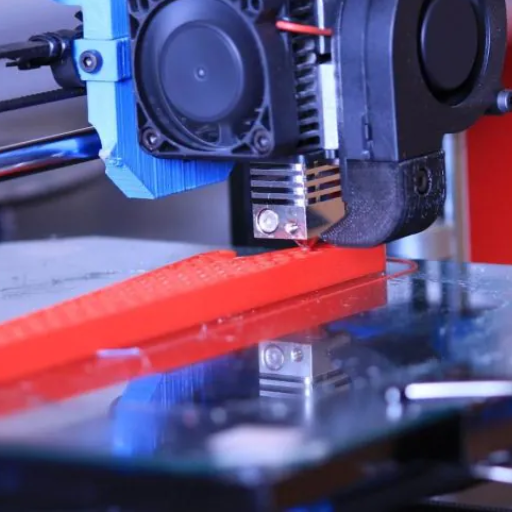

What are the Best Applications for 3D Printing with Nylon and ABS?
Nylon is perfect material for making working prototypes, gear, hinges, and machine elements chiefly because of its robustness, pliability, and wear resistance. In addition, it is most effective in the manufacture of components which necessitate high tensile strength coupled with minimal radial work.
ABS materials are particularly efficient in the production of lightweight and strong devices like such as shells, holders and car fixtures. Durability, simplification of further processing operations and ability to produce very high resolution items are the main reasons why these materials are very much applied in manufacturing electronic and consumer goods in general.
Consumer Goods: Nylon and ABS Applications
Nylon and ABS are frequently employed when working on the manufacture of consumer products due to the excellent combination of properties of these two materials. Nylon is known for its strong, wear-resistant characteristics and finishing with a low coefficient of friction. Clearly, nylon is widely used in the manufacture of materials, including gears, zippers, as well as other fabricated products that dent easily and are professionally durable in textile production. Its treads face wear and tear and remain tough without surrender, for example, in the case of luggage wheels or kitchen interior parts.
On the other hand, accepting ABS with high standards of recommencing it is attractive since its plasticity, flexibility, and capability of rejection are high. ABS, on the other hand, is entirely unsuitable for molding. It is used widely in the creation of consumer electronics, furniture, appliances, and household items such as caissons and safety workwear. It is possible to put in more flexible and stronger materials in products by combining nylon and ABS in a product, especially for tools and hybrid consumers. Enhancements such as durability, precision, and cost-efficiency in fabrication are the features gained by utilizing both of these plastics across multiple market sectors.
High Strength Parts: Using Nylon in 3D Printing
Where applicable, Nylon is a very versatile and strong material when it comes to applications in 3D printing, where parts with high-performance characteristics are needed. Its high tensile properties as well as durability under stress and temperature also make nylon the most used material in gears, bearings, and structures. Its low coefficient of friction helps make it better suited for mechanical applications, reducing wear and enhancing the longevity of components once 3D printed.

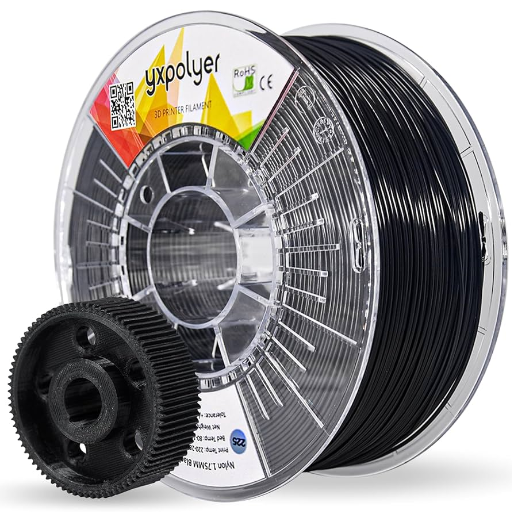

What are the Mechanical Properties of Nylon and ABS?
Nylon:
- Tensile Strength: Nylon fibres have a very high tensile strength that makes them resistant to elongation and able to stop higher loads before fragmentation.
- Flexibility: It is very soft and flexible — perfectly elastic — and fatigue resistance is one of the product’s main strengths.
- Impact Resistance: It is possible to avoid the formation of cracks when the material is subjected to considerable pressure with the just cold impact resistance of Nylon.
- Heat Resistance: Is among those polymers that with good resistance to heat on the one side however after some prolonged exposure tends to get deformed above certain temperature, most polymers just soften as they get heated without reporting any deformation or fall outs even without relying on filler in the polymer matrix.
ABS:
- Tensile Strength: Moderate ultimate strength of ABS, which allows it to be used in non-heavy-load applications.
- Durability: Compare to Nylon, it is more rigid, but still it proves more than capable of withstanding external impacts, without causing it to fracture or splinter.
- Impact Resistance: ABS is categorized as a tough engineering thermoplastic material and good impact resistance at room temperatures.
- Thermal Stability: ABS has high upper service temperature than Nylon and so can resist higher temperatures without showing any sign of deformation.
Dimensional Stability: Which Material Holds Up Better?
If we were to consider the topic of dimensional stability, in the real world, the usage of either nylon or ABS would depend on the envisaged application and the existing physico-climate aspects. There is no doubt that nylon is a better material for mechanical loads because it has a partially crystalline structure preserving its shape. Nevertheless, it can swell when absorbing moisture in use, particularly in tropical environments. Deformation of the item over time can in some cases be throughput to water absorption mainly very high humidity conditions.
On the other hand, the common or regular ABS is a great material of choice in anhydrous conditions, wherein it has less probability of distorting once tension is applied. It does not have issues related to moisture; its flexibility is higher, and hence any precise application can be maintained for long periods of time. While ABS products are capable of reaching thermal limits, enhancing their performance even at such temperatures without distorting, this is at a cost of low water absorption, within which they perform quite consistently.
In the end, if one is to choose between nylon and ABS, it will come down to the specifics of operation and material and regulatory aspects. Recent developments in material sciences promote the improvement of foundations of both types, as it is already common to additives in nature, and others are made, and some of the new grades of nylon incorporate such qualities, most fortified with advanced moisture-resistant features. This is done in order to best meet the short and long-term needs of any given project through the choice of materials.
Wear Resistance: Nylon vs ABS Performance
Reference Sources
-
Comparing nylon and ABS: Which is Better for Your 3D Print?
This article discusses the physical properties of ABS and nylon, highlighting nylon’s superior wear resistance and flexibility. -
Nylon vs ABS: Comparison Guide (2025)
It provides insights into the impact strength and vibration absorption of nylon compared to ABS. -
Nylon vs. ABS: What Should You Choose? – EuroPlas
This blog explores the key differences between nylon and ABS, focusing on their unique properties and manufacturing applications.
Frequently Asked Questions (FAQs)
Q: What are the main differences between ABS plastic and nylon?
A: ABS plastic and nylon differ in their unique properties. ABS, or acrylonitrile butadiene styrene, offers a good balance of strength and durability, making it suitable for various applications. In contrast, nylon plastic is generally stronger and has a higher heat deflection temperature, which allows it to withstand more rigorous conditions.
Q: What applications are suitable for ABS plastic?
A: ABS plastic is widely used in various industries for applications such as automotive parts, consumer goods, and toys due to its good chemical resistance and ease of processing through abs injection molding.
Q: Is nylon plastic more expensive than ABS?
A: Yes, nylon is generally more expensive than ABS. This higher cost can be attributed to its superior properties, such as strength and thermal stability, which make it a preferred material for high-performance applications.
Q: Can ABS and nylon be used interchangeably in 3D printing?
A: While both materials are used in 3D printing, they are not interchangeable. ABS offers a good balance of strength and is easier to print, while nylon requires a more specific process for nylon to achieve optimal results due to its distinct properties.
Q: What are the common applications of nylon in 3D printing?
A: Nylon is utilized in mechanical parts, functional prototypes, and other applications where high mechanical strength and durability are required. Its unique properties make it ideal for applications in various industries, including aerospace and automotive.
Q: How do the heat deflection temperatures of ABS and nylon compare?
A: Nylon has a higher heat deflection temperature compared to ABS, making it a better choice for applications that involve higher temperatures. This property allows nylon to maintain its mechanical integrity under heat stress, while ABS may warp.
Q: What are the UV resistance properties of ABS compared to nylon?
A: ABS plastic typically offers decent UV resistance, making it suitable for outdoor applications. However, nylon may not perform as well under prolonged UV exposure unless treated. Therefore, the choice between abs plastic vs nylon can depend on the intended application environment.
Q: What is the significance of the term “abs injection molding” in relation to ABS plastic?
A: ABS injection molding refers to the manufacturing process used to create ABS plastic parts by injecting molten ABS into a mold. This process allows for the production of complex shapes and high-volume parts efficiently.
Q: Which material should I choose for my 3D printing project, ABS or nylon?
A: The choice between ABS and nylon depends on your project requirements. If you prioritize ease of printing and good chemical resistance, ABS might be the better option. However, if you need higher strength and thermal stability, nylon could be the preferable choice.
