Polyoxymethylene, or POM, is often called polyacetal or acetal resin and is one of the high-performance engineering plastics, which are characterized by their strength, stiffness and dimensional stability. It is used in a number of harsh conditions applications because it offers resistance to chemical damage and high wear and tear, and this is why POM is routinely found in numerous applications. Such as automotive and electrical devices and consumer goods, POM provides commercial value in everything, including its structure. This guide will teach individuals about polymers in POM, whether industry experts or learners beyond just ceramics, their applications, and how to optimize poms benefits.

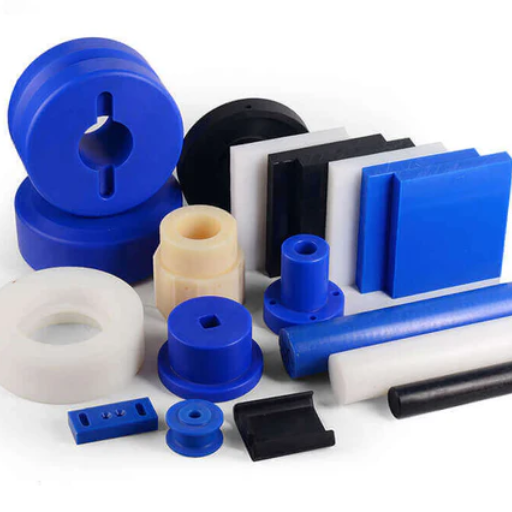

Introduction to POM Material

Introduction to POM Material
Introduction to POM Material

Polyoxymethylene (POM) is an engineering thermoplastic that is highly efficient for its mechanical properties, such as strength, stiffness, and dimensional accuracy. It is known as a class of acetal resins and is most often used in applications that require accuracy in tools and extensive use of a few components over the lifespan. Such low friction and wear-resistant properties of POM polymer make it an apt choice for components like gears, bearings, and fastening elements. Besides this, it offers excellent mechanical properties even under several environmental conditions such as moisture, chemicals, and temperature change, which enables it to remain appropriate. These unique qualities have found major applications in POM material in high-performance application areas such as the automotive sector, electronics, and other consumer areas, among others, stating the high accuracy and reliability levels expected.

What is POM?

Polyoxymethylene (POM) is another name for the general class of highly refractive and high temperature thermoplastic, compared to others, which are also used due to their performance properties in many different applications. It is a type of polymer that has a distinct tensile and flexural stiffness associated with its plastic content. POM is a crystalline plastic made by polymerizing formaldehyde or another aldehyde, with most of the molecules in this plastic having an acetal structure, where the space of these acetal units in the polymer often has a sequence similar to that of the other group, which is enough to pass the required ratio as a testament to the crystalline structure.

POM has attained significant popularity and usage due to several characteristics, some of which are the low frictional coefficient. Particularly, the POM material has a low friction coefficient, so it resists wear, and this makes it highly suited to use in gears, bearings, and even conveying media. The material is also chemically stable and as such can be subjected to a variety of solvents, oils and greases. It is durable and can be maintained at high or low temperatures, for example, -40°C to 120°C, without alteration of its structure and hence its performance. Thus, it is safe to say that high or changing loads are no hindrance to its performance. All these, together with the ease in handling, make POM more than advantageous for use in the automotive industry, consumer electronics, and industrial production.

Types of POM: Copolymer vs. Homopolymer

Key Point

POM Copolymer

POM Homopolymer

Chemical Structure

Contains comonomers for stability

Uniform structure, higher crystallinity

Strength

Slightly lower than homopolymer

Higher mechanical strength

Dimensional Stability

Superior under moist or varying conditions

Less stable in moisture

Thermal Stability

Better resistance to thermal degradation

More prone to thermal degradation

Friction and Wear

Improved for low-wear applications

Higher wear when compared to copolymer

Machinability

Easier to machine due to lower crystallinity

More challenging to machine

Moisture Absorption

Lower absorption under humid conditions

Slightly higher moisture absorption

Chemical Resistance

Outstanding with acid or alkaline exposure

Excellent but less resistant in some cases

Cost

Generally more economical

Typically higher cost

Common Applications

Automotive, plumbing, and electrical parts

High-precision gears, industrial components

Overview of Polyoxymethylene

Also known as acetal, polyoxymethylene is an industrial thermoplastic that is internationally recognized as it has surpassing mechanical properties as well as stability. As a semi-crystalline polymer, it is applied in a variety of fields for its high strength, toughness, and wearability. The two main types of POM polymers are the homopolymer and copolymer, which have several advantages in their applications.

As a result of its high crystallinity, homopolymer POM provides greater temperature strength and stiffness than the copolymer, making it more suitable for applications requiring the highest degree of rigidity and resistance. Nonetheless, it is and depends largely on elevated temperatures in its making, being made by copolymerization in zones with high heat. Copolymer POM, on the contrary, also has merits, considering it has higher thermal stability, and has less impact of deformation over an extended period due to heating or chemical fluids. This makes copolymers especially useful in parts that have to work in a wider range of temperatures, corrosive environments, or chemical attack, especially.

One of the standout features of polyoxymethylene, also referred to as polyacetal, is its extraordinary dimensional changes that help in the manufacture of precision components in several industries, automotive, aerospace, and medical being the major. Furthermore, the material exhibits self-lubricating properties and has a low coefficient of friction, making it an ideal metallic replacement material for most applications in which free technical flight services (gears, bearings, sliding members, etc) are required.

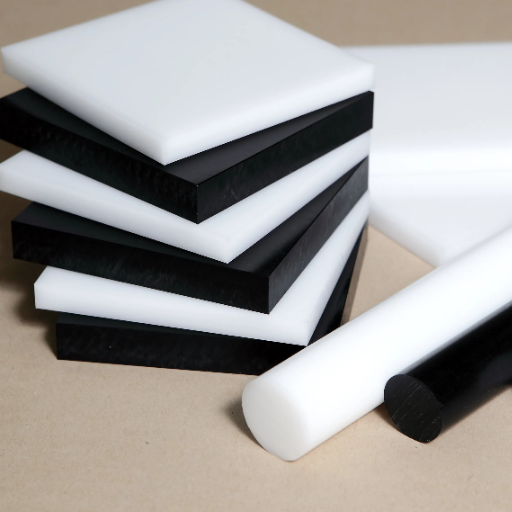

Properties of POM Plastic

Properties of POM Plastic
Properties of POM Plastic
  1. High Mechanical Strength and Rigidity
  • Tensile Strength: 60-80 MPa (depending on specific grade)
  • Flexural Modulus: 2,400-3,800 MPa
  • This material, being sandy, gets marred due to its high damping ability, and this is just ideal for carrying structural loads.
  1. Exceptional Dimensional Stability
  • On average, low mould shrinkage factors normally facilitate the production of bearing jigs whose tolerances do not shift.
  • The tight tolerances of the materials are always consistent, even when changes in the environmental conditions have occurred.
  1. Low Friction and High Wear Resistance
  • Static Coefficient of Friction against steel is typically 0.25-0.35.
  • Exhibits self-lubricating properties, ensuring reduced wear in moving parts.
  1. Thermal Stability
  • Melting Point: ~175°C (347°F)
  • Heat Deflection Temperature (HDT): 110-160°C, depending on reinforcement.
  • Retains mechanical properties within a broad range of temperatures.
  1. Excellent Chemical Resistance
  • Resistant to fuels, solvents, and not very strong acidic or alkaline solutions.
  • High resistance towards gasoline and diesel, which is why it is a preferred choice for both automobiles and industry applications.
  1. Electrical Insulation
  • High dielectric strength (>20 kV/mm)
  • Volume Resistivity: >10^13 Ω·cm, ensuring excellent insulating properties.

Mechanical Strength and Hardness

Polyoxymethylene (POM) is considered a sturdy material owing to its immense tensile strength and hardness; for instance, it is utilized in engineering and construction applications without the fear of deformation. For example, its scale of mechanical strength and rigidness is capable of managing considerable mechanical strain internally, and the structure is supported even after being subjected to harsh conditions. The hardness of the material, especially characteristically determined with a Rockwell hardness scale value of M80 to M90 for copolymer and slightly higher for homopolymer grades, helps the material resist wear and increases its lifespan in harsh industrial environments. Additionally, POM is resistant to viscoelastic deformation within the process timeframe and is effective at temperatures higher than the ambient state would suggest.

Dimensional Stability and Thermal Properties

Polyoxymethylene (POM) possesses excellent chemical properties, which is another reason for using it even in the most demanding requirements. It has a very low value to the variation of length or shape of the component in order to carry out very precise applications. It is also because the material does not absorb water, and therefore, even if the moisture content and temperatures change, the components will not warp. It is also worth noting that POM has good figure memory, which correlates with deformation memory as well. POM is known to have melting points that are between 162℃ and 177℃, but these vary according to polymer grade. This is why POM is suitable for high temperature applications for automotive and industrial sectors, such as automotive engines or industrial equipment, because its components can work under high temperatures. Lastly, the material can undergo repeated heating and cooling without undergoing structural defects or thermal expansion; thus, the dynamic operating conditions enable it to deliver high-quality service.

Molecular Structure of POM

Comprising of a structural arrangement of -CH2O- molecules, finally leading it to be categorized as a polyacetal or polyformal, Polyoxymethylene (POM) is a carbon-based plastic. The structural configuration is made up of a highly ordered array, in which methylene units and oxyether groups are joined sequentially with a few extra units. It is because of this ordered and hence crystalline structure that POM is able to attain good mechanical properties without extending significantly due to its high modulus and low creep. Moreover, the backbone is stabilized with strong covalent bonding, and in addition to chains wrapped up from Van der Waals interactions, they provide the material with a pursuit of high performance at high temperatures and also protect against solvents.

The two basic POM structures are homopolymers, composed of single identification monomer groups, and copolymers, in which a second monomer element, such as ethylene oxide, is utilized in order to enhance thermal and chemical capabilities. With such a modification of the copolymer, problems related to thermal degradation and the release of formaldehyde during its processing are reduced, making it more attractive for use in the production of gears, bearings and other precision products. Such an understanding of its molecular configuration significantly helps in the optimization of POM production and in finding ways to control its features for a specific technological need.

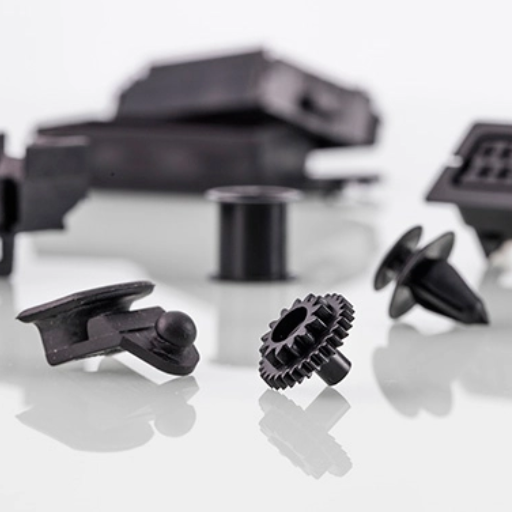

Applications of POM

Applications of POM
Applications of POM
  1. Automotive Industry

POM material is commonly employed in the production of car parts in view of its durability and resistance to wear and tear. Such parts include fuel systems, the manufacture of the car interior and exterior parts, as well as various mechanisms like raising windows, gear wheels, and the lock system among doors. An example is that, when used in making gear wheels, POM has shown a decrease in wear by as much as 50%, therefore prolonging the durability of automotive systems.

  1. Electrical and Electronics

POM is known for its great dielectric properties and heat resistance, which makes it preferable for the production of electrical connectors, switches, as well as housing used in these appliances. It never gives in under heavy loads; it gives rise to a more convenient electronic device. POM is also known for being able to withstand this and heat over long periods and is well suited to the use of such things as circuit board holders.

  1. Industrial Machinery

Low coefficients of friction and high wear resistance mean it can be used in particularly precise equipment in the form of POM. It is often found in such components as gears, bearings, portions of conveyor belts, and some parts of pumps. External studies have proven that gears made using POM crosslinking can work under similar conditions but live 30% longer than the other materials.

  1. Consumer Goods

The high tensile strength and impact resistance enjoyed by POM is also very much appreciated in the design of objects such as iron zips. Moreover, its easy sturdiness ensures that normal wear and tear will not render the object useless for a long period, e.g., such as during frequent use. It is not surprising that zips with POM added provide more durable tools when compared with the classical metal parts included zips sale.

  1. Medical Devices

The bio- and chemical inertness of POM and its ability to survive various methods of sterilization make it ideal for use in such delicate sectors as medical gadgetry, such as inhalers, pen injectors, as well as cutting tools. It adheres to tight regulatory standards since it also ensures precision when actually used.

POM in Engineering and Manufacturing

Polyoxymethylene, or simply POM, is vital in the engineering and processing communities due to its substantial strength, accuracy, and environmental safety. Those mechanical characteristics of POM have made it possible to apply it in parts and in places with high wearability and minimal distress. It is known that POM is very much in use in the production of gears, bearings, and bushings as this performs well in high wear and tear thanks to its good mechanical design. Additionally, its heat stability, resistance to humidity absorption, and water retention allow for reliable performance even in such variable conditions. Developments in the manufacturability of POM components due to their use in such areas as the automotive industry, aerospace, and electronics have led to the use of precision molding technologies in the production of POM parts with difficult configurations. The use of Pom has been made available to many other industries than previously indicated, according to the information retrieved. Such a material like Pom can be used in engineering applications and equipment maintenance practices, offering economy in the maintenance and service management of equipment and social satisfaction.

High-Performance Applications of POM Plastic

  1. Automotive Industry

Polyoxymethylene – a lot of times referred to as POM – is widely used in the automobile industry because of its exceptional abrasion resistance, as well as its ability to retain its efficiency under high temperature and mechanical pressure. Many critical elements like fuel systems, gears, and agents of transmission are often manufactured from POM, which in most cases is a cheaper, less complicated material as compared to metals, even while it is just as strong mechanically; hence, there are no significant losses in strength.

  1. Aerospace Applications

In today’s world, aerospace industries cannot survive without the right kind of materials needed to build sophisticated equipments that are light and also capable of withstanding any harsh environment. In this aspect, POM has a lot of uses in the making of actuator housings, systems, and flight control components and aircraft interiors, which contribute to better fuel economy and reduced pollution.

  1. Electronics and Electrical Components

POM, with its high electrical tolerance and temperature resistance as well as low deterioration rate, offers an insulating material for connectors, such as power and signal pins, switches, resistance sets, and other micro components, including capacitor units. Using it will provide assurance of continued operation and performance over a long period of time and this performance will increase under altered thermal and chemical conditions.

  1. Healthcare Equipment

POM’s chemical resistance and its salient mechanical properties are two factors that make it suitable for use in the field of healthcare, such as in diagnosis, surgery, and drug delivery systems. Its compatibility with human tissues enables it to be used in the production of non-invasive medical tools and equipment.

  1. Consumer Goods and Industrial Machinery

POM is applied everywhere, from the locks of the plastic zipper to the intricate belts in industry, sprocket lubricating action to satisfy the frictional requirements of a particular situation. Its ability to function with perfection within the mechanics of a machine helps in decreasing the energy consumed and escalating the productivity.

Comparative Analysis with Other Materials

Comparative Analysis with Other Materials
Comparative Analysis with Other Materials

Considering other well known thermoplastics such as polyethylene (PE) and polypropylene (PP), polyoxymethylene (POM) has considerable mechanical properties that include stiffness that are much better. These differ from PE and PP plastic materials, which are more elastic and not as stiff as POM, since they remain surprisingly stable under higher (heavier) load application as well as temperatures, and this makes them suitable for precision device applications.

Despite this, when compared to nylon (PA), POM has lower water absorption, which causes this material to retain its shape in vapor environments. Even though sufficiently durable, nylon will tend to expand accordingly and lose its shape when under the effect of moisture, a problem that pom efficiently resolves.

Lastly, unlike PolyTetraFulerine pits, which present high tensile strength compared to POM monthly, this is less in comparison with POM. PTFE surely is the best for chemical resistance but the real winner would be POM in the cases of friction resistance and bearing. In this case, therefore, modern daub mountings would be greatly enhanced where POM would be used as one of the materials.

POM vs. Other Engineering Thermoplastics

Parameter

POM

Nylon

PTFE

ABS

Polycarbonate (PC)

Tensile Strength

High

Moderate to high

Low

Moderate

High

Stiffness

High

Moderate

Low

Moderate

High

Wear Resistance

Excellent

Good

Moderate

Low

Moderate

Chemical Resistance

Good

Moderate

Excellent

Moderate

Moderate

Moisture Absorption

Very low

High

Very low

Low

Low

Heat Resistance

Up to 100–120°C

Up to 200°C

Up to 260°C

Limited (85°C–100°C)

Moderate (120°C–150°C)

Dimensional Stability

Excellent

Swells in humidity

Excellent

Moderate

Good

Machinability

Excellent

Good

Difficult

Easy

Moderate

Cost

Moderate

Low to moderate

High

Low

Moderate

Main Applications

Gears, bearings, bushings

Textiles, automotive parts

Non-stick coatings, chemical seals

Consumer goods, toys, interiors

Electronics, lenses, impact tools

Advantages of Using Acetal over Metal

  1. Lower Weight

Acetal has the advantage of being far lighter than most metals, and this is always advantageous in applications that are considered weight-sensitive, like in the manufacturing of automotive and aerospace parts. For instance, acetal has an approximate density of 1.41 g/cm³ while steel has a density of about 7.85 g/cm³. This reduction not only makes it easier to use it efficiently but also saves on the amount of energy that would have been used during the service of the acetal.

  1. Superior Machinability

When compared to metals, acetal has better machinability, ensuring much quicker and easier cutting, shaping, and drilling activities. Additionally, its low hardness and uniform material characteristics decrease the amount of wear on cutting tools, leading to shortened production periods and thus the final unit cost is reduced significantly.

  1. Corrosion Resistance

Metal parts are susceptible to corrosion or oxidation in environments that are chemically aggressive and/or have high moisture levels, whereas acetal is inert to most chemicals, including oils, fuels, and weak acids. Such considerations make acetal more suitable for materials used in moist conditions where metals disappear with time.

  1. Self-Lubricating Properties

The plastic acetal also doesn’t have a metallic structure, which can deteriorate and cause a great deal of friction, thus exhibiting low friction intrinsic to the polymer and also being self-lubricating. It thus reduces the potential of maintenance and enhances the working efficiency in the long run as it does away with the need for additional lubricants in most applications where movements are involved, such as gears, bearings, and bushings.

  1. Dimensional Stability

Furthermore, acetal stays constant despite changes in environmental conditions and is less affected by moisture and thermal conditions. On the other hand, metallic parts can expand or contract greatly with the changes in temperature, which may affect the fitting of parts, especially in critical assemblies.

  1. Electrical Insulation
On the other hand, acetal is unvaryingly a perfect electrical insulator, unlike metals that are good conductors of electricity. This is important for the use of the material in applications that involve electrical components or appliances where insulation is a requirement.

Recent Trends and Advancements in POM Technology

Recent Trends and Advancements in POM Technology
Recent Trends and Advancements in POM Technology

Polyoxymethylene, also known as POM, has experienced significant technological development in recent years, with a particular focus on enhancing its material properties and expanding its applications. In this regard, the most widely recognized trend has been the modification of certain grades of POM to enhance their thermal and mechanical properties, thereby improving resistance to more extreme environmental conditions. In addition, the last years saw the development of high-strength polymers that can be used in place of traditional polyoxymethylenes and contain much smaller amounts of volatile organic compounds(VOC) — thereof it can be seen that solvent emission problems are indeed being addressed.

One other such significant improvement introduced in the polymer is the filling of POM with additives or a reinforcing material, e.g., glass fibers, to increase its capacity for high-strength applications, as well as resistance to wear. In the course of time, POM is set to find use in prototyping and incredibly focused components due to the growing popularity of state-of-the-art methods in manufacturing, say, including 3D printing. Such innovations help to prove that POM is a dynamic material that can be adjusted and applied in the changing world of industrial development.

Innovations in POM Manufacturing Processes

In the same vein, improvements in the μCircuit making methods also went a long way in improving the performance and eco-friendliness of polyoxymethylene (POM). Chlorine being involved in the reaction helps to have a more concerted energy input, which is conducive to higher molecular weight and lower chances of warpage. Additionally, market players are shifting to environment-friendly catalysts and receptorless polymerizations that yield a less toxic work environment and meet stringent physical and environmental conditions in production.

Also, a revolution is here as far as new computing technologies are concerned, making it possible to incorporate new types of reinforcements such as carbon nanotubes and nanoclays, for example, into POM. This modification improves its weight-bearing capabilities, thermal properties, corrosion resistance in extreme conditions like aerospace, electric and hybrid locomotives design, and even high computer hdd fabrication. Apart from that, the development of hybrid injection moulding techniques has opened up new avenues for combining POM with other materials including thermoplastic polymers as well as metals, thereby making it possible to produce efficient and cost saving components that are able to perform several functions simultaneously in a shorter time scale without the need of any assembling processes. In the context of these achievements and their immediate objectives and spirit, these advancements relate to two major and merged aspects of this technology and material: present-day practices of POM manufacturing and its further development far and wide beyond its conventional applications in furthering goals of sustainable development.

The Future of POM Material in Various Industries

Customization of polyoxymethylene (POM) is quite specific, in that future improvements equally apply to the development of the component in question by using available materials and the external market pressure. Parts such as the fuel systems, transmission components, and a few passive safety parts have always been designed to incorporate POM due to its exceptionally high stiffness-to-weight ratio and hence weight-saving benefits. In addition, POM is one of the best-suited materials for electronic components in terms of its very low moisture absorption, low water vapor permeation characteristics, low friction, and excellent dimensional stability during molding and service life, which is crucial for precision parts such as connectors, switches, insulating appliances, and instruments, etc.

Lastly, one of the major changes that will define the future of POM lies in how environmental problems, especially with regard to the depletion of natural resources and the misuse of energy, are addressed. In short, more and more environmentally friendly POM products are being promoted, and the pursuance of sustainable development does not aim to alter the properties of the materials. With the onset of these materials, the demand for ‘organic’ corrosion-free coatings is becoming less apparent, but the market for other specific industrial coatings that require high-performance POM coatings is growing. This is due to the rising focus on products developed for end-use applications and environments such as medical devices, renewable power systems, and biomedical implants, which demand the use of POM tailored to niche applications.

Reference Sources

1. Polyoxymethylene (POM) Integrity and Processing Methodology: This study explored how POM material properties are influenced by geometries and processing methods, particularly injection molding. It found that higher tonnage injection molding results in better thermal stability and less degradation compared to lower tonnage or resin geometries.Read Full Study

2. Design of Special Plastic Bearings for Renewable Energy Systems: This research focused on designing POM-based bearings for renewable energy systems like tidal current turbines and wind turbines. POM bearings demonstrated excellent corrosion resistance, low friction, and high compressive strength, making them suitable for marine environments.Read Full Study

3. Influence of Ground Material Percentage on POM Shrinkage: This study examined how varying percentages of ground POM material affect the shrinkage of injection-molded pieces. It found that higher percentages of ground material reduce both longitudinal and transverse shrinkage, with transverse shrinkage being consistently greater.Read Full Study

Frequently Asked Questions (FAQs)

Q: What is POM material?

A: POM material, also known as polyoxymethylene or acetal, is a thermoplastic used for its excellent mechanical properties. It is characterized by its high strength, stiffness, and resistance to wear and fatigue. POM is commonly utilized in precision parts that require tight tolerances, making it an ideal choice for automotive, aerospace, and consumer products. Its low friction coefficient also enhances its performance in moving applications. Additionally, POM can be processed through various methods such as injection molding and extrusion, allowing for versatile manufacturing options.

Q: What are the benefits of using POM material?

A: Using POM material offers numerous advantages, including high durability and dimensional stability. Its resistance to chemicals and moisture makes it suitable for various environments, particularly in automotive and industrial applications. POM’s excellent surface finish and low friction properties enhance the performance of components like gears and bearings. Furthermore, it is lightweight, which contributes to overall energy efficiency in product design. The ability to withstand repeated stress without deformation is another key benefit, allowing for long-lasting applications.

Q: What applications commonly use POM material?

A: POM material is widely used in a variety of applications due to its unique properties. It is often found in automotive components, including fuel systems and interior parts, due to its strength and chemical resistance. In consumer products, POM is used in kitchen appliances, toys, and electronic housings. Additionally, POM is utilized in industrial applications for manufacturing gears, bearings, and fasteners. Its versatility also extends to medical devices, where precision and reliability are crucial. Overall, POM’s application range is broad, making it a vital material in modern manufacturing.

Q: How does POM material compare to other plastics?

A: POM material stands out when compared to other plastics like PVC or polypropylene due to its superior mechanical properties. While PVC is more flexible and less expensive, it lacks the strength and durability that POM offers. Polypropylene is lightweight and resistant to fatigue, but POM has a much lower friction coefficient, making it a better choice for high-wear applications. Additionally, POM’s resistance to chemicals and moisture often surpasses that of many other plastics. This makes it a preferred material in environments where mechanical integrity is essential, highlighting its competitive edge in various industries.

Q: Is POM material environmentally friendly?

A: POM material, like many plastics, raises environmental concerns regarding its production and end-of-life disposal. However, advancements in recycling technologies are making it possible to recycle POM, reducing its environmental footprint. Biodegradable alternatives are being explored, but POM itself is not naturally biodegradable. Manufacturers are increasingly focusing on sustainable practices, including using recycled POM in production. While POM is durable and long-lasting, responsible management of plastic waste remains crucial for environmental sustainability. Overall, the environmental impact of POM largely depends on the practices implemented during its lifecycle.
