Guide to HDPE Injection Molding: The Complete Injection Molding Process

High-Density Polyethylene (HDPE) is a versatile thermoplastic polymer used in many industries due to its amazing strength-to-density ratio, chemical resistance, and low price. Packaging materials and industrial parts are just some of the durable and complex components HDPE can be manufactured into through a very precise process called injection molding. This guide explores and explains the entire HDPE injection molding process to make manufacturers, engineers, and professionals form the industry aware of the critical steps, relevant concerns, and injection molding best practices. This essential technique can be mastered for production optimization, developed for common challenge troubleshooting, or simply expanded on beyond understanding with the insights provided within this guide.

What is HDPE Injection Molding?

Injection molding is one of the processes that can be used to create parts from HDPE. This polymer is high density and thermoplastic, meaning it can be melted down. The process starts with heating propane and putting it into a customized shell to later cool and capture the desired shape. After cooling, the shell can be removed to reveal components that can be utilized throughout the packaging, automotive, and consumer goods industries. Products manufactured using this method of construction possess many necessary attributes such as structural integrity, dependability, and flexibility.

Understanding the Injection Mold

An essential part of the process is the injection mold. The injection mold is made with a number of parts that are very accurately manufactured to shape materials like HDPE accurately. It usually includes the mold base, cavities, and core components. The base section holds the structure of the mold, and also contains the cavity and core which together give shape to the intended product. These parts are created with special attention to mitigation of material shrinkage in order to increase accuracy after the part has cooled and shrunk.

Also, modern injection molds have specially designed advanced cooling channels for the temperature control process that need to be followed to improve efficiency in production and cut down on material warping. Some injection molds also include hot runner systems that prevent unwanted excess material by keeping the polymer in a molten state in the flow channels and not in the runners or sprues. These changes are great examples of precision engineering innovations that advance productivity in high demand sectors.

How Does the Injection Molding Process Work?

The injection molding process begins with the preparation of raw polymer material. This is usually provided in the form of small pellets or granules and entails several stages which are designed to be tightly controlled to yield repetitive and exact results. Initially, the pellets are placed in a barrel that is pre-heated in an intermediate zone. The heating elements and a screw rotation transforms the polymer pellets to a viscous, flowable state. Afterward, the molten material, now in a viscous state, is placed under high pressure and injected into a metal mold cavity. This stage is the most crucial because if the material does not fill the cavity completely and take the exact shape of the mold, then all would be lost.

Lastly, after cooling has begun the material hardens to create the solid part. Cooling of the part is achieved by using the mold which contains strategically located channels for circulating the coolant. Commonly used coolants like water maintain uniform temperatures which decrease cycle time and also prevent deformation.

When the part is fully solidified, the mold opens and an ejection mechanism using pins or air, extract, ejects the part from the cavity. If the prescribed configuration of the mold is attained, then the material like sprues or runners can be trimmed or recycled. Some advanced injection molding systems incorporate sensors and automation able to check and change in real-time other system parameters such as pressure, cooling time, and material flow. This Integration facilitates accuracy, decreases errors, and enables mass manufacturing, which makes injection molding a crucial technique of production for all automotive, medical, and consumer goods industries.

Key Properties of HDPE

HDPE, or High-Density Polyethylene, is a tough and long-lasting thermoplastic. It is formable, and known for having the best chemical resistance along with durability in its class. HDPE possesses an impressive ranking of tensile strength, where it’s usually between 25-40MPa. Its density range from 0.93 to 0.97g/cm³ gives it the spot of being lighter than most polymers. It also has some of the highest resistance to impact and cracking, even in low temperatures. Because of these reasons, HDPE is used for environmental harsh conditions.

HDPE’s recyclability provides preference in industries where renewability holds value. It is preferred in construction and the automotive industry because it is multifunctional. Ready to use for chemicals and pharmaceutical storage because of its outstanding resistance to hydrocarbons, acids and bases. Has a low mass melting point of 120℃ to 140℃, which refers to its capability of withstanding high temperatures. Its low permeability to moisture and gases makes it effective in housing tools. This polymer is ideal for high-performance situations due to its ability to hold up against stress and to remain effective over time.

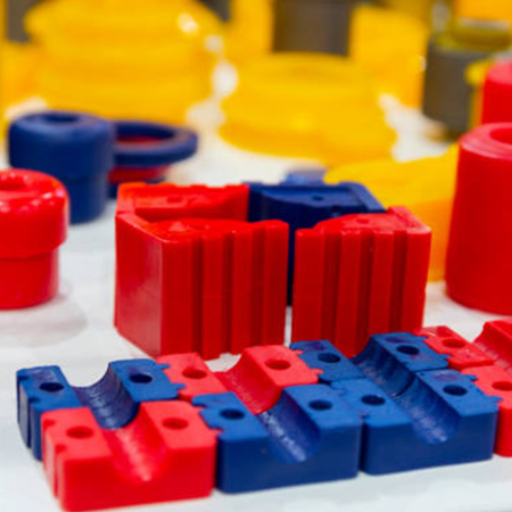

What are the Advantages of HDPE in Injection Molding?

1. Durability: HDPE increases the strength to weight ratio, meaning that the polymers becomes even lighter without losing its strength.
2. Cost-Effectiveness: Lower melting temperature leads to faster cycle in the molding processes, directly reducing the time and energy used for production.
3. Chemical Resistance: Has a large range for chemical resistance, making it easier for use around the industrial side and consumer angle.
4. Flexibility in Design: HDPE can be molded into intricate designs which allows high construction complexity with precision.
5. Recyclability: Its modern day standards of environmental protection makes failed attempts of stopping its recyclability problematic.

Cost-Effective Solutions with HDPE

Due to its benefits and economic efficiency, High-Density Polyethylene (HDPE) remains a leader concerning material selection across industries. For example, the low production costs of HDPE relative to other metals or specialized materials is beneficial. Operators seeking to optimize costs while maintaining quality will find it appealing. In addition, HDPE’s wear and tear durability reduce long-term repair and replacement servicing costs, which is advantageous.

Innovative technologies such as advanced catalysts and polymerization techniquies are remarkably shifting the HDPE manufacturing processes; this revolution offers performance optimization while keeping costs down. These tweaks allow for the crafting of low-weight, high-strength components tailored for demanding surroundings. In addition, the recyclability of HDPE significantly cuts expenses linked with waste management, promoting lower-cost and eco-friendly practices throughout the material’s life. The combination of these environmental and economic factors enhance their reputation as a premier option to industries focused on budget and needing efficiency.

High-Quality HDPE for Durable Plastic Parts

The superiority of HDPE’s mechanical properties along with its ease of adaptability has made it the material of choice across many industries. The lightweight but strong framework of the HDPE makes it tough in applications like industrial parts, agricultural tools, and even in some household products. In extreme and constantly mechanically stressed environments, HDPE’s remarkable impact, abrasion, and chemical resistance makes it one of the best options. Furthermore, its low water absorption rate combined with exceptional thermal stability makes it even more useful in manufacturing. Formulations now offer advanced HDPE with enhanced mechanical performance and compatibility with various fabrication techniques like injection molding, extrusion, and 3D printing. These techniques allow precision and improved efficiency, enabling manufacturers to produce strong, enduring plastic components built to precise design standards.

Chemical Resistance of HDPE

High-density polyethylene (HDPE) has exceptional resistance to chemicals, making it useful where weak/strong chemicals are present. It is resilient to strong acids, bases, and even organic solvents claiming a spot in both corrosive substance storage and transport. An example of its resistance is the stability of HDPE when exposed to concentrated hydrochloric and sulfuric acids as well as sodium hydroxide. HDPE withstands these harsh chemicals without significant damage.

Moreover, the chemical structure of HDPE limits solubility towards polar solvents such as alcohols and water solutions which allows HDPE to retain its superior performance. It is important to mention that aromatic hydrocarbons and chlorinated solvents will slowly cause irreversible swelling and deterioration, but compared to other polymers, the rate of susceptibility is low. With its lightweight features and cost-efficiency, HDPE is continuously used in both industrial and private sectors.

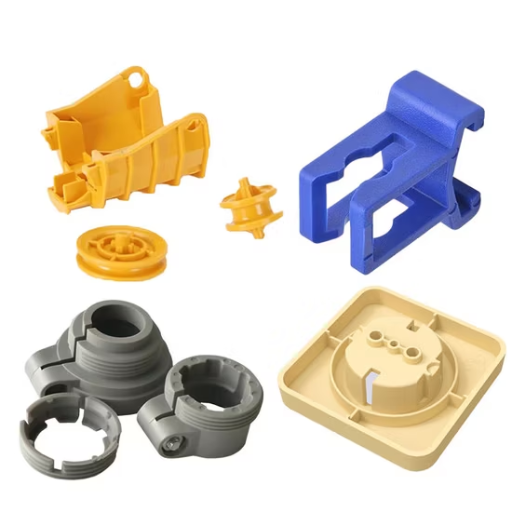

What are the Disadvantages of HDPE Injection Molding?

The vast advantages provided by HDPE injection molding come hand in hand with a list of disadvantages such as:

• Lower Heat Resistance: HDPE cannot be employed in high temperature settings because it has a lower melting point compared to other thermoplastics.
• Limited Structural Strength: While HDPE offers considerable mechanical strength, it may not be enough for applications that involve heavy loading.
• Surface Finish Challenges: If the injection molding cooling systems are not tightly controlled, parts may experience warping or lose surface detail during cooling, resulting in sub‐assembly out of specification components.
• Environmental Sensitivity: Without the addition of UV stabilizers, prolonged exposure to UV light would result in environmental deterioration, accompanied by extreme weather conditions.
• Shrinkage: During the molding step, HDPE items are susceptible to shrinkage, which may result in precise cutoff dimensional inaccuracies.

To mitigate slipping on the HDPE material, these rigid boundaries are critical to ensure the material is applied correctly for every manufacturing process.

Common Defects in HDPE Parts

The affordability and resilience of components manufactured from high-density polyethylene (HDPE) render it favorable, but the material is not exempt from a list of critical defects ones encounter during fabrication. Such defects result in diminished functionality and durability of the resulting HDPE product. Take note of these defects that manufacturers tend to ignore:

• Warping: This defect is a result of molded parts cooling unevenly. With time, internal stresses build up and physically distort the part. This can be solved by controlling the cooling rate and overall thermal environment.
• Sink Marks: Indents leading to voids or unevenness on part surfaces known as “sink marks” occur as a result of a few different factors such as too low packing pressure during molding, wall thickness variation, etc. Avoid reduced cycle times in combination with improved geometric delivery, and these issues become manageable.
• Brittleness: Components which have too low molecular orientation or poorly performed annealing tend to have brittle parts that fail easily under stress. These factors stem from improper material selection and inadequate action taken post-processing.
• Surface Delamination: This defect that leads to surface peeling/flaking layers occurs due to the presence of foreign materials or additives that are not compatible with the HDPE blend. Strict control of material cleanliness and compatibility is critical to mitigate this problem.

Coming up with solutions to such problems requires first understanding the nature of the material in question and its behavior during production. One may employ sophisticated tools and methods which include CAD (Computer Aided Design) simulations alongside actual process monitoring to achieve reliable results on the level of quality control and defect prevention.

Limitations of HDPE Material

Though it seems highly accessible, versatile use of HDPE (High-Density Polyethylene) comes with a set of constraints that particularly need to be kept in mind when choosing it for specific tasks. As a constraint, the upper temperature limit withstanding is quite low. High-Density Polyethylene starts to soften at 212°F (100°C) which means anything above that will make it unsuitable for high temperatures or anything that require heat resistant capabilities. Also, the HDPE will become brittle and lose its strength and longevity beyond plastic life without being treated due to UV radiation that is used to soften plastics.

Mechanical properties also present another problem under specific situations. Even though HDPE is generally accepted for impact resistance, it tends to become brittle at very low temperatures, which is a consideration for outside use or using in cold countries. In addition to the above, HDPE has poor resistance to some oxidizing chemicals because they can weaken the material and its capabilities.

Despite being one of the advantages of HDPE, recycling and reusability are problematic at the same time. The material’s recycling potential can be lowered when contaminated, mixed with non-compatible plastics, which lower its recycling value and the quality of the end product. Moreover, the resistant surface of HDPE makes it difficult to bond with paints causing extra expense on surface treatment to make the adhesives more suitable.

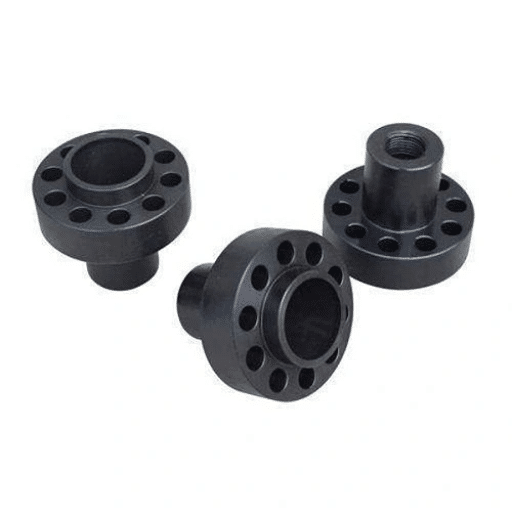

What are the Applications of HDPE Injection Molding?

HDPE injection molding is useful in various fields because of its strong nature, flexibility, and impact resistance. Some of the most relevant uses are:

• Packaging: Formation of food, beverages, and household item containers, caps, and bottles take place owing to its lightweight and non-toxical properties.
• Automotive Parts: Components such as dashboards and fuel tanks which require high impact and tensile strength are also manufactured from HDPE.
• Piping Systems: Fabrika pumps and fittings, especially for the transport of water and gas, because of its resistance to corrosion and durability
• Household Items: Storage containers, furniture, and cutting boards which require a durable and easy to clean material are made using HDPE.

Such possibilities highlight the versatility of HDPE in serving industrial and consumer requirements.

Industrial Applications of HDPE Injection Molding

The industrial applications of HDPE (High-Density Polyethylene) injection molding are vast and its automotive branches are resourceful, precise and economical. A primary application is in automotive manufacturing where HDPE measures lightweight and tough. It creates durable parts including fuel tanks, interior panels and protective covers. Its impact resistance and chemical stability make it ideal for operational conditions.

Perhaps one of its most important uses is in packaging where HDPE is made into containers, drums, and pallets for food grade as well as dangerous goods storage. It is often employed due to its non-reactive capabilities, which make it safe and compliant with golden standards in the pharmaceutical and agricultural industries.

HDPE injection also services the construction industry which includes making underground utility conduits, geomembranes, and fittings for pipes. These items are highly beneficial because of HDPEʼs great quality in tensile strength and its resistance to environmental stress cracking, ensuring long life in life cycle in harsh locations.

Lastly, HDPE molded items are becoming increasingly popular in telecommunications for insulation of cables and protective sheathing due to added moisture, ultraviolet radiation, and chemical surge resilience. It is clear from the variety of uses and outstanding results of HDPE through injection molding, that it is critical for industrial processes today.

Medical Device Applications using HDPE

Due to the overlapping benefits of strength, chemical resistance, biocompatibility, and careful monitoring, HDPE is popular in medical devices. Nonporous products pose lower exposure to contamination, making them more efficient in clean surroundings. Example products are surgical trays, medical storage containers and implantable elements such as tubes and catheters.

Another key benefit is the relevance of USP Class VI and ISO 10993 regulatory standards. HDPE is compliant with these standards ensuring safe human material interaction for medical grade functions. In addition, the endurance of HDPE to repeated AGQ, gamma, or steam sterilization cycles ensures reliability and trust and lowers waste. Recently developed technologies in the area of injection molding made it possible to produce very detailed medical parts to tight tolerances which is crucial for a lot of surgical and diagnostic devices.

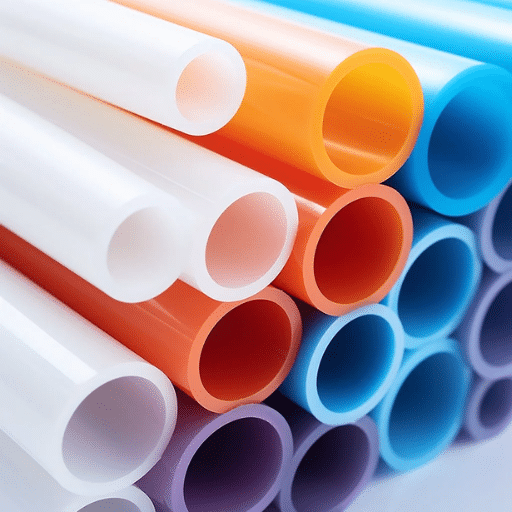

What are the Key Processing Conditions for HDPE Injection Molding?

1. Melt Temperature: With regard to the specific quality and use of the polymer, the recommended melt temperature HDPE is set between 356°F and 536°F (this is 180°C and 280°C). Observance of the value of this temperature is very important to prevent overheating.
2. Mold Temperature: Exact part dimensional accuracy requires mold temperature from 68°F to 131°F (20°C to 55°C) for part shrinkage and finish.
3. Injection Pressure: What is typically used is a pressure range of 800 to 1,500 bar. This varies on the shape and thickness of the part to make sure there is proper cavity filling without creating any defects.
4. Cooling Time: Cooling time for HDPE needs to be controlled to minimal warping, and enable reaching of final strength, dimensions, and shape. In this case, it depends on the wall thickness and the design of the mold.
5. Drying Requirements: It is good practice to ensure the HDPE resin is dry before processing despite having low moisture absorption. This avoids any defects associated with contamination using different forms of moisture/ humidity.

To ensure production consistency, quality, and efficiency, these conditions need to be systematically customized for each HDPE grade and tailored based on the intended end product.

Understanding Melt Temperature and Injection Pressure

The relationship between melt temperature and injection pressure is essential in HDPE products to preserve quality and structural integrity. Melt temperature, or the polymer’s melt point, affects the viscosity, flow rate, and intricate filling ability of the mold designs. In most instances, HDPE requires a melt temperature of 180°C to 280°C. This range hinges on the grade alongside additives used. Adequate consistency of melt temperature guarantees material uniformity and melts-free resin. Under-melted resin can result in weak weld lines or incomplete fills.

Also, retention of injection pressure determines the degree of mold cavity filling by the molten polymer and the respective detailed shape semi-finished components. Average pressure intervals are between 800- 1,500 bar. This, however, is subject to the part’s wall thickness and mold complexity. Low injection pressure leads to short shots and voids while too much pressure causes residual stress on the part. Striking the perfect equilibrium improves production efficiency while minimizing warping, sink mark indentations, and deteriorated dimensional precision. Strict adherence to material characteristics alongside calibrated equipment enhances consistency in quality.
