Polycarbonate vs ABS: Engineering Selection Guide

The design team at Apex Electronics needed to choose their new industrial controller housing material because that choice would decide the product’s ability to function in the field during its entire ten-year service life. The controller would need to withstand tool and equipment impacts, which would occur during its operation in manufacturing environments. The system would reach its highest operating temperatures of 95°C during the summertime. The project budget required the team to handle material costs with strict financial control.

The lead engineer recommended polycarbonate (PC) because its impact resistance and heat tolerance would protect the system from field operational failure. The procurement manager pushed for ABS because this material offered a 40% cost saving, which would boost profits on products that would sell in large quantities. The team selected a third material option after testing both materials in simulated field conditions because they required a PC/ABS blend that met their impact resistance needs within their budget limits.

The process of selecting thermoplastics for challenging uses requires experts to understand their technical requirements. The polycarbonate vs ABS decision is rarely about finding a single “best” material. It is about matching material capabilities to application requirements while balancing performance, cost, and manufacturability. We have supported engineering teams in both automotive and electronics and industrial sectors by providing these materials to them for more than 600 specification decisions.

The guide explains how polycarbonate and ABS possess different technical properties, which enable their use in various high-performance applications through specific branded grades. The guide explains how to choose between pure materials and PC/ABS blends while showing which tests need to be done when obtaining resins from China.

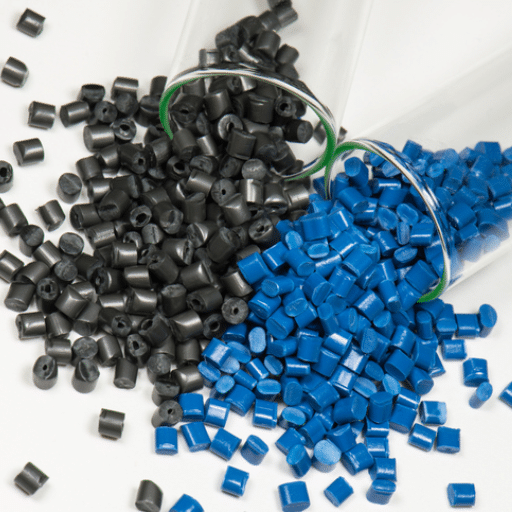

What Are Polycarbonate and ABS?

Polycarbonate (PC) Overview

Polycarbonate exists as an amorphous thermoplastic polymer, whose industrial production originates from bisphenol A and phosgene. The material achieves exceptional impact resistance and optical clarity through its molecular structure, which connects carbonate groups by aromatic ring structures. PC transmits 88–90% of visible light, which approaches the clarity of acrylic, while it provides impact strength that exceeds glass by 250 times and ABS by 3–4 times.

Key characteristics of PC:

• Impact strength: 600–850 J/m (Izod notched)
• Heat deflection temperature: 125–140°C at 1.8 MPa
• Tensile strength: 65–70 MPa
• Natural transparency with 88–90% light transmission
• Self-extinguishing flame behavior (UL94 V-0 and V-2 ratings available)
• Density: 1.20 g/cm³

The material was originally developed in the 1950s for aerospace and military applications requiring transparent, impact-resistant glazing. Today, major brands include Covestro Makrolon®, SABIC Lexan®, and Mitsubishi Chemical’s PC grades.

ABS Overview

Acrylonitrile Butadiene Styrene (ABS) is a terpolymer combining three distinct monomers. Acrylonitrile provides chemical resistance and heat stability. Butadiene contributes impact strength and toughness. Styrene delivers processability, rigidity, and surface finish quality. This combination produces a versatile engineering plastic that balances performance with cost efficiency.

Key characteristics of ABS:

• Impact strength: 200–300 J/m (Izod notched), good, but significantly lower than PC
• Heat deflection temperature: 80–100°C at 1.8 MPa
• Tensile strength: ~48 MPa
• Opaque with excellent surface finish for painting/plating
• Lower density: 1.04–1.08 g/cm³ (lighter than PC)
• Easier processing at lower temperatures

ABS dominates consumer electronics, automotive interiors, and appliance housings where cost efficiency matters and extreme impact resistance is not required. Major brands include CHIMEI POLYLAC®, Styron (Trinseo), and SABIC Cycolac®.

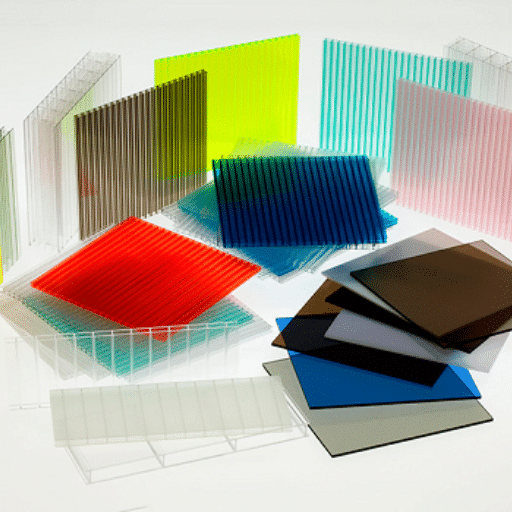

Side-by-Side Property Comparison

Mechanical Properties

The impact resistance differential is particularly significant. Polycarbonate’s 600+ J/m impact strength makes it virtually unbreakable in most industrial and consumer applications. ABS at 200–300 J/m offers adequate toughness for everyday use but will crack or fracture under severe impact loads that PC would survive.

Thermal Properties

This temperature differential drives many application decisions. Automotive underhood components, high-power electronics housings, and appliances with heating elements often require PC’s heat resistance. Interior automotive trim, consumer electronics, and room-temperature applications can utilize ABS effectively.

Optical and Surface Properties

Polycarbonate:

• Transparent: 88–90% light transmission
• Can be produced in optical clarity grades for lenses and glazing
• Glossy surface finish
• Scratches easily, requires hard coating for display applications
• Cannot be polished to restore clarity once scratched

ABS:

• Opaque (0% light transmission in standard grades)
• Excellent surface finish for painting, plating, and texturing
• Better scratch resistance than PC
• Available in wide range of colors and surface effects
• Superior adhesion for coatings and decorative finishes

Chemical and Environmental Resistance

PC’s sensitivity to alkaline environments is a critical limitation. Cleaning agents, certain detergents, and alkaline processing environments can stress-crack or degrade polycarbonate. ABS handles alkaline exposure better but suffers rapid UV degradation without stabilization.

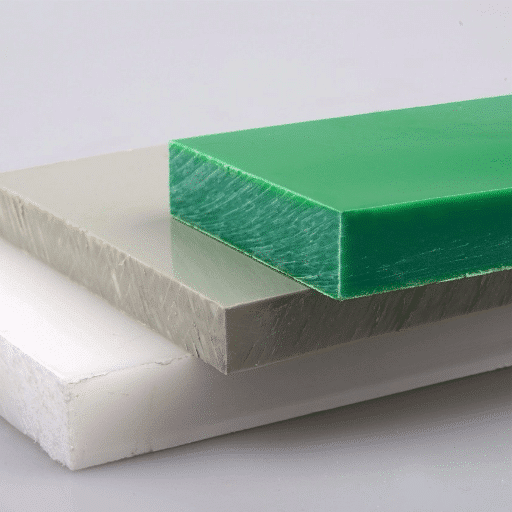

When to Choose Polycarbonate

Primary Selection Criteria

Specify polycarbonate when your application requires:

1. Impact resistance is critical, Safety equipment, protective covers, drop-prone devices
2. Heat exposure exceeds 100°C, Underhood automotive, high-power electronics, heated appliances
3. Optical transparency required, Lenses, display covers, sight glasses
4. Safety/liability concerns dominate, Medical devices, safety equipment, child-resistant packaging
5. Flame retardancy required, Electrical enclosures, public infrastructure, transportation

Specific Applications

Automotive Lighting and Glazing: Headlight lenses taillight covers and sunroof components use PC materials which combine optical clarity with impact resistance and UV-stabilized grades (Covestro Makrolon 2407).

Safety Equipment: Face shields and safety goggles plus helmet visors use PC materials which provide optical clarity and impact resistance according to safety standards.

Medical Devices: Surgical instrument housings and drug delivery devices plus sterilizable components use medical-grade PC (Covestro Makrolon Rx series) which maintains its properties during autoclave testing.

High-Heat Electronics: Power supply housings and industrial control enclosures plus LED lighting fixtures use PC material because it provides better heat resistance than ABS.

Recommended PC Grades

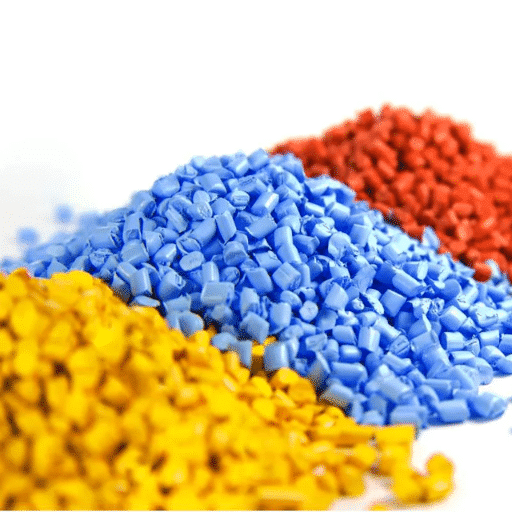

When to Choose ABS

Primary Selection Criteria

Specify ABS when your application allows:

1. Cost is primary constraint, ABS costs 30–50% less than PC
2. Operating temperature under 85°C, Consumer electronics, interior applications
3. Opaque finish acceptable, No transparency requirement
4. Complex geometries requiring easy flow, Thin walls, intricate details
5. Painting, plating, or decorative finish required, Superior surface adhesion

Specific Applications

Consumer Electronics Housings: TV cabinets, laptop chassis, keyboard enclosures, and phone cases dominate ABS consumption. The material allows processing to create complex shapes which achieve perfect surface quality needed for painting and texturing.

Automotive Interior Trim: Dashboard components, door panels, and trim pieces use ABS for cost efficiency, weight reduction, and surface quality that accepts paint or chrome plating.

Appliance Housings: Vacuum cleaners, coffee makers, and small appliances specify ABS for cost-effective production of attractive, durable enclosures.

Toys and Recreation: LEGO bricks serve as the most recognized application of ABS because they showcase the material’s ability to withstand heavy use while maintaining its original color and precise shape throughout large-scale manufacturing.

Recommended ABS Grades

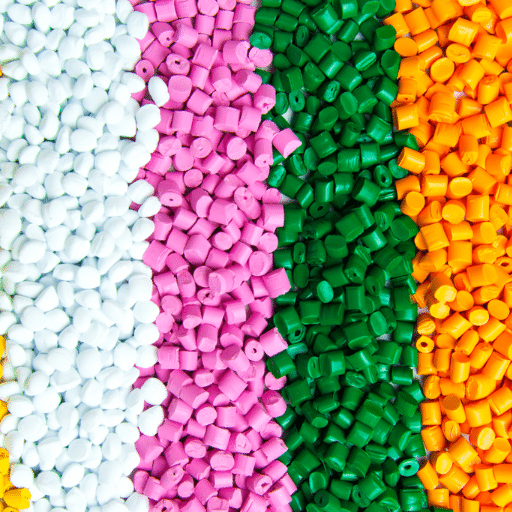

The Middle Ground: PC/ABS Blends

Why Blend PC and ABS?

PC/ABS alloys combine the strengths of both materials while mitigating their individual weaknesses:

• PC contributes: Impact resistance, heat tolerance, flame retardancy
• ABS contributes: Processability, cost reduction, surface finish quality
• The blend delivers: 2–3× better impact than ABS, easier processing than pure PC, 20–30% cost savings versus pure PC

Covestro Bayblend Series

Covestro’s Bayblend® line represents the industry standard for PC/ABS blends, with grades optimized for specific application requirements:

The T65 grade serves as the workhorse for electronics and business equipment housings, delivering sufficient heat resistance for most electronic applications with excellent processability and surface finish.

When to Specify PC/ABS Instead of Pure Materials

Choose PC/ABS blends when:

• Heat requirements exceed ABS limits (85°C+) but pure PC is cost-prohibitive
• Impact resistance must exceed ABS capabilities but optical clarity is not required
• Automotive interior components need heat resistance, impact strength, and paintable surface
• Electrical enclosures require UL94 V-0 flame rating with better processability than pure PC

When Apex Electronics selected a Bayblend T65 equivalent for their industrial controller, they achieved the 95°C heat resistance their application required while maintaining a cost structure that supported competitive product pricing.

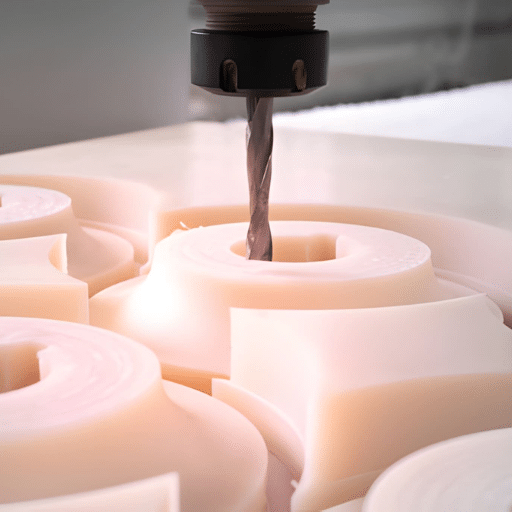

Processing and Manufacturing Considerations

Injection Molding Parameters

PC’s higher processing temperatures require more robust equipment and longer cycle times than ABS. The material also requires thorough drying, moisture causes bubble defects and hydrolytic degradation during processing. ABS processes more forgivingly with wider parameter windows and faster cycle times.

CNC Machining Differences

ABS machining:

• Cuts easily with standard tooling
• Stable dimensional accuracy
• Lower tool wear
• Minimal risk of stress whitening
• Excellent for complex geometries

PC machining:

• Requires sharp cutting tools
• Prone to stress cracking if not properly supported
• Higher cutting forces and tool wear
• Can develop internal stresses requiring annealing
• Scratches easily during handling

Surface Finishing

ABS advantages:

• Superior paint adhesion without primer
• Excellent for chrome plating and metallization
• Wide range of textured finishes available
• Easy to solvent-bond and weld

PC considerations:

• Requires UV coating for outdoor durability
• Hard coating needed for scratch resistance in display applications
• Can be polished to optical clarity (if not scratched)
• More challenging to paint, surface treatment often required

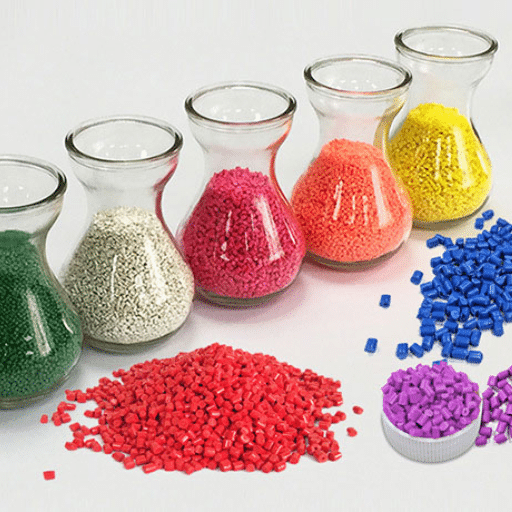

Cost Comparison and Sourcing

Material Cost Comparison (2026 Estimates)

These price differentials make ABS the default choice for cost-sensitive, high-volume applications. However, the “cost” of material selection must include downstream factors: warranty claims from field failures, liability exposure from safety incidents, and production yield differences.

A failed ABS housing in a critical application can cost far more than the PC upgrade would have added to the bill of materials.

Sourcing from China: What to Verify

When sourcing PC or ABS resin from China, the Certificate of Analysis (COA) verification process is essential:

For PC grades:

• Verify melt flow index matches specification (e. g., Makrolon 2805: ~10 g/10min at 300°C/1.2kg)
• Confirm light transmission percentage for optical grades
• Check Vicat softening temperature
• Validate lot number format against manufacturer standards

For ABS grades:

• Verify MFR falls within grade specification (e. g., CHIMEI PA-757: ~1.8 g/10min at 200°C/5kg)
• Check impact strength values (Izod notched)
• Confirm heat deflection temperature
• Review surface gloss measurements for appearance-critical applications

Documentation package requirements:

• Manufacturer-issued COA (not supplier-generated)
• Material Safety Data Sheet (MSDS)
• Commercial invoice specifying brand and grade
• Applicable compliance certificates (UL94, FDA, RoHS)

Yifuhui Sourcing Advantage

For international buyers, China-based sourcing of branded PC and ABS offers competitive pricing combined with access to Asia-Pacific brand grades:

• CHIMEI POLYLAC grades: Taiwan-origin ABS with excellent surface quality
• Covestro Bayblend: German-engineered PC/ABS blends manufactured in Asia-Pacific facilities
• 25kg MOQ: Trial quantities for R&D and qualification without volume commitment
• Port of Shanghai: 7–14 day lead times to major international destinations
• Full COA documentation: Every batch traceable to manufacturer records

Conclusion

The decision between polycarbonate and ABS material selection depends on which material attributes best meet the needs of specific applications. ABS works best for applications that require cost efficiency and moderate temperature performance because its processing abilities and surface appearance characteristics help manufacturers produce their goods more efficiently. The required capabilities of impact resistance, heat resistance, and optical clarity make polycarbonate the only suitable solution.

PC/ABS blends like Covestro Bayblend T65 provide the best solution for most applications that need to find a midway between two extremes. Users achieve three times greater impact strength than ABS while gaining heat resistance above 100°C and various flame retardant choices, all while keeping the same processing ease and production costs that resemble ABS instead of pure PC.

You must confirm that your supplier delivers manufacturer-issued COA documentation that connects to specific production lots when you select either material. Distributors who meet qualification requirements provide access to 25kg minimum order quantity, which allows proper material qualification without any risk of carrying excessive inventory.

Frequently Asked Questions

Can ABS be used outdoors?
The standard ABS material fails to maintain its properties because ultraviolet light breaks down its structure, which results in yellowing and brittle behavior after several months. For outdoor applications, UV-stabilized ABS grades together with PC/ASA blends or painted/coated ABS products should be used. CHIMEI provides UV-stabilized products that serve outdoor purposes in the automotive and construction fields.

Can polycarbonate be used for food contact purposes?
Certain specific PC grades fulfill FDA standards for food contact usage. The Covestro Makrolon 2858 and Rx series products maintain FDA compliance for equipment used in food processing and medical device applications. Organizations must verify compliance according to specific grades because not every PC grade satisfies food contact standards.

What distinguishes PC 3D printing from ABS 3D printing?
The printing process for ABS requires temperatures between 230 to 250 degrees Celsius which improves bed adhesion but produces odors that need air flow. The printing process for PC uses temperatures between 270 to 310 degrees Celsius which needs both a heated enclosure and bed system yet produces parts with superior strength and heat resistance. The printing process for PC requires advanced skills to create successful results.

Can you use paint on polycarbonate surfaces?
PC surfaces need surface treatment through flame treatment or primer application before they can bond with paint. The surface energy of ABS together with its butadiene rubber content enables paint to stick to its surface more effectively. The best solution for applications that need PC impact resistance through painting processes involves using PC/ABS material blends.

Which is better for electrical enclosures?
The better material for electrical enclosures needs to be decided between the two options. The combination of ABS material and its price point serves as an adequate solution for indoor electronic use. The required materials for industrial controllers and high-heat power supplies include PC and PC/ABS blends that meet UL94 V-0 standards and Bayblend FR3010 material. The outdoor electrical enclosures require UV-stabilized PC or ASA material combinations for their construction.

Which material between ABS and PC has better recycling capabilities?
The recycling of both materials is possible, but the recycling of ABS materials has become more efficient because its recycling systems have been developed to handle large quantities of the material. PC recycling becomes difficult because of the BPA content and the requirement to keep it separate from other plastic materials. Both materials can be converted into lower-grade materials through reprocessing, but each recycling process results in a decline of their original properties.

What is the shelf life of PC and ABS resin?
Both PC and ABS materials retain their processing capabilities for 2 to 3 years when stored properly in their original containers at room temperature. PC requires more moisture control because its open containers need to be dried before their use. The material ABS needs pre-drying to produce better surface results, even though it can handle moisture without problems.

What methods can I use to stop PC material from developing stress cracks?
The exposure of PC material to specific chemicals and the failure to process it correctly lead to stress cracking issues. The prevention process requires three steps: you need to protect your materials from unsafe chemical substances and you need to dry all materials completely before you start molding and you need to create gradual changes in your product design and machining parts need to be annealed when required.
