ABS plastic, or Acrylonitrile Butadiene Styrene, has emerged as the most preferred material in a diverse range of industries owing to its remarkable strength, durability, and versatility. Its applications include automotive parts, consumer electronics, and even 3D printing, thereby making ABS a critical and essential material in today’s manufacturing world. The selection of the melting point of the material is one of the determining factors in product and component manufacture, thus, one must know the melting point of the material very well. The reason behind it is that the melting point affects the processing of the ABS and consequently the quality of the final product.
Introduction to ABS Plastic

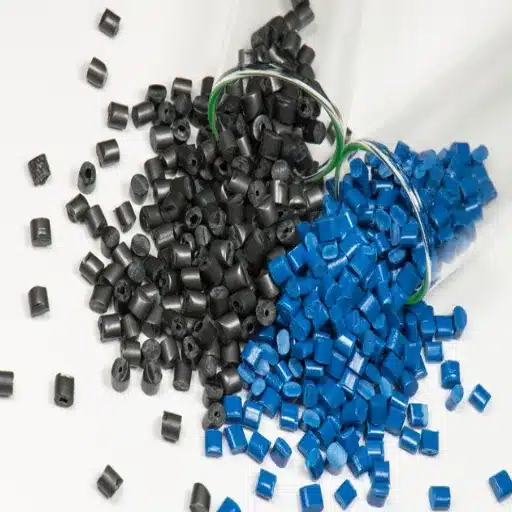

What is Acrylonitrile Butadiene Styrene?
Acrylonitrile Butadiene Styrene, or ABS, is a thermoplastic polymer known for its remarkable mixture of properties, such as strength, stiffness, and impact resistance, which are already above the average. The polymer consists of three subunits (monomers): acrylonitrile, which improves the resistance of the material to chemicals and heat; butadiene, which adds to the toughness and impact resistance of the master batch; and styrene, which supplies smoothness and rigidity to the blend.
Key Components of ABS:
- Acrylonitrile: Improves chemical and heat resistance
- Butadiene: Enhances toughness and impact resistance
- Styrene: Provides smoothness and rigidity
Properties of ABS Plastic Material
ABS plastic is renowned for its property mixtures which make it very versatile and hence widely used in innumerable applications. One of its most remarkable aspects is the superb impact resistance; this property enables it to endure mechanical strains and quick blows without suffering major destruction. What is more, ABS has the best thermal stability and can keep its structure and functionality even at soaring temperatures.
Impact Resistance
Withstands mechanical strains and impacts without major destruction
Thermal Stability
Maintains structure and functionality at elevated temperatures
Lightweight
Ideal for industries where reduced weight doesn’t compromise durability
Chemical Resistance
Resists many acids, alkalis, and oils for extended lifespan
The plastic is moreover recognized for its machining being easy since the material can be molded, extruded, or 3D-printed into complex shapes and designs without any difficulty. From the smoothness of its surface to its excellent insulating properties, ABS keeps being the material of choice for both beautiful and useful products.
Common Applications of ABS
Owing to its exceptional durability, versatility, and ease of manufacturing, ABS is the material that is commonly used in several industries.
Melting Point Characteristics of ABS
Determining the Melting Point of ABS Plastic
⚠️ Important Note:
ABS plastic melting point is not a single, exact temperature because of its amorphous structure. Instead, the plastic becomes softer within the range of temperatures that is generally between 105°C and 160°C (221°F to 320°F).
The melting range is above all dependent on the specific formulation and the type of additives used in the ABS material. In contrast to crystalline plastics that melt, ABS gradually becomes a rubber-like substance and consecutively a viscous liquid when high heat is applied. This thermal characteristic renders it appropriate for processes like injection molding and 3D printing, where the heating and cooling need to be very well controlled.
Factors that Influence Melting Point of ABS
1. Composition and Monomer Ratios
ABS is a terpolymer which means it is made of three different monomers: acrylonitrile, butadiene, and styrene. The proportion of each monomer is directly linked with the thermal properties of the plastic. For example, the content of acrylonitrile is higher thus the material is more heat resistant generally, while butadiene gives the property of flexibility and impact resistance. Styrene is the supplier of ABS’s smoothness as a processable material and its firmness.
2. Additives During Production
The addition of additives during production can change the thermal properties of ABS. Flame retardants, fillers, and plasticizers can be such examples whose using or not using, nature and concentration can be the factors elevating or lowering the effective melting transition of the material.
3. Environmental Conditions
The factors like surrounding temperature and long-term exposure to heat or UV radiation are the environmental factors that can impact the behavior of ABS. During the heating cycles in manufacturing or application, a slight change in the performance characteristics due to material degradation may occur.
💡 Processing Best Practices:
Based on the latest information obtained from search databases, further studies underline the need for accurate thermal control in the processing of ABS. In the case of 3D printing, it is suggested to keep the temperature range between 210°C and 250°C for the sake of stability and to avoid difficulties like warping or layer adhesion issues.
Comparison: Melting Point of ABS against PLA
In light of the above differences, the selection of ABS and PLA depend on the specific demands of the future application. ABS is the better option for hard-wearing and heat-resistant products while PLA’s lower melting point and eco-friendly character make it suitable for easy handling and non-demanding applications. The decision often boils down to whether durability or ease of use is the most important factor.
Understanding the Softening Point of ABS
What is the Softening Point?
The softening point of ABS (Acrylonitrile Butadiene Styrene) is the temperature where the material starts to change from hard, solid state to soft and rubbery. This temperature is generally around 105°C to 110°C (221°F to 230°F) for different ABS formulations. It is the starting point of thermal deformation, which is determined by the chemical structure of the material and the kind of blends used.
Temperature Ranges Summary
Softening Point
105-110°C
Melting Range
105-160°C
3D Printing
210-250°C
How ABS Begins to Soften
The softening of ABS is a heavily external heat- and material properties-influenced process. The polymer, when exposed to temperatures above its softening point, its amorphous region gets the thermal energy, and the molecular chains start to get loose and hence mobility gets increased. The extent of this softening behavior may vary slightly depending on the precise formulation and the amount of additives or fillers present.
🔬 Research Insights:
Recent studies reveal that prolonged exposure to UV rays or thermal cycling can precondition ABS, making it more likely to undergo heat-induced deformation. Moreover, laboratory studies indicate that the softening process can be affected by environmental conditions like humidity or the stress remaining from the manufacturing process.
Implications of Softening in Manufacturing
The softening of ABS thermoplastic brings about significant changes in the manufacturing process and the end-use applications of the material. If ABS is heated beyond the softening point, then it can lose its structural integrity, thus its deformation and failure under mechanical stress can happen. This is particularly the case in industries such as automotive and consumer electronics, where ABS components have to be affected by different thermal conditions and still perform reliably.
Manufacturing Considerations:
- ✓
Monitor temperature-resistant material demands due to electronic manufacturing advancements - ✓
Modify ABS formulations to improve heat resistance for specific applications - ✓
Design protective features into products to lessen thermal impacts - ✓
Implement user-friendly testing techniques that mimic real-world conditions

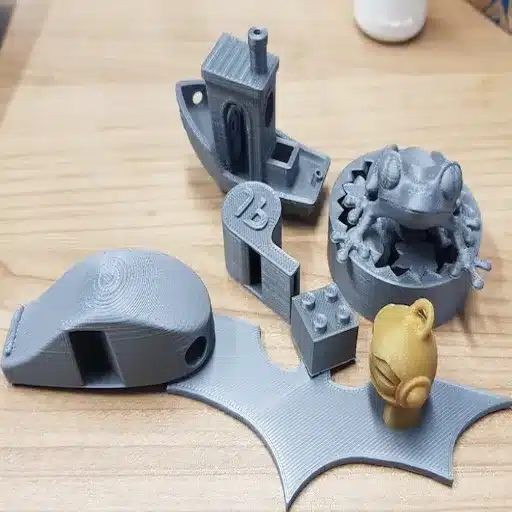

ABS Melting Point in 3D Printing
Optimal Temperature Settings for ABS Filaments
High-quality outcomes are dependent on the chemistry of the plastic filament which is 3D printed, hence getting the optimal temperature settings while working with ABS is the first thing that should be done.
Nozzle Temperature
210°C – 250°C
(410°F – 482°F)
Varies according to filament type and manufacturer guidelines
Build Plate Temperature
80°C – 110°C
(176°F – 230°F)
Prevents warping and ensures proper adhesion during printing
🔧 Pro Tips for Optimal Printing:
- Keep a closed and stable environment to improve printing conditions
- Reduce airflow and control ambient temperature to prevent cracking and uneven cooling
- Install a printer enclosure or place the printer in a controlled room for consistency
- Always follow manufacturer’s guidelines for precise temperature settings
- Continuously monitor filament performance and adjust settings as needed
Challenges in 3D Printing with ABS
3D printing with ABS (Acrylonitrile Butadiene Styrene) is quite a challenge but still quite common because it produces durable and heat-resistant parts, which is one of the main reasons why it is so widely used.
Benefits of Using ABS in 3D Printing
ABS (Acrylonitrile Butadiene Styrene) has been a classic material in 3D printing due to its long-life, multi-functionality, and cost-effectiveness.
✓ Impact Resistance
Perfect for functional prototypes and mechanical parts that must bear stress
✓ Heat Resistance
Maintains shape at higher temperatures for industrial applications
✓ Post-Processing
Easy machining, sanding, and acetone vapor for smooth finishes
✓ Color Variety
Available in multiple colors for aesthetic projects requiring durability
In the case of tensile strength, the plastic can be vacuum-sealed and thus the printed product is more hidden and less thick than the actual material. For both industry and hobbyist, ABS is the material that gives you the performance, affordability, and flexibility mix so it is here to stay as a 3D printing material.
Frequently Asked Questions (FAQ)
What is the melting point of ABS plastic?
The melting point of ABS (acrylonitrile butadiene styrene) usually varies between 220°C to 250°C. The given temperature range is a crucial factor in the processing of ABS parts during manufacturing and 3D printing. ABS being a commonly used thermoplastic known for its durability and impact resistance has various applications. The heating of ABS to its melting point causes melting from solid to liquid state, making the process of molding and shaping easier. The knowledge of the melting point is helpful to select the material for those projects that require certain mechanical properties.
How does the softening temperature of ABS affect 3D printing?
The softening temperature of ABS is very important for the success of FDM 3D printing, as it is the factor which decides when the material becomes soft enough to be extruded. The softening temperature of ABS is about 100°C to 110°C which usually is lower than sharp melting point. In case the temperature goes above this range during 3D printing, the degradation of polymer chains may occur, which will lead to the change of mechanical properties of the resulting print. This besides the understanding of the transition temperature around 105°C helps optimizing the conditions for printing to not only avoid warping but also ensure adhesion. Proper heat deflection temperature is also a factor of the durability of ABS printed parts.
What are the mechanical properties of ABS plastic?
ABS plastic has been recognized for its remarkable mechanical properties, such as high strength, impact resistance, and fair flexibility. These features render ABS as a material of choice basically in any application, like automobile parts, and LEGO bricks, where durability is a demand. The material exhibits a flexural strength that it can withstand bending forces without breaking. Also, the elongation at break property endows the material with a certain stretchability level, hence its good performance in different environments. The knowledge of these properties helps the manufacturer to select the appropriate materials for their respective applications.
Can you explain the glass transition temperature of ABS?
The glass transition temperature (Tg) of ABS is roughly 100°C, which is the temperature at which the material changes from a hard and glassy to a more rubbery state. This change, in fact, determines the behavior of ABS under various thermal conditions. The material below this temperature is rigid while that above it is soft and this allows processing to be done with ease. This property has become an important factor in the industry where ABS is constantly subjected to high temperatures. The glass transition temperature is known to the engineers who in turn are confident that the ABS parts will be stable and functional in the intended operating condition.
What are some common applications for ABS plastic?
ABS plastic is considered an advantageous material for various applications and thus it is widely used due to its properties. Besides automotive components, household appliances, and 3D printing materials its mechanical strength and impact resistance are common durability requirements for electronic devices, such as protective gear and cases, and therefore products made with ABS. Also, the flexibility of ABS allows it to be easily processed into intricate shapes which is why it becomes the first choice in the production of toys and consumer goods. The knowledge of the applications that demand strength helps in making the right material choice for specific projects.
How does the melting point of ABS compare to other plastics?
ABS’s melting point ranges from 220°C to 250°C, which is relatively high in comparison to other plastics. The range is higher than that of PLA (polylactic acid), which has a lower melting point making it easier to print, but less durable. Nylon, on the other hand, is another thermoplastic with a higher melting point alongside different processing requirements. The melting point of ABS enables it to be in contact with high temperatures for longer periods before melting thus making it suitable for thermal stability applications. Grounding on these differences in melting temperatures, manufactories can properly choose the plastics that best fit their needs.
Reference Sources
📚 “3D printing: Overview of ABS evolvement”
Publisher: AIP Publishing
Description: This article discusses the melting point of ABS in the context of 3D printing and extrusion processes.
📚 “Novel study on improvement of plastics properties by blending of waste micro plastics into ABS plastics”
Publisher: ScienceDirect
Description: This research explores the melting temperature and other properties of ABS when blended with microplastics.
📚 “Towards sustainable injection molding of ABS plastic products”
Publisher: ScienceDirect
Description: This study examines the melting temperature and sustainability aspects of ABS in injection molding processes.
Key Takeaways
ABS melting range: 105°C – 160°C
3D printing temp: 210°C – 250°C
Softening point: 105°C – 110°C
Ideal for durability & heat resistance
