ABS plastic pellets have differing uses and applications which allow for a great degree of manipulative mix and match machining because of its high grade and a multitude of properties. In this guide, we will delve into the primary characteristics and advantages of ABS plastic, its common uses, and more importantly, educate you on some advanced concepts relating to molding and 3D printing that would enable you to strategically accomplish the targets with specific precision in mind. Moreover, this work will cover other materials and their properties, processing techniques, and other helpful suggestions that would aid in getting the best results. All of this information will make the guide useful to designers, manufacturers, and hobbyists. The students and specialists engaged with design and manufacturing domains will learn how the innovations of molding and 3D printing in conjunction with ABS plastic pellets can improve the overall productivity, quality, and aesthetic value of design and industrial works.

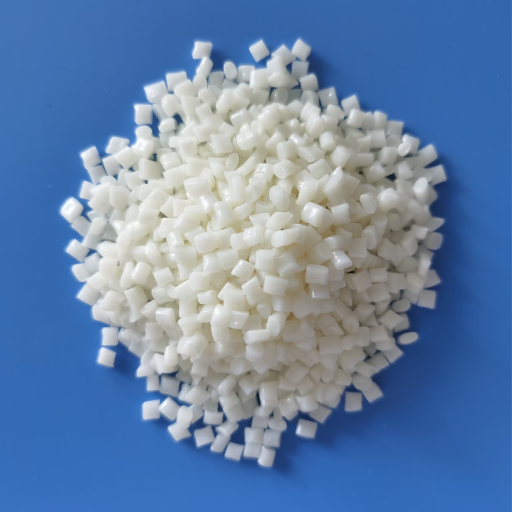

What are ABS Plastic Pellets and How Are They Used?
The properties of ABS plastic have led to its commercialization as an engineering plastic, and the production of inexpensive ABS plastic pellets has made it economically feasible to be applied in its full potential. The strong impact resistance along with durability, and resistance to heat further add to the commercial viability of ABS being used for automotive components, consumer electronics, household goods and even prototyping models. Along with ease of customizing and molding, it opens up its imaginative industrial approach.
Understanding Acrylonitrile Butadiene Styrene Composition
As regions of the world continue to advance, so too does the need for sophisticated technology. Therefore, new materials are required, materials such as high-performance thermoplastics. A new triad of monomers have entered the stage, comprising of acrylonitrile, butadiene, and styrene. All new materials come with a set of brand new properties, starting with the acrylonitrile. This monomer provides the polymer with chemical resistance and significantly improves thermal stability ensuring safety under different environments. Butadiene offers even greater benefits with unrivaled dust and impact resistance. Finally, styrene, through smooth glossy surface finish, brings enhanced processability. During production, all these components are precisely altered to meet the requirements of an application allowing for optimization of flexibility, rigidity, and even stress resistance.
Common Applications for ABS Plastic Pellets
The reason ABS plastic pellets are so popular amongst industries is not farfetched as these pellets have exceptional durability, processability, and versatility. One of the most renowned and infamous uses of these pellets is in the fabrication of automobile parts such as wheel covers, trim panels, dashboards, etc, where the ability to withstand sharp temperature changes and impact is preferred. Furthermore, casings for mobile devices, televisions, and computers also employ these polymers because of their uniform glossy smooth finish and ease of moldingABS has numerous applications in consumer electronics and is extensively used in the manufacturing of computers. Because of its ease of extrusion and dimensional stability, other notable applications also include parts for power tools, children’s toys such as LEGO bricks, household goods like vacuum cleaners, and prototyping and parts used in 3D printing. The versatility and adaptability of the material ensure reliability in both everyday and high-performance items, establishing ABS as fundamental to modern technology.
Differences Between ABS and Other Thermoplastic Materials
ABS (Acrylonitrile Butadiene Styrene) differs from other common thermoplastics such as PLA, PVC, and Polycarbonate in several key aspects:
- Strength and Impact Resistance: In terms of impact resistance and durability, ABS outperforms PLA. That makes ABS suitable for rugged applications. Moreover, PLA is lower in value when compared to ABS because it has inferior mechanical performance, lower melting point, and is biodegradable.
- Heat Resistance: Out of the two thermoplastics, PLA and ABS, the latter tends to exhibit better heat resistance. The downside of this is that it can’t be used in areas where there is a need to be environmentally sustainable.
- Flexibility vs Brittleness: In terms of versatility, ABS is more flexible than PVC. While the rigidity of PVC is a plus for construction and piping, ABS’s impact resistance makes it suitable for areas that require moderate flexibility and strength.
- Transparency and Strength: Impact strength and optical clarity of high performing thermoplastic Polycarbonate overshot ABS. The advantage of ABS is that unlike polycarbonate, it is easier to process and cheap for large volume production except transparent products.
- Chemical Resistance: Comparing chemical resistance, ABS has moderate resistance, which is enough for general use. The downside of this is that compared to materials such as PVC, which has remarkable resistance to chemical exposure and weathering, ABS is considered inferior.
As previously identified, each has a unique balance of characteristics suitable for certain thermoplastic purposes. However, it is vital to note that ABS’s is unique compared to the rest. The industrial versatility, processability, strength to cost efficiency ratio, heat resistance makes ABS superior.

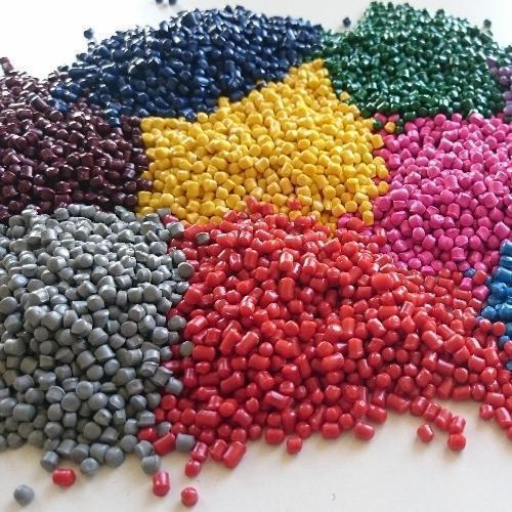

How to Choose the Right ABS Plastic Pellets for Injection Molding?
Cost and performance efficiency are very important and need to be evaluated critically when using injection molding with ABS plastic pellets.
1. Grade and Application Requirements: Choose the thermal and mechanical grade of ABS appropriate for your application. For more durable items high impact grades work better whereas high gloss are wrapped better around focus products.
2. Miscellaneous Costs (MFI): Another consideration is the MFI grade of the pellets. For intricate designs higher MFI is favorable, however better mechanical properties require lower MFI.
3. Additives and Modifiers: Stricter performance and compliance with regulatory systems can require UV stabilizers, flame retardants, or colorants ones.
4. Cost and Availability: Plastic should fall within the financial budget laid out as well as remove unwanted delays in the supply chain.
5. Material Certification: Verify that the material meets relevant certification requirements for the industry, if applicable, such as FDA and RoHS.
Collectively, all of these aspects contribute to the optimal product development and effective product development and manufacturing cycle.
Key Properties to Consider When Selecting ABS Resin
Selecting the right type of ABS (Acrylonitrile Butadiene Styrene) resin involves a careful consideration of properties such as resilience to distress and thermal stability. Thus, the following properties should be capabilities should be considered:
1. Impact Resistance: ABS is widely acknowledged for its capacity to resist impacts. It is considerably useful for application which require withstanding sharp forces. Make sure to check the precise impact resistance rating from the manufacturer’s specifications to ascertain that it aligns with your application.
2. Mechanical Strength: While checking the polysulfone, also pay attention to the impact tensile as well as flexural strength. These aspects guarantee that the material will endure the mechanical forces that are applied to it without undergoing deformation or breakdown, which is crucial for structural elements.
3. Thermal Stability: The thermal characteristics of ABS, such as its heat deflection temperature as well as glass transition temperature, are significant for applications that require increased absolute temperature ranges. ABS typically maintains dependability while subjected to 100oC, although other specialty grades do tend to vary positively.
4. Chemical Resistance: Abs is known to have resistance towards some acids, alkalis and oils, although it may be affected by some types of organic solvents. Ensure the materials will not interact chemically with the elements they will come into contact with for the particular applications.
By cross-examining the properties from relevant data and conducting appropriate tests, the aims therefor resolving mechanical criteria, performance criteria, and abstaining on violating environmental demands for the ABS will be met easily.
Color Options and Additives for ABS Pellets
ABS pellets are incredibly adaptable and can be tailored with different color options and additives for specific applications. Production processes allow for the addition of pigments and dyes to create almost any desired color, as well as opaque and translucent finishes. ABS is custom tailored using weather-resistant UV stabilizers, flame retardants for fire-sensitive areas, and impact modifiers to enhance durability. Moreover, antistatic substances can be incorporated to mitigate electrostatic discharge and fillers such as glass fibers serve the purpose of increasing strength and rigidity. Such versatile options enable manufacturers to optimize functional and aesthetic requirements of ABS.
Impact Resistance and Durability Factors
Material characteristics like impact resistance and durability of ABS is affected by different parameters. The molecular structure of the polymer is also important, as the impact energy absorption capability of ABS is enhanced by the addition of polybutadiene. Further toughness enhancement owing to stress is possible through the addition of impact modifiers which makes the polymer more resilient. Other issues such as exposure to UV light and extreme temperature conditions has to be controlled which makes it necessary to use UV stabilizers and thermal stabilizers for maintaining long lasting durability. Furthermore, the mechanical properties of tensile strength, elongation at break, and impact endurance tell us the degree of stress the material can sustain without catastrophic failure. These parameters serve to control how tailored and ABS products designed for distinct applications are made to be impact resistant and highly durable.

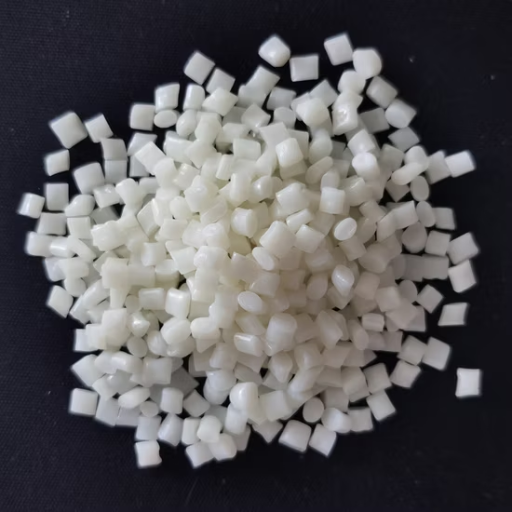

What Equipment Do You Need for Processing ABS Plastic Pellets?
Custom machinery is needed to ensure the optimal functioning and quality of products manufactured using ABS plastic pellets. The most important peripherals include an injection mold machine or extruder for the specific purpose, both of which have temperature control units to manage the melting of the material. A dryer for the pellets is also necessary in order to eliminate moisture and ensure the material does not contain spiracles or voids post-processing. For the cutting and recycling of waste materials, granulators and grinders may also be required. All tools and equipment must die or molds must be created to tolerances with high-temperature resistance, dimensional accuracy, and brought characteristics that are specific to BAS.
Injection Molding Machines Compatible with ABS Materials
The requirements for injection molding machines working with ABS materials demand that the polymer be tempered and pressured precisely as the polymer’s processing needs stipulate. For ABS processing, there is usually available a range of machines from 20 to 500 tons of clamping force with varying levels of complexity. The use of advanced systems with bore heaters and screws designed for uniform and homogenized melting and mixing of ABS provides higher precision and consistency. Improved precision control within these machines is offered by servo-electric drives and hybrid systems which also contribute to greater energy efficiency. Hybrid ABS thermoplastics yield the best results when controlled precisely and these systems guarantee that. Hybrid systems with vents to monitor temperature, pressure, and material flow help ensure that production is free of flaws and that structural and aesthetic standards of the ABS parts are met.
Temperature and Pressure Settings for Optimal Results
Quality and uniformity of ABS (Acrylonitrile Butadiene Styrene) ensures the optimization of both mold and barrel temperature along with injection pressure. The barrel temperature is kept between 210°C and 250°C (410°F to 482°F) with the grade of ABS and the complexity of the part determining the exact value. The mold temperature is set between 50°C and 80°C (122°F to 176°F) to improve the surface finish as well as reduce internal surface stresses.
The parameters of injection pressure are set typically between 60 to 150 MPa (8,700 to 21,750 psi) for the initial setting, with further modifications based on the component’s design configuration and the needs of specified accuracy and precision. It is recommended that holding pressure be set within the limits of 50% to 70% of the injection pressure to secure adequate packing and reduce sink mark formation.
An injection speed that is uniform is crucial to alleviate shear heating and flow marks, especially for delicate detail and thin wall structures. On a more dynamic note, flow marks will become non-existent and the aesthetic appeal alongside the longevity of ABS parts is drastically improved with careful monitoring of the previously mentioned parameters.
Mold Designs Best Suited for ABS Plastic
When designing molds for ABS plastic, attention to critical controlling features is needed to ensure optimal material flow, minimal defects, and stress-free geometric accuracy. Molds should have a more uniform wall thickness to reduce the chances of stress and warping during cooling. Incorporating smoother transitions and rounded corners aid in reducing stress concentrations to prevent crack formation on the material. Proper venting has to be included to allow the escape of trapped air which mitigates the chances of voids or burn marks on the molded parts.
For gating, ABS is commonly using direct gates or fan gates because they effectively allocate materials over the entire mold cavity. The use of a hot runner system, also, can improve material flow and aid in the reduction of wastage while still keeping quality uniform. Cooling channels should be located relative to the mold cavity to ensure even thermal regulation, as that increases the rate at which cycle times are completed and part integrity is improved. Such principles guarantee that production is efficient and the end product is appealing while ensuring remarkable durability.

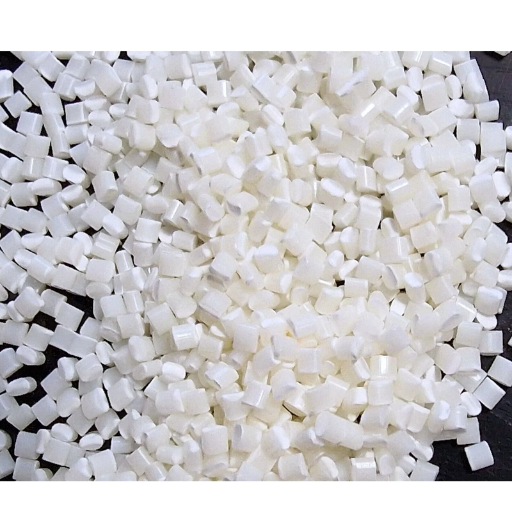

Can ABS Plastic Pellets Be Used for 3D Printing?
3D printing does accept ABS plastic pellets as a usable input, although they are not commonly supplied as filament or feedstock material compatible with most 3D printers. Specialized 3D printers that use pellet extrusion can employ ABS pellets directly. This offers significant savings in materials and custom design options. However, the customized properties of ABS pellets necessitate specially designed nozzles, temperature control, feeding systems, and reliable quality and performance standards to ensure satisfactory print outcomes.
Converting ABS Pellets to 3D Printing Filament
Filament extrusion systems designed to manufacture 3D printing filament need to be applied to convert ABS pellets to suitable form of feedstock for 3D printing. The process begins with loading the filament extruder with ABS pellets. The polymer is then melted at an appropriate temperature which is 220°C to 250°C depending on the type of formulated ABS used. The molten substance is then extruded through a die designed to cut the filament at a preset consistent rate to specified diameter standards set at 1.75mm or 2.85mm.
Some of the important factors to consider during the process are achieving uniform heating throughout the extrusion process to avoid variations in diameter and implementing a controlled cooling system for even material solidification. These steps ensure smooth transitions to 3D printing. Automated spoolers are deployed in this phase for consistent filament winding to prepare for 3D printing. Different desktop 3D printers have diverging operating systems, which is why the extrusion system parameters, including the screw rotation speed and the rate of extrusion, must be set correctly to develop consistent high-quality filament.
Printer Settings for ABS-Based Materials
Optimal ABS filament features require precise printer configuration, which directly impacts results. Depending on the brand and formulation, the recommended extrusion, also referred to as nozzle temperature, is set anywhere between 220 to 250 degrees Celsius. Furthermore, a heated print bed is an absolute necessity set at 90 to 110 degrees. This controlled environment ensures that adhesion is maintained while also preventing warping. An enclosed build chamber also yields great results as it works to maintain stable temperature around the workpiece which minimizes layer splits during the cooling phase.
In most cases, print speeds should be set within the 40 to 60 mm/s range for optimal print quality. Fan cooling should also be turned off as aggressive cooling tends to increase the chances of cracking. A further enhancement to the print bed adhesion is the use of adhesives like ABS slurry and glue stick. The meticulous calibration of these parameters will enhance the overall reliability and precision of the 3D prints made from ABS plastic.
Troubleshooting Common 3D Printing Issues with ABS
- Warping and Bed Adhesion Issues
Warping results from uneven cooling of printed layers leading to curling and lifting from the bed. In regards to offsetting the warping effect, ensure that the print bed temperature is maintained at 90°C to 110°C. Additionally, proper adhesives such as ABS slurry must be used, and the printer’s enclosure or draft shield turned on to maintain a constant temperature. Preheating the bed along with using a brim or raft can also improve adhesion further.
- Cracking in Tall Prints
Cracking occurs to a print from the inside due to inconsistent cooling, and gets worse with increased print height. To minimize cracking, restrict the cooling fan at the start, encase the model during printing to maintain temperature, and moderate the print speed to anywhere between 40 mm/s and 60 mm/s. Slightly increasing the nozzle temperature from 230°C and up to 250°C will improve bonding between layers.
- Stringing and Oozing
Stringing is the result of incorrect retraction settings or high nozzle temperatures. Check that the retraction settings distance and speed are optimal within 4-6 mm for the distance and 20-40 mm/s for the speed. If stringing continues, gradually lower the nozzle temperature. It is also important that the filament is dry, as ABS is hygroscopic and absorbs moisture over time.
- Layer Delamination
Poor management of cooling conditions and insufficient thermal regulation of the cooling system leads to issues with ABS layer adhesion. These issues can be resolved by ensuring the nozzle temperature is within the filament brand’s designated 230°C – 250°C sliding scale. Strong cooling and preserving the print area from sharp temperature drops are also necessary.
Users can increase their success rates with prints using ABS filament by tweaking some parameters and overcoming these frequent difficulties along the recommended guidelines.

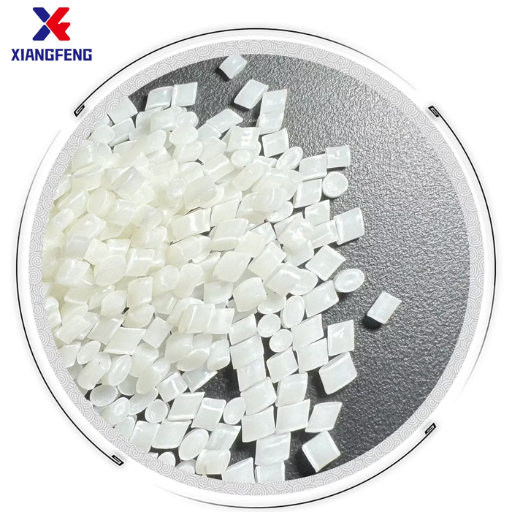

Where to Buy ABS Plastic Pellets in Bulk?
Finding reliable suppliers becomes crucial when buying ABS plastic pellets in bulk to guarantee optimal quality and performance. Industrial suppliers, Grainger, Sabic, or Polymer Resources, sell different grades of ABS pellets, all tailored for specific uses. Other more generalized sellers, like Alibaba, or specialized suppliers, like Total Plastics, offer bulk purchasing options too. Before making a purchase, confirm material specifications, minimum order requirements, and shipping details.
Comparing Prices and Shipping Options
With ABS pellets, it’s important to analyze the shipping and pricing of multiple vendors as these factors can alter overall cost optimization. Grainger sells premium-grade ABS pellets with online price visibility, which aids in cost assessment; however, shipping costs are location and order volume-dependent. Sabic usually works through direct consultations for bulk pricing—custom quotes tailored to specific needs are very competitive, although shipping details need meticulous planning. There is an extensive selection of sellers on Alibaba and many listed prices are negotiable, especially for larger purchases; however, shipping costs often fluctuate extensively due to international logistics and customs processes. It is vital for purchasers to carefully assess these offerings because balance on the total costs accompanying expenses like taxes, duties, and delivery, allows users to stay in their operational thresholds.
Premium vs. Affordable ABS Pellet Brands
The major distinctions between premium and affordable ABS pellet brands are quality, consistency, and application. Premium brands have better manufacturing processes that guarantee consistent pellet size, fastness of color, lower defects, etc., which are essential for high-precision manufacturing like automotive and electronics production. These brands usually provide detailed product specifications, technical guidance, and certifications, which justify their costs.
Economically priced ABS pellet brands are usually intended for less demanding applications or bulk production that accept small deviations from the standard. Budget-friendly options come with high performance variability which can result in heightened production downtime or waste in stringent applications. Customers must consider trade-offs and deal with any potential consequences of being non-compliant to performance standards.
Selecting between a premium versus a more affordable brand requires checking the technical data sheets (TDS), certifications of the materials in question, and conducting sample tests to verify their fulfill product and operational standards.
Bulk Purchasing Tips for DIY Projects and Small Businesses
The quality of materials is as important as their cost in relation to time efficiency when doing bulk purchase for a DIY project or for a small business. Make certain to assess everything, including the potential remainders, to determine the most accurate figure to avoid over purchasing. Look closely into suppliers and evaluate what discounts and shipping they offer since they greatly affect the actual price you need to pay for each unit. Choose suppliers with a good reputation so you are not forced to deal with project timeline delays due to poor quality materials.
Do not forget to assess other parts that make up the item. For example, items that can be maintained for longer periods of time without any degradation offer more versatile usage and therefore more savings over time. Thinking of buying directly from manufacturers or using wholesale buying sites can provide other price deflators. Knowing return and warranty policies is important if you are making bulk orders since they protect your investment when problems arise.
References
Frequently Asked Questions (FAQ)
Q: What are ABS plastic pellets and how are they used in molding?
A: ABS plastic pellets are small granules made from acrylonitrile butadiene styrene, a moldable plastic known for its strength and high impact resistance. They are commonly used in the manufacturing of molded products, such as toys, home decor, and functional parts, due to their dimensional accuracy and easy processing properties.
Q: What is the typical size of ABS plastic pellets available in the market?
A: ABS plastic pellets typically come in sizes like 6mm or smaller, and can be purchased in bulk bags weighing 1 kg or 1 lb. The size of the granules affects their processing and the final product’s quality.
Q: Can I use black ABS plastic for cosplay projects?
A: Yes, black ABS plastic is a popular choice for cosplay projects due to its lightweight and durable nature. It can be easily molded and shaped into various designs, making it ideal for creating armor, props, and other costume elements.
Q: Are there any heat-resistant properties in ABS plastic?
A: ABS plastic is known for its heat-resistant capabilities, allowing it to withstand higher temperatures without deforming. This makes it suitable for applications where heat stability is essential, such as in certain automotive and electronic components.
Q: How do I repair items made from ABS plastic?
A: To repair items made from ABS plastic, you can use a suitable adhesive, such as a specialized glue designed for plastic bonding. For small cracks or breaks, you can also use ABS plastic sheets or compound to patch the damaged area effectively.
Q: What are the different colors of ABS plastic pellets available?
A: ABS plastic pellets come in a variety of colors, including black, white, pink, and purple. Buyers can choose the color based on their project requirements, whether for aesthetic purposes or specific applications.
Q: Is ABS plastic recyclable, and how does that process work?
A: Yes, ABS plastic is recyclable. The recycling process involves collecting the material granules, cleaning them, and then melting them down to be reshaped into new products. This enhances sustainability by reducing waste and conserving resources.
Q: What is the difference between ABS and HDPE plastic granules?
A: The main difference between ABS and HDPE (high-density polyethylene) plastic granules lies in their properties. ABS is a rigid, moldable plastic known for its strength and impact resistance, while HDPE is lightweight, flexible, and often used for containers and packaging. Each type of granule serves different applications in various industries.
