HDPE is among the most commonly used thermoplastic polymers in various industries simply for its strength, durability, and versatility. Another critical factor affecting its performance and suitability for any application is its thermal behavior, especially Tg. This blog investigates HDPE’s thermal properties while putting more emphasis on the glass transition temperature and how such temperature influences the physical and mechanical properties of HDPE. Anybody interested in optimizing the design and performance of HDPE products-whether a materials scientist, an engineer, or a manufacturer-must get an insight into this very crucial property. Read on and find how thermal properties come into play in topics of flexibility and structural integrity when confronted by a capable adversary.
Introduction to HDPE and Its Properties
What is High-Density Polyethylene (HDPE)?
High-Density Polyethylene (HDPE) is a thermoplastic polymer derived from ethylene monomers. Famous for having a superb strength-to-density ratio, HDPE is a very designable engineering resin that finds applications in several industries ranging from packaging to construction and automotive. HDPE comes as a very light material with density typically in the range of 0.93 to 0.97 g/cm³; this, combined with good durability and resistance to impact, makes it the preferred option for heavy-duty uses. The chemical structure of HDPE features a straight-chain polymer with very little branching in the polymer chain, giving it strength and rigidity in addition to resistance to deformation at both high and low temperatures. Apart from mechanical advantage, HDPE is also highly resistant against chemicals, moisture, and UV, thereby enhancing its usefulness in certain extreme environmental conditions. It is the array of polymer research developments over time that has contributed to the development of more and more uses, thereby cementing its position as an extremely useful material in the current industrial and consumer product sector.
Chemical Structure and Composition of HDPE
High-Density Polyethylene (HDPE) is a thermoplastic polymer prepared by the polymerization of ethylene (C₂H₄) molecules, usually employing catalytic systems such as Ziegler-Natta or chromium/silica-based catalysts. Its chemical structure comprises a linear chain of carbon atoms with very little branching to maintain its relatively high crystallinity and density in the range of 0.93-0.97 g/cm³. Such minimization in branching leads to molecules being packed more closely together, thus augmenting strength, rigidity, and resistance to chemical attacks.
The composition typically includes polyethylene as a major constituent, but polymer engineering advancements allow the modification of HDPE with additives such as UV stabilizers, antioxidants, and pigments to improve its performance in specific applications. These modifications serve to keep HDPE stable and functional even in demanding environments, such as prolonged exposure to sunlight or corrosive chemical environments.
Recent studies have shown that innovations in catalyst and polymerization technology can boost manufacturing efficiency and molecular weight control of HDPE, allowing the tailoring of properties for various industrial requirements. This ensures that HDPE finds relevance in applications such as piping systems, geomembranes, and durable consumer products even in the future.
Key Physical Properties of HDPE
High-Density Polyethylene (HDPE) is excellent when compared to other types of polyethylene, mechanically and physically. Some of its characteristics include the following:
- Density and Strength: HDPE usually has a density of 0.93 to 0.97 g/cm³, which when combined with its high crystallinity gives it an extraordinary tensile strength and durability. It is therefore used in pressure piping and structural applications.
- Impact Resistance: HDPE has high impact resistance, even at sub-zero temperatures, thus allowing it to hold together when forced and limiting the chances of fracturing.
- Chemical Resistance: Due to its non-polar nature, it offers resistance to many chemicals such as acids, bases, and organic solvents and hence is the most preferred material in the making of tanks for storing and transporting chemicals.
- Thermal Properties: It has a melting point that normally falls between 120°C and 130°C, as a result of which its thermal stability can be regarded as fair. However, HDPE shows very low thermal conductivity and can, in some industrial scenarios, be regarded as a good thermal insulator.
- Flexibility and Toughness: Though rigid, HDPE can bend under stress and deform under loading without stealing away the permanent structural damage.
- Water Absorption: HDPE has very low moisture absorption, thus making it suitable for waterproof membranes and any application subjected to water almost constantly.
Recent developments, based on the latest scientific and industrial data, also underline improvements in the molecular topology of HDPE that increase its modulus value while optimizing its barrier properties. This development makes HDPE a material of choice for packaging, especially in the food and beverage industries where the packaging needs to be air-tight and doubly hard.
Understanding Glass Transition Temperature (Tg)

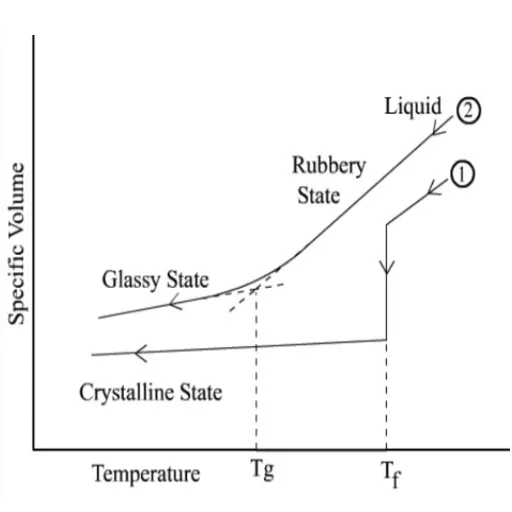

Glass Transition Temperature: Definition
The glass transition temperature is an important thermal property of amorphous materials, including polymers, describing the temperature range in which a material passes from a hard-glassy state to a rubbery phase. The polymer chains are restrained with respect to molecular mobility below Tg, producing an elastic-brittle material. Above Tg, enhanced rotational and vibrational activities of polymer chains impart elastomeric and pliable features to these materials.
The latest records from industry and scientific studies point to the application-based requirements of Tg determination, including materials engineering, packaging, and thermal properties evaluation. Changes in measuring techniques for Tg, such as differential scanning calorimetry, have indeed improved the whole gamut of the application process. Such a selection of materials will now have far-reaching concerns in industries clinging to very specific performance criteria, including aerospace and automotive, where sustainability vis-a-vis temperature substantively guides the very essence of material reliability and safety.
Importance of the Tg in Polymer Science
The glass transition temperature (Tg) is a secondary transition applied to polymer science: it ranges from a hard and glassy state of polymer to a softer and rubbery state. This pattern of Tg behavior defines the application capability of any polymer-based material. This latest information and state-of-the-art data reiterate the importance of Tg recognizing the tailoring of polymers to meet specific market needs. For example, in the realm of flexible electronics, modified polymers with an accurately defined Tg can guarantee mechanical flexibility and thermal stability under usage conditions.
Likewise, in biomedical applications such as drug delivery systems, polymers with defined Tg values may modulate the release rate of the encapsulated therapeutic agents. Synthesis and processing-related scientific knowledgeclaiming lack of funding in materials will take polymers past currently known Tg by pinpointing polymer blends and copolymers for use in multiple environments. Through this, the use of specific polymers is at the forefront of technological innovation in the aerospace, automotive, and consumer electronics sectors all striving to customer specifications in optimized thermal properties according to their application.
Tg v/s Melting Point: Differences
The glass temperature and melting points-the polimer, so two different kinds of thermal transition that material undergoes. Tg refers to a temperature range at which amorphous material-type glassy polymer undergoes state transition from hard, brittle state to a rubbery state, due to an increase in molecular mobility. This transition is a gradual one and is never associated with a phase change. In contrary, the melting point is the temperature at which a crystalline material gets his official transformation from solid to liquid.
With some recent updates and trends from literature, hence we may argue that Tg marks the flexibility and toughness of amorphous or semi-crystalline polymers of practical importance, but in contrast, Tm has much say in any crystalline material regarding its molding and thermal stability. For instance, glass transition temperature (Tg) control in polymer blends could increase the overall performance in environments with high impacts by making them more elastic and resilient. On the other hand, Tm is more pursued in application where materials have to be thermally processed or withstand mechanical stresses. Both are somewhat in conflict but much more helpful toward characterizing and increasing the value of materials in cutting-edge applications.
The Glass Transition Temperature of HDPE
Typical Tg Values for HDPE
High-density polyethylene remains a commonly used thermoplastic with a comparatively low Tg unlike several other commercially known plastics that are Tg oriented. HDPE-Tg usually ranges from around -110°C to -120 °C (-166°F to -184°F).
This extremely low value for Tg arises from the semi-crystalline nature of HDPE wherein only the amorphous regions are displayed as the glass transition of the material. Crystalline HDPE has a very high degree of crystallinity (50-80%), such that the mechanical changes are not felt around the Tg range, allowing the HDPE to stand its mechanical property of durability and rigidity at normal usage temperatures.
These reports and studies have verified that the glass transition temperature of HDPE remains constant for various grades and thus is governed by chain mobility of the amorphous phase rather than molecular weights or processing methods. One of the major reasons behind its low Tg is that HDPE possesses superior impact strength and ability to yield down to very low temperatures; hence, it finds applications in the pipe industry, containers, and cold zones.
Factors Affecting the Tg of HDPE
With regard to the glass transition temperature (Tg) of HDPE, intrinsic and extrinsic factors govern this parameter. Intrinsic factors are mainly linked to the crystallinity and the structure of the polymer, but extrinsic parameters include processing conditions in some unusual cases. First, a profoundly semicrystalline polymer like HDPE has a much-restricted chain mobility in what is considered the crystalline part, with the Tg of the amorphous regions governing the overall Tg. Since Tg is observed when molecular motions in the amorphous regions become the first restricted upon cooling, the greater the amount of amorphous regions, the greater the determination of the measured Tg will be.
Other external factors can modify local mobility within the amorphous phase, for instance, plasticizing effects, such as moisture or chemical exposure, or the external stress state. However, based upon the latest studies and data retrieved, the Tg of HDPE remains close to -120°C under normal conditions, which reaffirm that the Tg of HDPE depends on being first and foremost a property of the material itself and not on its processing or external conditions. The lower Tg is therefore paramount to provide the needed toughness in industrial applications where performance reliability in dynamically changing thermal environs is critical.
Comparison of Tg in Other Polyethylene Variants
Comparing the glass transition temperature of other polyethylene variants shows some marked differences influenced by their molecular structure and crystallinity. To cite an example, Low-Density Polyethylene (LDPE) experiences a glass transition generally situated at temperatures around -110°C, relatively higher than for High-Density Polyethylene (HDPE). The reason for this difference lies in that the branched molecular architecture of LDPE reduces the crystallinity and frantic chain mobility at low temperatures. On the contrary, Linear Low-Density Polyethylene (LLDPE), with its nearly linear but short-branched structure, appears to present a glass transition in the range of LDPE, around -110°C, with some variations because of the copolymer makeup.
Glaringly having some of the best-known alignments of molecular weight of more extended polymer chains, Ultra-High Molecular Weight Polyethylene (UHMWPE) holds the lookalike to HDPE of having a Tg around -120°C, with studies to this effect emphasizing the high crystallinity and molecular orientation. Medium-Density Polyethylene (MDPE), on the other hand, stands as an intermediate in crystallinity and Tg values between LDPE and HDPE, showing Tg values tending more toward HDPE because of its density-standing intermediate with hardly any side branching.
Such comparative data illuminate the fact that the baseline Tg for any polyethylene variant remains within a very thin window on the temperature scale while slight structural differences create considerable alterations in their ability to withstand thermal stresses. This distinction becomes fundamental in helping engineers and material scientists optimize their material selections for particular applications with fairly defined thermal and mechanical demands.
| Polyethylene Type | Glass Transition Temperature (Tg) | Key Characteristics |
|---|---|---|
| HDPE (High-Density Polyethylene) | -110°C to -120°C | High crystallinity, minimal branching, superior strength |
| LDPE (Low-Density Polyethylene) | ~-110°C | Branched structure, lower crystallinity |
| LLDPE (Linear Low-Density Polyethylene) | ~-110°C | Nearly linear with short branches, copolymer variations |
| UHMWPE (Ultra-High Molecular Weight Polyethylene) | ~-120°C | Extended polymer chains, high crystallinity and orientation |
| MDPE (Medium-Density Polyethylene) | Between LDPE and HDPE | Intermediate crystallinity, minimal side branching |
Crystallinity and Its Impact on HDPE Properties
Understanding Crystallinity in Polymers
In polymers, crystallinity refers to the rank of orderly molecular chains arranged in a crystal lattice. This widely varying structural composition has an opportunity to modify polymer properties in the physical, thermal, and mechanical senses. High-density polyethylene exhibits this semicrystalline characteristic with crystalline regions interspersed with amorphous zones. The relative amounts of crystalline regions jointly determine polymer properties such as rigidity, tensile strength, and thermal resistance. Greater amounts of crystallinity in HDPE occasion higher density, improved mechanical strength, and enhanced resistance to chemical and environmental stress crackings, according to recent literature. On the contrary, lesser crystallinity often endorses flexibility and impact resistance.
With modern data analytics tools, correlations between polymer processing conditions and crystallinity have been unearthed, as marked in those interesting recent updates indexed by. For instance, cooling rates during polymerizations contribute towards the crystallization of polymers. Hence, longer polymerization cooler times permit the development of a more orderly crystalline structure of polymers, which in turn supports better material application performance under load. This brings to wake the importance of crystallinity considerations in the design of polymers for high-end industrial and commercial applications.
Crystallinity versus Tg and Mechanical Properties
The influence of crystallinity over cells’ glass transition temperature (Tg) and mechanical features mainly processes the structuring and molecular interaction of chains of the polymer within the material. Greater crystallinity levels induce an increase in Tg since the ordered crystalline regions restrict polymer chain movement and require more energy for the material to transition out of a rigid state into a rubbery one. In this case, the properties they perpetuate include strength, stiffness, and dimensional stability under induced stress. Conversely, a greater amount of crystal structure simultaneously diminishes the toughness of polymers, mainly because the amorphous domains that contribute to flexibility and impact resistance are reduced.
Finally, the latest data and current trends in research have indicated that crystallinity can be controlled with good precision by controlling the cooling rates, controlling the molecular weight distribution, and using nucleating agents, each allowing different ranges of Tg and mechanical properties. The recent adoption of computational modeling to predict and optimize properties for design requirements will ultimately lead to polymers with just the right balance of strength, flexibility, and thermal properties for specific applications. This, in effect, is expanding the scope of polymers with engineered crystallinity for use in high-tech industries such as aerospace, automotive, and packaging.
Ways of Controlling Crystallinity in HDPE
Crystallinity control in high-density polyethylene (HDPE) is essential to adjust its physical and mechanical properties for subsequent use in various industries. It can be attained through the interplay of processing conditions, polymer composition, and of additive incorporation. Adjusting the cooling rate, for instance, during the polymer processing phase, is one critical factor that profoundly affects the crystalline nature of the polymer: high cooling rates reduce the crystallinity, whereas allowing the polymer to cool slowly enhances more orderly arrangements of molecules. Alongside this, the molecular weight and molecular weight distribution of HDPE exert considerable influence upon chain mobility and crystallization kinetics.
With the advent of new catalysts, such as metallocene catalysts, one can directly influence the polymer microstructure and thus control its degree of crystallinity. Nucleating agents serve the function of modifying crystal formation and adjusting the material’s properties to target specific levels of hardness or thermal resistance. Using computational approaches into machine learning, engineers attempt to model process parameters and analyze the synthesis environment relationships to crystallinity, a scientific approach that assures adherence to a strict set of HDPE standards for products that range in applications from food packaging to high-stress pipelines. Another very important aspect of the control over crystallinity is in recycled HDPE, which due to increasing environmental concerns, is being investigated for retention of material properties and in turn, improved sustainability.
Applications of HDPE in Various Industries

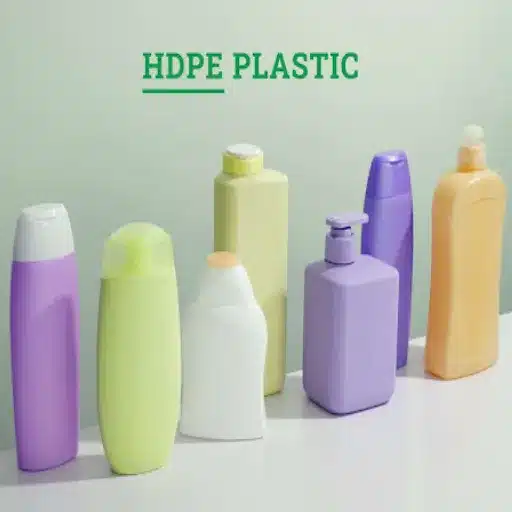

Packaging Applications Requiring a Specific Tg
The Tg of high-density polyethylene plays a key role in its packaging use. Tg is the temperature below which a polymer becomes hard and brittle, seemingly glass. For HDPE, the Tg ruler glides well below room temperature, usually in the range between -125°C and -110°C, making the polymer flexible and resilient under standard conditions of storage and transit. This property is by far the most important when it comes to packaging, wherein, for instance, containers for food that should remain resistant to any cracking due to chilling during refrigeration, need such qualities.
Recent findings show improvements in the manufacturing process, types of additives used to further modify thermal and mechanical properties of HDPE, and, therefore, to further increase the range of packaging applications. The changes made to the polymer allow for the modification of particular properties such as impact strength or permeability without compromising its low Tg. This ability has found HDPE very useful in the most demanding applications such as sealed food-grade containers, milk jugs, and other industrial chemical packaging. These properties are still being studied by team members comprising researchers and engineers who are looking for new ways to make it environmentally viable while fulfilling the increasingly stringent regulatory concerns of the packaging industry.
Construction Uses of HDPE and Thermal Requirements
The construction industry uses HDPE due to its special properties such as a high strength-to-density ratio, rather good chemical resistance, and very good durability. It finds use in geomembrane applications, underground piping, and cable insulation. Another important factor affecting application of HDPE is its ability to function under thermal variations. Whereas the melting point of HDPE varies with the grade and formulation and is usually mentioned in the range between 120°C and 180°C, it stands suited for applications where the temperatures vary quite drastically.
The piping system fabricated out of HDPE is expected to resist high thermal expansion and contraction while maintaining nice structural integrity wherever it is used for water distribution, gas piping, or drainage system. The material has also low thermal conductivity compared to metallic alternatives, resulting in higher energy efficiency, especially for systems carrying heated water where heat loss featured prominently in design considerations. Furthermore, the resistance to UV degradation of HDPE, usually enhanced through carbon black or other stabilizers, allows it to retain its mechanical properties in an environment that has repeated thermocycling events and plenty of sun exposure.
Research and development are ongoing to optimize the performance of HDPE for construction applications concerning the enhancement of its creep resistance at elevated temperatures, as well as its expected lifetime under extreme environmental conditions. Following these polymer science improvements, HDPE will further lay down the very foundations of sustainable construction solutions, having met the environmental and regulatory challenges of today’s construction industry.
Manufacturing Methods: Injection Molding and Tg Considerations
The injection molding technique is quite popular in manufacturing HDPE components, given its accuracy, quickness, and ability to work on a large scale. Melting the polymer and injecting it under high pressure into a custom-made mold is what occurs in an injection molding workstation. Such injection injection molding ensures that the material is homogeneous in its shape and size, besides preserving the mechanics of the material during use. The most important issue in injection molding of HDPE is keeping a close eye on processing temperature; if the polymer degrades, the performance will suffer.
The Tg value is an essential property of polymer processing since it identifies the temperature below which the polymer behaves as glass and above which it is rubbery. Due to its amorphous nature, HDPE exhibits a very low glass transition temperature (Tg), and its thermal stability and mechanical properties are mainly conferred by crystalline regions. Careful control of processing conditions, including the cooling rate, is very relevant during injection molding to enhance the dimensional stability and resistance to stress cracking of the material. Using best-in-class molding technologies alongside a rigorous material evaluation ensures that manufacturers keep pace with demanding specifications while producing end products that are greener and reliable.
FAQ
What is the HDPE’s glass transition temperature?
Typically in the -60°C to -40°C temperature range, high-density polyethylene (HDPE) has a Tg. The wide range indicates that HDPE retains flexibility at even low temperatures and, therefore, could be used for various applications. The Tg in the material has been associated with its performance under different environmental conditions, that is, increased temperature allows HDPE to move from a glassy state into a rubbery one and may affect its mechanical properties. Understanding Tg and Tm (melting point) of HDPE will help a lot in the application of HDPE requiring certain thermal traits.
Is HDPE’s melting point greater or less than its glass transition temperature?
HDPE has a melting point of about 130°C-135°C, which is much greater than its glass transition temperature. Such a difference is important for injection molding plastics, where the material has to be processed above these temperatures. While melting point tells the temperature at which HDPE ceases to exist as a solid and starts becoming a liquid, the glass transition temperature denotes the temperature at which the polymer turns into a soft material. Knowing both Tg and Tm is fundamental to making sure the material performs in high-temperature applications.
What roles do high Tg polymers play?
Applications that call for polymers of high glass transition temperature usually include the automotive, aeronautical, and construction industries. From high temperatures to keeping a material’s mechanical integrity, the areas need it all. Attributed to properties such as higher tensile strength and impact resistance, high-density polyethylene is employed in these demanding environments. High Tg polymers, moreover, have better dimensional stability when under thermal stress, making them applicable to parts in and out of operational temperature-limits. To select an appropriate polymer for a particular engineering need, one must grasp the polymer’s Tg.
How is the glass transition temperature affected by crystallinity?
Crystallinity affects the glass transition temperature in an important way. The greater the crystallinity, the higher the Tg, due to the fact that the ordered structure hampers molecular mobility. Amorphous polymers and therefore those having their molecules randomly arranged have a lower Tg, meaning more free movements occur at a lower temperature. For HDPE, the crystallinity varies based on methods of processing like injection molding. The linkage between crystallinity and Tg is important to consider when designing plastic structures for specific temperature and mechanical properties.
Reference Sources
- Characterization of High-Density Polyethylene (HDPE) Reinforced with Banana Peel Fibers
This study discusses the glass transition temperatures of HDPE determined using ASTM standards.
Read more here - Mechanical, Morphological, and Thermal Properties of Nutshell and Microcrystalline Cellulose-Filled HDPE Composites
This paper explores the thermal properties of HDPE composites, including glass transition temperature.
Read more here - Tensile Behavior of High-Density Polyethylene Including Glass Transition Temperature
This article highlights the low glass transition temperature of HDPE and its impact on material behavior.
Read more here
