Acrylic is one of the most well-known and useful thermoplastics. It has changed whole divisions like construction and even automotive design. Its clarity, toughness, and flexibility make thermal plastic acrylic resin a very useful and important material. But what other factors make acrylic indispensable and what are other substitutes? This guide will walk you through all the science, attributes, and mechanical uses of thermoplastic acrylic resin so that you can fully appreciate this wonderful material. You could be a designer, a manufacturer, or simply intrigued on how materials impact modern life: this article addresses all the reasons why acrylic continues to be a favorite across the industries.
What is Acrylic and Is It Really a Thermoplastic?

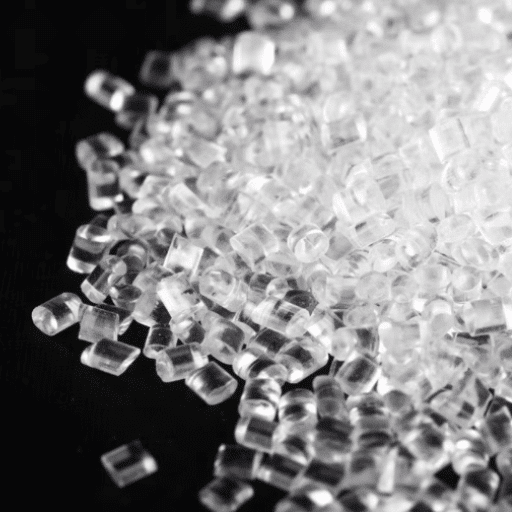

Acrylic is more technically known as polymethyl methacrylate (PMMA). It is transparent thermoplastic polymer and is extensively used in multiple industries. It can be classified as thermoplastic because it can be softened with heat and returns to solid state when cooled. Importantly, this process can be repeated many times without property degradation. This attribute further explains the ease of reshaping and recycling. Its glass-like clarity and wealth of characteristics including strength and resistance to weathering, make it durable and an ideal substitute for glass in windows, signage, and displays.
Defining Acrylic as a Polymer Material
As on of PMA’s derivatives, Acrylic is a synthetic polymer of PMMA, an acronym for polymethyl methacrylate. This is formed via the polymerization of methyl methacrylate (MMA) monomers. PMA has remarkable optical transparency when it comes to Acrylic – it boasts a 92% light transmission, effortlessly outperforming regular glass. Furthermore, acrylic is incredibly impact resistant being 10-20 times stronger than glass of the same thickness, while also having a lower density making it lightweight.
Acrylic also possesses thermal stability, UV stability, and low water absorbance allowing for reliable use in harsh conditions. It’s the deformation process and the environment’s temperature, pressure, humidity, and chemical composition resistant, making it useful in outdoor settings without degradation or yellowing for years. Its high level of mechanical versatility makes “laser cutting, thermoforming, and CNC milling” easy and efficient. All these characteristics prove effective in industries such as aerospace, automotive, architecture, and even medical devices.
PMMA (Polymethyl Methacrylate): The Chemical Structure of Acrylic
The chemical structure of polymethyl methacrylate can be simplified to repeating units of MMA, thus having the form of (C5O2H8)n, with “n” meaning degree of polymerization. Also, PMMA derives transparency and rigidity, thanks to the presence of ester functional group (-COO-) which is an integral part of the backbone. PMMA is used as an alternative to glass since it’s far more suitable. Furthermore, the covalent bonds forming the polymer chains graphically improve thermal stability and impact resistance, making it even more appealing.
Preferred methods of attaining the desired hardness, flexibility, or UV resistance include free radical polymerization with co-monomer modification for controlled extreme polymerization. Furthermore, other recent innovations include the addition of nanoparticles to PMMA composites, allowing further usage in high-performance applications by enhancing mechanical strength alongside heat resistance. These factors further solidify PMMA’s versatility as well as the numerous rigid, lightweight, clear industrial needs for accurate, dependable materials.
Thermoplastic vs. Thermoset Properties in Acrylic Materials
Acrylic plastic materials are thermoplastics and thermosets, which are based on their polymerization behavior and structural features. Polymethyl methacrylate (PMMA) and other thermoplastic acrylics can be softened to be reshaped and heated, then solidified upon cooling, which makes them very useful for recycling. These thermoplastics are used for products optical lenses, display screens, and outdoor signage due to their excellent weather resistance, clarity, impact resistance, and plenty more.
Unlike the thermoplastics, thermoset acrylics undergo irreversible polymerization by heating, causing them to form a rigid crosslinked molecular framework instead. Thus, they are dimensionally stable, highly resistant to chemicals, as well as tolerating heat making these thermosets suitable for high-performance load-bearing applications, such as in coatings, adhesives, and composite materials. The tradeoffs between flexible structural strength, as well as recyclability determine whether to use thermosets and thermoplastics depending on the functional requirements of the intended application.
Developments reveal that thermoplastic and thermoset acrylic materials are being engineered with additives, such as nanoparticles, to expand additional properties like abrasion resistance and thermal stability. This advancement marks a shift in the needs of the modern manufacturing and engineering industries.

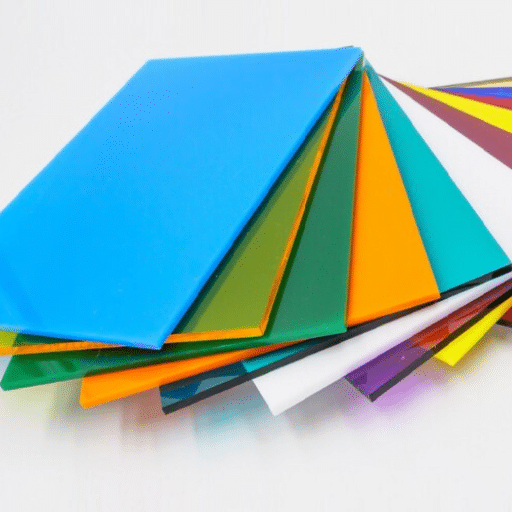

Different Types of Acrylic: Exploring Thermoplastic Varieties
The ability of thermoplastic acrylics to bend, be processed easily, and reformed with the application of heat makes them stand out. They are typically employed in lightweight and strong materials, which include parts of automobiles, display cabinets, and construction signs. Their weather resistance and optical clarity are also notable therefore they are great for external and visual applications. Also, thermoplastic acrylics align with industry recycling goals which makes them attractive for a variety of sectors. Their multifunctional attributes make thermoplastic materials popular in engineering and manufacturing.
Acrylic Resins and Their Various Formulations
Each type of acrylic resin is specially engineered for the intended application which makes them suitable for a range of formulations. The most each believed are thermoplastic and thermosetting acrylics. Polymethyl methacrylate (PMMA) as a thermoplastic acrylic resin can be used for products like signage and lenses because they possess high impact strength, UV stability, and optical transparency. Protective barriers also use PMMA. Thermosetting acrylics, on the other hand, are used intensively in coatings because of their strong adhesion, lasting chemical aggression, and general durability.
Methacrylate-butadiene-styrene copolymers and heat resistant grades are modified variants of non-linear rubber technology that have recently been developed, helping to extend their use to the aerospace and automotive industries. These innovations improve flexing, thermal stability, The abrasion resistance, and lowered volatile organic compound (VOC) emissions make these products of great interest for eco-friendly and sustainable manufacturing practices. The versatility of these products makes them important in modern engineering and product design.
Comparing Acrylic to Other Transparent Thermoplastics
Acrylic, or polymethyl methacrylate (PMMA), has unique advantages in comparison to other transparent thermoplastics like polycarbonate (PC) and PETG. Ascribed to high optical clarity, another transparent thermoplastic filler can achieve a light transmission of 92%, thus acrylic proves ideal when brilliance and transparency is essential for the application. On the contrary, polycarbonate is more impact resistant than acrylic but its optical clarity is usually lower. Further, polycarbonate’s yellowing susceptibility can be an eyesore for the long-term users.
While softening and deep drawing of PC makes it favoured in safety glazing as PC has an impact resistance of about 200 times stronger than glass, it gives PC a big advantage when using in riot shields and other high-stress use cases. Notably, PC protects more easily, and if uncoated with a guard will rapidly incur scratches. While acrylic offers better scratch resistance, it lacks strong surface treatment. Cresylic strengthens without further adjustments.
Looking at thermal performance, acrylic has a continuous service temperature of 160°F (71°C) whereas polycarbonate has a much higher tolerance of 240 °F (116 °C). PETG has moderate thermal resistance but excels in easy thermoforming applications, having lesser stress whitening compared to acrylic.
These materials also differ in cost effectiveness. For budgetary projects where impact strength is less needed, acrylic is more cost-effective than Polycarbonate. Conversely, PETG is more expensive than acrylic but mid-tier strength paired with easy processability makes it ideal for complicated medical trays or protective covers.
Acrylic works best in display cases, decorative applications, and signage due to their clarity and weather resistance. Polycarbonate and PETG are used when highly impact-resistant or complicated manufacturing is required. The choice of a transparent thermoplastic depends on factors like optical needs, mechanical maintenance, thermal considerations, and the price.
How Are Thermoplastic Acrylic Products Manufactured?
Acrylic thermoplastic products undergo polymerization, where acrylic polymers are formed through the the chemical bonding of methyl methacrylate (MMA) monomers. Sheets can be produced by extrusion or casting. Extrusion is heating acrylic resins and forcing the material through a die to uniform sheets, this method is preferable for high-volume applications. Casting involves pouring liquid monomers into molds and curing it which produces thicker sheets that are more customizable. The reproduced sheets undergo cutting, shaping, and thermoforming to suit the designs and applications they are intended for.
Injection Molding Techniques for Acrylic Plastic Parts
A widely known strategy to fabricate complicated shapes and intricate details of acrylic plastic is Injection molding. This method is praised for its high efficiency and precision focus repeatability. In this procedure, chunks of acrylic resin, in pellet form, are heated to high temperatures until they melt. The molten material is forced under high pressure into the cavity of a mold where it cools down and solidifies to take the desired shape. Better control of industry 4.0 era makes it possible to set and measure lower and upper limits of mold temperature, pressure of embedded injectors and even the pace of material pushing into the vessel ensuring stringent tolerances and reliable attributes of each individual component produced.
Airflow and movement due to varying temperature in such interventions create numerous challenges, one of which is called thermal flow resistance. Also extreme attention with partial or full aerial voids in plastics needs to be taken. The assumption that acrylic resins possess a lower melt flow rate than other thermoplastics has some validity, enabling slow filling of the mold with acrylic material due to the need for a mechanical pump controlling the amount of air and spaces left behind. Optimal results can be attained without issues such as moisture, gaps, or surface issues if the raw materials are exposed to a controlled dry environment and kept in adequate warm prior to processing.
Novel developments in mold design have enhanced the production of acrylic parts further. The addition of uniform cooling channel features, polished tool surfaces, and accurate gating systems contributes to ideal material flow as well as reducing the possibility of weak spots within the part. In addition, the ability to multi-axis integrate other materials with acrylic using two-shot and overmolding techniques is becoming more common for the production of complex parts. These parts can include medical devices, automotive lighting, and casings for electronics. Further refinements of these methods will enable the production of high quality and attractive acrylic parts for industrial and consumer needs.
Thermoforming and Fabrication Processes for Acrylic Materials
An example of such an adaptable and effective strategy for contouring acrylic sheets into intricate three-dimensional shapes is thermoforming. In this case, the application of heat is localized on the piece of acrylic being worked on, and it is heated to a specific softening temperature for each grade and thickness of the sheet, out of which, the range is usually around 275-350 °F (135°-177 °C). Once softened, the material is either placed over or in the mold and then subjected to several forces such as vacuum pressure or mechanical pressure which will pushed to the shape being desired. With the aid of powerful CAD/CAM computers, modern thermoforming is done by CNC machines which boosts precision and reproducibility giving a reliable tool for applications where there is tight tolerance like aerospace parts and optical displays.
Laser cutting, CNC machining, and bonding are some of the fabrication processes that add to the multi-functionality of acrylic materials. With laser cutting, intricate designs needed in electronics and signage are done effortlessly as edges require very little post-processing. CNC machining compliments detailed cuts with meticulous surface finishes. Acrylic parts can be bonded together with chemical and UV processes that are virtually indistrogable, preserving structural strength and optical clarity. These sophisticated techniques guarantee that acrylic withstands extreme requirements from industrial construction frameworks to inserts in medical apparatuses.
What Are the Key Characteristics of Acrylic as a Thermoplastic?
As a thermoplastic material, acrylic has the following defining characteristics that give it great versatility:
- Transparency and Optical Clarity – Acrylic is known for superior light transmission and transparency so great that it exceeds even that of glass which makes it ideal for numerous applications.
- Durability – Sustaining physical and optical properties in outdoor and demanding environments is possible due to high resistance to impacts, weathering and other forms of optical property degradation.
- Lightweight – While providing comparable strength to glass, acrylic is significantly lighter which makes it beneficial in instances where weight is of concern.
- Thermoformability – Falls under ease of use where the material can be distorted and softened by heat, also retaining mechanical strength which allows the creation of complex geometries.
- Chemical Resistance – Exposed to physical wear and tear, acrylic also resists most acids and alkalis ensuring its longevity.
- UV Resistance –Unlike other materials, does not yellow or degrade with UV sunlight making it fit for outdoor applications.
These attributes as a whole make acrylic a dependable and flexible material throughout different areas.
Optical Clarity and UV Resistance of Acrylic
Acrylic is famous for having one of the best optical clearness in materials, having a light transmission rate of around 92% which is higher than numerous other transparent substances like glass. It is used widely for undistorted visibility purposes and retaining clear acrylic can be accessed through screens and protective lenses. Moreover, acrylic is permitted to be eroded by solar radiation which is essential for keep the material clear over a prolong period of time. Specially engineered polycarbonate can resist yellowing, clouding, and deterioration, and the acrylic UV-resistant clear sheet claims to withstand staining for years when placed outdoors. It is become more advantageous in environments that are outdoor and need sunlight protected durability. The combination of superior optical clarity along with shielding from ultraviolet rays makes acrylic a major element in the construction, automotive, and consumer goods industries that require reliability throughout dimensions of temperature, weather and other external factors.
Temperature Tolerance and Heat Performance
Acrylic maintains its structure and clarity within a wide range of temperatures, demonstrating unrivaled tolerance to heat. Its deflection temperature (HDT) sitting at 200°F(93°C), grants its use in applications that require moderate need of heat protection.
Even higher thermal stress with no significant deformation or discoloration shall be endured by specially formulated variants of acrylic for other high-temperature scenarios. Low rate of heat conduction makes it more suitable in places where thermal management is critical and does not easily transfer heat to other materials. Its exact nature makes it great for glazing, protective barriers, and automotive parts which require extreme precision and high mechanical strength with variable temperatures.
Common Applications of Thermoplastic Acrylic Materials
- Glazing and Safety Barriers
Acrylic is extremely popular in construction and design since it has a low density and weight which greatly eases the handling and transport of materials for construction, along with being perfect as a protective shield in various commercial and residential places such as shops, homes, and public building like schools, made further desirable due to other factors such as low mass, transparency .
- Automotive Components
Light covers, instrument panels and the entire trimming in the vehicle’s cabin also make use of this material. Its mechanical strength and quality maintenance under UV exposure increases the useful life and performance of these parts.
- Signage and Displays
Illuminated signs, retail displays and point-of-sale displays are made of acrylic because of its clarity and simplicity when requiring engraving, cutting or molding. They look and function as intended, even in the open air.
- Medical and Laboratory Equipment
Thermoplastic acrylic’s chemical resistant properties coupled with the ability to be sterilized, make it ideal for use in medical devices, laboratory apparatus, as well as protective shields ensuring dependability in critical functions.
- Optical Applications
Acrylic is useful in making lenses, light diffusers and other optical devices owing to the excellent light transmission properties required for precise functioning in visual systems or lighting apparatuss.
Acrylic in Construction and Architecture
The best trait of acrylic is that is balances the modern touches with a natural feel as it is aesthetically pleasing. In addition, it is commonly utilized in the manufacture of roofs, overhanging transparent shields, and railings, since it is extremely thick and keeps its strength without shattering. Also, unlike many materials, acrylic does not change color, making it far better than traditional optical components which turn yellow and lose their efficiency with age.
In addition, the possibility of using acrylic sheets as raw plastic materials is endless as they can be repeatedly thermoformed into more complex geometric shapes which provide custom architectural features such as designed curves for the panels and sophisticated dividers. They are weatherproof, capable of withstanding years of exposure to the sun, rain, and fluctuating temperatures without yellowing or deterioration, which saves on maintenance costs over time. The use of acrylic in barriers that absorb sound also benefits from its acoustic insulation features.
Continuous developments in the manufacturing of acrylic including the newly added features of UV resistant coating and smart features such as technologies for diffused lighting shift its place in changeable construction to more innovative accents of sustainable building practices. The newly added features place acrylic as a reliable component of construction materials while enabling it to support cutting edge architectural designs and green building initiatives.
Medical and Consumer Product Applications
As a result of its versatility and biocompatibility, plastic is widely used in consumer products and medical instruments, making it central to the industry. Its use stretches as far as dental and orthopedic implants which makes it popular in medicine due to its lightweight and clear properties that helps ease the patient’s experience. Additionally, new progress in polymer engineering enables the creation of plastic that contains antimicrobial surfaces enhancing the ability to guard sterile zones in hospitals and laboratories.
Acrylic’s scratch resistance, optical clarity, and malleability toward intricate shapes bolster its use in consumer products, furniture, and even protective barriers, allowing producers to achieve elegance while maximizing functionality. Furthermore, its durability due to external weathering or abrasions is enhanced with impact-modified acrylic, making it even more ideal. These factors highlight modern acrylic’s appeal and adaptability to technology and lifestyle changes.
Reference Sources
-
Reactive Processing of Acrylic-Based Thermoplastic Composites1:
- Key Findings: Acrylic-based thermoplastics like Elium® offer advantages such as recyclability, room-temperature processing, and superior impact resistance compared to thermosets. They are particularly promising for large structures like wind turbine blades.
-
Innovative Acrylic Thermoplastic Composites2:
- Key Findings: Glass fiber-reinforced acrylic thermoplastics demonstrated superior impact resistance and damage tolerance compared to traditional epoxy and polyester composites. The addition of acrylic copolymers further enhanced performance.
Frequently Asked Questions (FAQs)
Q: What are the most common faqs about acrylic?
A: Common faqs about acrylic include questions about its properties, applications, and differences between cast acrylic and extruded acrylic.
Q: How is acrylic extruded?
A: Acrylic can be extruded through a thermoplastic method, where the material is heated until it becomes pliable and then forced through a die to create sheets or shapes.
Q: What is the difference between cast acrylic and extruded acrylic?
A: Cast acrylic is made by pouring liquid acrylic resin into a mold, resulting in a thicker and clearer sheet, while extruded acrylic is made by forcing acrylic through a die, producing a thinner sheet that is easier to machine.
Q: What are the main advantages of using acrylic over thermoset plastics?
A: Acrylic offers several advantages such as good impact resistance, lower weight (half the weight of glass), and excellent weatherability, making it suitable for various applications like pop displays and canopies.
Q: Can acrylic be painted with acrylic paints or emulsion paint?
A: Yes, acrylic can be painted with both acrylic paints and emulsion paint. However, proper surface preparation is necessary to ensure good adhesion.
Q: Is acrylic shatter-resistant like glass?
A: Yes, acrylic is known for its shatter-resistant properties and exhibits glass-like clarity while being much lighter and safer than glass.
Q: What solvents can affect acrylic materials?
A: Acrylic can be affected by corrosive solvents, such as acetone or certain hydrocarbons, which may cause damage or crazing to the surface.
Q: How easy is it to fabricate and machine acrylic plastic sheets?
A: Acrylic plastic sheets are easy to machine due to their thermoplastic nature. They can be cut, drilled, and shaped with standard tools, allowing for versatile applications in plastic fabrication.
