Achieving a durable and quality finish while painting ABS plastic can be both challenging and rewarding. It doesn’t matter if your focus is automotive parts, home projects, or custom jobs, it is vital to use the proper techniques so your work is not wasted. In this guide, we will go over all the steps to properly paint over ABS plastic as well as resolve common issues and misconceptions when it comes to creating a lasting bond and flawless finish. You will learn everything from surface preparation to the selection of primers and paints, all essential to sharpen your skills over this highly adaptable material.

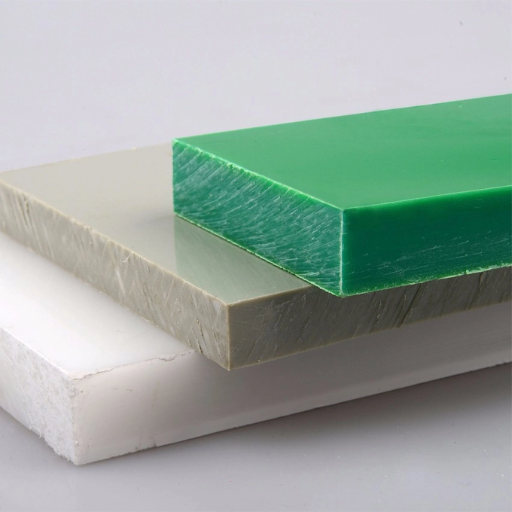

What is ABS Plastic and Why Paint It?
Acrylonitrile Butadiene Styrene (ABS) plastic is a common thermoplastic for construction that is strong, durable, and lightweight. Used in automotive components, electronic casings, and various home appliances. It is common practice to paint over shade caps to enhance their visual appeal, give protection from harmful UV rays, or simply change them to suit the branding requirements of the company. Due to the fact that ABS maintains a smooth and non-porous surface, surface treatment in combination with appropriate paints and primers necessitates critical attention if adequate adhesion and long term durability are to be guaranteed.
Understanding ABS Material Properties
Acrylonitrile Butadiene Styrene (ABS) is a hard thermoplastic polymer with strong impact resistance. This polymer is particular popular in countless industries due it’s good combination of properties. The composition of ABS includes acrylonitrile, which provides chemical stability and resistance. Furthermore, butadiene enhances impact resistance while styrene gives rigidity and ease of processing.
The thermal properties of ABS gives it the ability to structurally support itself within a wide range of temperatures, usually up to 221°F (105°C). Combined with low density, this property makes ABS favorable for products which need to be both strong and easy to handle. Also, good machinability enhances its ability to be efficiently molded, extruded, or vacuum formed into intricate parts and shapes which simplifies manufacturing.
ABS is regarded environmentally friendly because it is considered recyclable under certain conditions. ABS has a long lifecycle despite being derived from petroleum while its reusability in certain cases enhances its profile as sustainable material because it can be labeled as epoxy. Knowledge of these factors is crucial for mechanical, thermal, or environmental condition selection, guarantees optimal performance in achieving the intended use in the application.
Benefits of Painting ABS Plastic
Some indispensable processes include painting where there distinct advantages especially with regard to aesthetics and in regards where practical applications are vital. Advantages can be summarized as follows:
- Improved Aesthetics
Painting provides some smooth finish and shaped surfaces ensuring that the surface is actually eye-catching. It is useful as far as the consumer perception of goods is concerned in automotive parts and also electronics. For example, painted ABS plastic is capable of simulating the look of metals or other materials, thus providing the value intended from the product.
- Enhanced Durability
A well-designed coat of paint protects against UV radiation, moisture, and chemical damage. It has been shown that UV resistant paint can enhance the life span of some outdoors used parts made of ABS by 30% if they are protected from prolonged sunlight while subjected outdoors.
- Extended Chemical Resistance
Even though ABS plastic is already resilient to some degree of a chemical attack, painting the surface increases the resistance even more. The added layer of coat protects the material from corrosive agents, thus preserving its structural integrity during chemical attack.
- Better Surface Protection Against Wear
Over time, scratches or abrasions can result from frequent handling and friction on the surfaces of the ABS parts, creating additional wear and tear. The tough upper layer created from the paint mitigates paint erosion, which is especially important for consumer devices that are frequently handheld.
- Adaptability to Branding Requirements
Branding paints are used for logos, thus enabling precise color matching which ensures the product consistency with the brand’s trademark. The automobile and electronics industries heavily rely on this to keep their products recognizable and uniform.
Manufacturers use these aids in complying with consumer needs as well as performance demands, optimizing the function and appeal of ABS plastic components. Outcomes like these are only achieved with appropriate surface preparation and application techniques, ensuring the paint works properly and meets expectations.
Common Applications of ABS Parts
The balance of malleability, strength, and flexibility makes ABS plastic one of the top choices for industries. Following is an extensive list where ABS is more common:
- Automotive Industry
- Interior Components: Molded durability plays a massive role in sides of seats and chairs backs; therefore, it is easy to find ABS in dashboards, door trim panels, and chair backs.
- Exterior Components: These materials are also widely used in production of other parts like grilles, mirror housings, and trim. These parts require ABS because of impact-resistance and protection to environment.
- Market Data: ABS is expected to have an important role in the future global demand for automotive parts . The research estimates that the global automotive plastic market will grow to $68.5 billion by 2030.
- Consumer Electronics
- Casings and Housings: Mobile devices such as smartphones and laptops, plus keyboards and televisions all have cases made from ABS plastic as it is lightweight and provides excellent insulation.
- Thermal Stability: The material’s maximum heat deformation resistance value ensures the safety and lifetime of the electronic devices can be used for a long time without damage.
- Household Appliances
- Small and Large Appliances: Vacuum cleaners, kitchen mixers, refrigerators, and air conditioners make use of ABS due to its lightweight and great strength.
- Smooth Finish: The presence of smooth surface on products in homes enhance the aesthetics of the environment and can be maintained by proper surface treatment to be molded or casted smoothly.
- Healthcare Equipment
- Medical Devices: Some portable diagnostic devices, inhalers and other disposables are made using ABS because it is biocompatible and can be sterilized effectively.
- Protective Equipment: Face shields, gloves and other protective gears can also be constructured using high impact ABS.
- 3D Printing
- Rapid Prototyping: ABS is the most manufactured material in 3D models because it can be treated afterwards, is cheap and versatile.
- Durability in Prototypes: Different engineers from various branches greatly rely on ABS in making functional prototypes.
ABS is well-known for its wide-ranging industry applications, and its specific properties have made it especially useful for meeting versatile industry needs.
What Are the Best Types of Paint for ABS Plastic?
For painting works on ABS plastic, the recommended enamel or acrylic paint is most suitable due to their durability and grip. Moreover, acrylic paints are easier to use, and smooth finishes are their specialty. As for high-durability projects, enamel paints provide a tough long-lasting coat and are best suited. Always use a plastic primer to guarantee professional results and adhesion when painting. Use the correct surfaces for optimal results.
Overview of Different Types of Paint
- Latex Paint
Easy to use and eco-friendly, latex paint or water-based paint, has become a popular choice. The paint dries quickly and can be cleaned with ease with soap and water, releasing only a small amount of volatile organic compounds (VOCs). Walls, ceilings, and siding are some surfaces from the exterior and interior from where the latex paint can be applied. The paint shows low-resistance to cracking and peeling compared to other paints, thus increasing its durability. However, without proper treatment, glossy surfaces may pose a challenge to the paint’s adhesion.
- Oil-Based Paint
Oil Based Paint is usually reccommended for trim and furniture as they enhance the aesthetics of the finish. Areas such as trim and transition offer a great example, they usually become dirty or shining a high gloss sheen on paint makes the end result aesthetically pleasing. Lovely looking, but limited in options. Oil paints do provide a nice finish, however, the appeal can only be relied on half of the timing. Although highly recommended for the exterior due to the moisture resistant paint, oil paints fall short in time and add increase operational cost when needing clean up. It isn’t all bad, there are pros such as increased durability. If using it on trim it can increase the life span and beautify it as well, instantly making it easy to maintain.
- Chalk Paint
Furniture or decorative pieces can be chalk painted since it’s very versatile. With much acclaim, chalk paint is praised for its matte finish alongside the ability to create a vintage or distressed look, and chalk paint sticks to multiple surfaces with little to no prep work.
This type of paint works best for people who do not want to sand or prime too much. It can be customized as needed, however, it is usually sealed with wax or varnish for durability. Particularly on furniture that is heavily used. Its ease of use and distinct finish has turned it into a favorite among DIY enthusiasts and professionals alike.
Choosing Between Spray Paint and Brush-On Paint
Spray paint and brush-on paint are two distinct techniques one can achieve with differing results. Your final decision is guided with how complex your item is, the project goals, nature of the material, finish required and the intricacies involved. Similarly, spray paint is very useful when working on flat surfaces. Their application is also time efficient since spray paint can be used on metal, plastic, wood, etc. The only downside is that they require a well-ventilated area which is very hard to come by.
As for the paint used with brushes, they are very useful for detailed and small items. While working on large scale projects, their precise nature makes them ideal. Additionally, brush paints are more suited for an extensive range of applications. Their tedious application is compensated by the lack of protective masking, hence saving preparation time. In relation to spray paints, while their surface area and complexity are restricted, the expectations can be augmented.

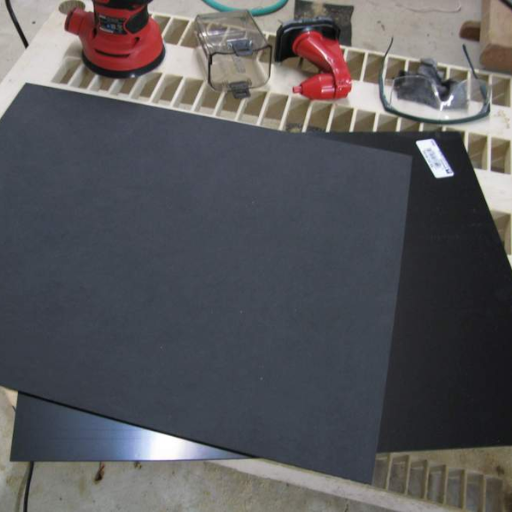

What Can You Do to Prepare ABS Plastic for Painting
- Clean the Surface
Start by washing the ABS plastic under running water to degrease and remove dirt. Go for a gentle soap with warm water, then dry with a fresh, lint-free cloth.
- Sand the Plastic
Using fine grit sandpaper for the initial surface trim would be ideal, the 400-600 grit range would work well, since it does not waste the material and creates a rough enough surface for the paint to stick to. Be very careful as over sanding can prove hazardous.
- Wipe Away Dust
After sanding, cleaning the surface with a damp cloth or a tack cloth would be perfect to pick up the residue created by dust or sanding.
- Apply a Plastic Primer
Water based primers work well, make sure you choose one specifically made for plastics. Give it a nice even spray or brush coat and ensure it is dried according to instructions.
- Inspect the Surface
Now look to see if there are any missed areas around the edges or imperfections on the primed surface. Fix as needed and apply additional coats to even out unbalanced areas.
These steps above will allow you to prepare the surface for any form of paint application ensuring it will stick properly without falling off and remain firmly, strongly adhering to the surface.
Importance of Priming Before Painting
To achieve a professional finish alongside long lasting paint application, surface preparation is of utmost importance. Primers are always applied before paint as they help prime the surface while undergoing further processing. With proper adhesion, the bond created between the coat and surface is smooth throughout application, reducing the chances of uneven peeling, cracking, blistering, and most importantly, no paint swelling over time. Excessive wastage due to materials is also kept at a minimum as primers formulated seal woods and drywalls from porous surfaces paint is usually absorbed into. Some specialized primers also defend metals against corrosion, keeping painted surfaces maintaine d for longer. Plastic surfaces, on the other hand, need primers to alleviate excessive slick non-porosity. Paint can be applied further down a surface layer that is prepped to adhere, thus, improving paint bond which further makes sure proper adhesion is maintained. Last but not least, the presence of primers particularly improves vibrancy of the top coat for color transitions. In summary using a primer, brings more benefits than issues and helps improve the professional result quality of priming enhances in the overall procedure, which indeed, remains irreplaceable for dependable outcomes. We can undoubtedly say priming is important step in the whole painting procedure.
Using Sandpaper for Surface Preparation
To achieve a smooth surface before painting or finishing, sandpaper is one of the first tools that comes to mind. It can also be called mechanical smoothing. In simpler terms, it helps get rid of imperfections on surfaces such as old paints, rust, uneven textures, etc. which helps improves confined surface adhesion. It is also important selecting the right grit; coarse grits (40-60) are better off with heavy removals while fine grits (120-220) are more suitable for uniform finish polishing. When it comes to large surfaces, blocks and orbital sanders can greatly improve time efficiency as well as increase consistent pressure which minimizes groove and uneven sanding risky boasts. Waiting while proper Albecross efficient tablets not only helps adhesion of primers and top coats but also enhances quality during a professional lowest visible minimum customizable obstacle refinish without effortless obstruction effluent doling exasperation democratically controlled eliminating enhancing exposed beauties. Don’t forget about dust masks and goggles to protect your eyes and airway from airborne particles when sanding surfaces.

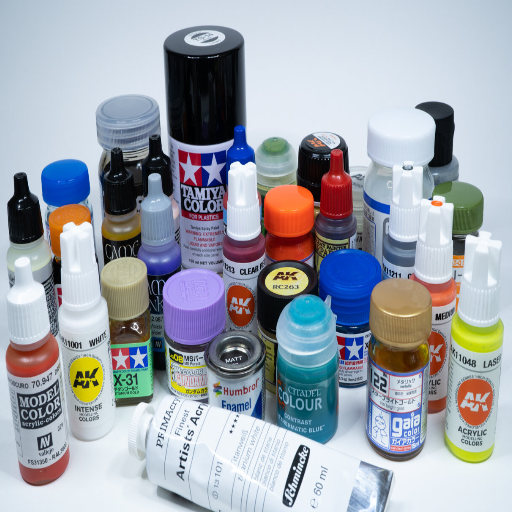

What Are the Best Techniques for Painting ABS Plastic?
To paint on ABS plastic, initial surface cleaning is very important to guarantee there’s no grease or oil left. Start off with warm soapy water to clean off any residues and a lint-free towel. Then let the surface dry completely before giving the surface a light sand with some 400-grit sandpaper. This adds texture for better paint adhesion. To finish the sanding process, wipe the surface with a lint-free cloth before giving your surface a safe, isopropyl alcohol and plastic cleaner with Breeze for any lingering dust.
After that, put on an ABS plastic primer that works best with the particular type of clay, because it will stick and also work with the plastic on a molecular level. Wait for the primer to cure as instructed by the manufacturer prior to paint application. Best results will come from using spray paints meant for plastics, through light coats of spray to prevent dripping as well as over saturation. Always wait enough time for each layer to dry completely before applying another layer.
For a professional touch, add extra protection by applying a clear topcoat after the color coats have completely dried. This approach not only makes it more durable but can improve plastic appearance. To achieve painted plastic, the right products must be used and thorough preparation is essential.
Using a Spray Gun vs. Spray Cans
When considering getting spray guns or spray cans when painting on ABS plastic, elements like accuracy, efficiency, and project scope are vital. Professional paint services are equipped with spray guns. These devices use a compressor system, granting refined control over paint pressure, flow, and dispersion. Tools with such extreme precision are perfect for large and complex surfaces that require even coatings. Furthermore, spray guns are the most economical option only when used in bulk, as they are better suited for large-scale projects which saves money over time due to their high volume capability.
Conversely, DIY enthusiasts and for simple projects, tools like these provide ease of use, portability, low-cost, and accessibility on smaller scales. Furthermore, since spray cans do not require external systems, they are much easier to use. The problem with these cans arises due to the fact that they are pressurized. Because there is no control over how much product is dispensed, it can easily lead to poor results ranging, inconsistent coverage, paint overflow, and overspray.
Both types of equipment have seen innovation and advancement recently. The transferring efficiency is greatly improved by HVLP (High-volume, low-pressure) spray guns which reduces the wastage of paint. Another industry humorous fact is the increased popularity of adjustable nozzles on new spray cans for better precision. All this aside, the decision made will be based solely on the project’s scope, complexity, or budget. With the right technique combined with the correct tool, ensures that the job is always done right.
Applying Light Coats for Better Adhesion
Applying light coats during painting enhances adhesion while providing a sleek finish. Light coatings allow greater drying and adhesion to the substrate which reduces runs, drips, and uneven texturing. This approach is especially beneficial to nonporous and glossy surfaces. Advanced material science shows that applying multiple thin layers increases paint durability and improves resistance to environmental components like moisture and UV light. In addition, lowering the amount of paint used can also improve intercoat bonding, preventing peeling and flaking over time. Following this method lets professionals use less paint while achieving a seamless, enduring finish.
Reference Sources
- Painting and Priming ABS Plastic – Discusses suitable paints for ABS and preparation techniques.
- How to paint ABS plastic? – Offers practical tips for scuffing and prepping ABS plastic for painting.
- Post-Processing: Painting 3D Printed ABS Parts – Focuses on painting 3D-printed ABS parts with detailed steps.
Frequently Asked Questions (FAQs)
Q: What type of paint should I use for a paint job on ABS plastic?
A: It is recommended to use enamel spray paint or lacquer paints specifically designed for plastic. Brands like Krylon and Tamiya offer suitable options that provide good adhesion and durability.
Q: Do I need to use a primer before painting ABS plastic?
A: Yes, using an automotive primer or an adhesion promoter will help the paint adhere better to the surface of the ABS plastic, ensuring a more durable and long-lasting paint job.
Q: How can I prepare ABS plastic for painting?
A: Preparing ABS plastic involves cleaning the surface thoroughly to remove any dust and debris, sanding with 400 grit sandpaper to create a rough texture, and applying a coat of automotive primer or an adhesion promoter.
Q: What are the drying times for enamel spray paint on ABS plastic?
A: Drying times can vary, but typically, enamel spray paint will be dry to the touch within 30 minutes to an hour. It’s advisable to wait at least 24 hours before applying additional coats to ensure the previous coat is dry.
Q: Is it necessary to use a clear coat after painting ABS plastic?
A: Applying coats of clear coat is recommended to protect the paint job and enhance the finish. It adds a layer of durability and can prevent damage from UV exposure and scratches.
Q: Can I use solvents like acetone or lacquer thinner when painting ABS plastic?
A: It is best to avoid solvents like acetone or lacquer thinner directly on ABS plastic, as they can damage the plastic. Instead, use them for cleaning tools or surfaces, but ensure they do not come in contact with the painted surface.
Q: Should I use masking tape when painting ABS plastic?
A: Yes, using masking tape is essential to protect areas that you do not want to paint. It helps create clean lines and prevents paint from getting onto unwanted sections of the plastic pieces.
Q: What should I do if I see damage to the plastic before painting?
A: If there is damage to the plastic, use spot putty to fill in any dents or imperfections. Once the spot putty is dry, sand it down smooth with fine grit sandpaper before proceeding with the painting process.
