ABS plastic, known as Acrylonitrile Butadiene Styrene, is one of the most popular thermoplastics everywhere. Its demand comes from its great impact resistance, strength, and temperature tolerance. ABS is used for manufacturing things from consumer electronics all the way to automotive components. The main reason of its widespread adoption is the exceptional balance between tensile strength and durability. This article focuses on the most important properties of ABS plastic as a high-performance material, its mechanical properties, and how these are tested and applied in everyday life. This practical guide examines why these attribute give uncoupled advantage for critical manufacturing regions, providing engineering and product design professionals, and even curious individuals stepping into material science, insight into the cornerstone of why ABS is relied on time after time.

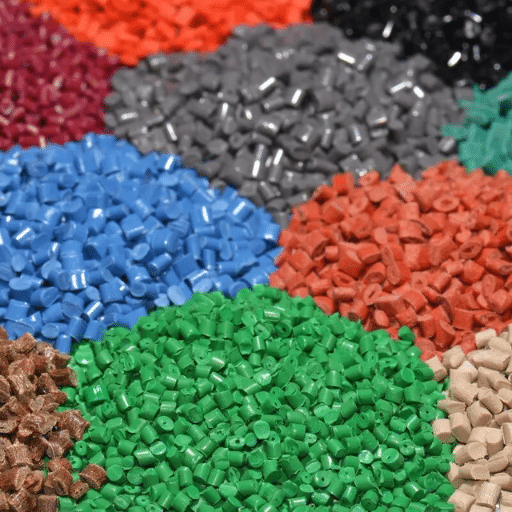

What is ABS (Acrylonitrile Butadiene Styrene) Material?
Acrylonitrile, butadiene, and styrene, the three monomers used to produce ABS (Acrylonitrile Butadiene Styrene), undergo a polmerization process wich results in a carbonate thermoplastic polymer. Its combination with other particularos make is incredibly resistant to impact and harsh impact, heat, friction, and does not break easily. Its fully mixed form mix plaster alloy synthetic rubbers which break rubber and become soft in low termperatures give it a unique blend of substances. Being able to withstand rough use; like in automotive parts and other important ABS is remarkable.
Definition and Composition of Acrylonitrile Butadiene Styrene
Acrylonitrile Butadiene Styrene, or ABS, is a popular thermoplastic polymer because it has a blend of useful mechanical properties and is easy to manufacture. The butadiene component gives ABS exceptional impact resistance, even at low temperatures. Acrylonitrile is responsible for providing strong chemical, oil, and high temperature resistance, allowing ABS to excel in harsh environments. On the other hand, styrene increases rigidity, and the surface of the styrene can be easily painted, textured or left plain.
Because of these advantageous properties, ABS is widely used in different sectors. An example is in the automotive industry, where the material makes its way to dashboards, trim parts and wheel covers. ABS’s ability to sustain mechanical stress at low weights enables it to perform as required. The electronics sector also uses ABS in the manufacturing of enclosures and housings for computers, televisions and mobile phones, which require insulation and durability. Besides, ABS has a large share in toys, medical devices, and other consumer products which makes it a vital material for countless applications.
ABS also Compatible with injection molding as well as 3D printing processes, further securing its standing as a favored substance in industry and commercial manufacturing. Its value in contemporary engineering and design is attributed to the ease with which it can be processed, recycled, and modified by changing the ratio of the copolymer components.
Key Properties of ABS Plastic
- Mechanical Strength and Impact Resistance
Like all other thermoplastics, ABS has a unique characteristic of being tough and capable of enduring impact. Its tensile strength is no less than 30MPa and can rise to 50MPa which guarantees its mechanical reliability and ductility dampens catastrophic fractures by accepting impact energy.
- Thermal Stability
This thermoplastic also exhibits remarkable thermal stability with a glass transition temperature near to 105°C. Moderately chamical thermal conditions will not distort the shape, and even further permit it to be enhanced with flame-retardant additives for high demand temperature applications.
- Chemical Resistance
On top of all these benefits, ABS also boasts having exceptional tensile strength that resists a variety of chemicals such as acids, alkalis, and popular oils. This greatly extends its life in corrosive conditions. On the contrary, strong solvents such as acetone and ethylene dichloride will cause it to degrade, making it less versatile.
- Lightweight and Processability
ABS has a very balanced weight-to-density characteristic, with a density of about 1.04 g/cm³. Its outstanding melting flow index permits easy processing during injection molding and 3D printing, guaranteeing reliable manufacturing results.
- Surface Finish and Aesthetic Versatility
ABS is simple to paint or dye while achieving smooth or matte finishes, which improves its visual attributes. Secondary operations like plating or coating also enable use in applications that demand a high or metallic gloss finish.
All these attributes helps classify and recognize ABS as an important, versatile material suitable for both general and more complex engineering needs.
Applications of ABS Material in Industry
From the balance of thermal stability, mechanical properties, and cost incurred, ABS (Acrylonitrile Butadiene Styrene) is easily adopted by multiple industries. The following are its primary applications:
- Automotive Industry
Because of its low weight, fuel economy gets a boost. In addition, the ability of ABS parts to withstand impact makes sure that they will be able to endure the mechanical stress that will be put on them during operation. According to industrial statistics, about 12-15% of the total plastics consumed in modern vehicles is made up of ABS and its derivatives.
- Consumer Electronics
The casing and internal components of electronics such as TVs, laptops, smartphones, and cameras use ABS plastic. It provides heat resistance and excellent electrical insulation which protects sensitive components. Further, it is easier to manufacture appliances because parts do not require an aesthetic finish. It is estimated that 35% of ABS production is used in electronics.
- Household Appliances
Circulating devices and tools, like vacuum cleaners and kitchen equipment also utilize ABS to some extent. Its durability alongside the complex shapes that can be molded out of it makes it economically ideal for manufacturers. Also, it helps in achieving advanced designs without compromising on the practical functionality of such devices.
- 3D Printing
For 3D printing, there are various materials to choose from, but ABS proves to be the best due to ease of processing and the strength it possesses. Not only does it allow for making strong prototypes to be built, but also functional parts. Its popularity even in small-scale manufacturing is due to its ability to withstand further treatment such as sanding or smoothing with acetone.
- Medical Equipment
Equipment like inhalers and compressors use ABS, along with a few other non-implantable surgical devices. The use of ABS in these is because it is resistant to harsh chemicals, has the precision needed to create complex equipment molds, and is easily shaped. The rest of the body contact devices accessories are usually off-limits for ABS due to biocompatibility issues.

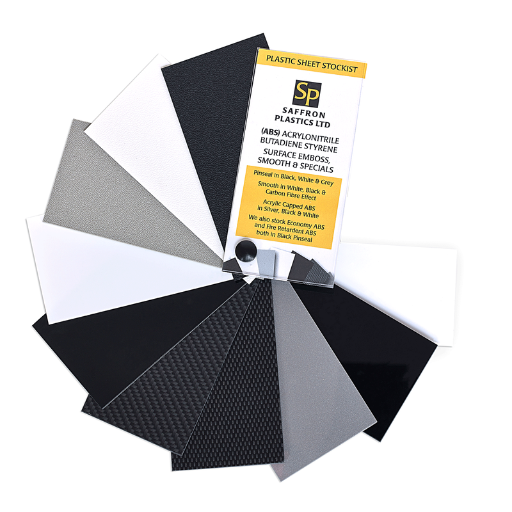

What Are the Mechanical Properties of ABS?
ABS is valued for its balanced mechanical properties. Here are its mechanical characteristics:
- Tensile Strength: Typical for most plastics, the tensile enduring capacity of ABS is rated moderately at 40-50 MPa which places it as a durable plastic.
- Impact Resistance: Possessing high impact resistance aids in shock absorption and cracking during impact.
- Flexural Strength: ABS exhibits strong resistance against bending which aids in structural integrity.
- Hardness: ABS is useful at the moderate surface hardness. It is soft enough to be easily processed.
- Thermal Stability: ABS is not good for high temperatures but up maintainted below 100℃, works perfectly.
The manufacturing sectors, especially automotive and consumer electronics, favors ABS because of its lightweight and various benefits.
Understanding Tensile Strength in ABS Plastic
Tensile strength affects the maximum pulling load ABS plastic can withstand without breaking, making it a very important mechanical property of the material. From about 40 to 50 MPa, more specific formulation and grade of the plastic determines the tensile strength value. This quality also ensures that the material is strong enough for structural parts exposed to moderate mechanical forces. Temperature, strain rate, and even the presence of filler materials can have a substantial impact on the tensile performance of ABS. For example, recovering forces may weaken the intermolecular forces at high temperatures near glass transition point (~105°C) leading to loss of strength. On the opposite end, tensile strength is gained with the addition of reinforcing fillers such as glass fibers broadening the scope of use for ABS in harsher conditions. Considering all of these factors is key to picking the right grade of ABS for structures subjected to mechanical loads.
Impact Strength and Durability of ABS
One of the favorable attributes of ABS is its impact strength which makes it useful in applications where mechanical shock resistance is critical. The impact resistance of Thermoplastics and Composites is strengthened by the presence of remarkably tough rubbery polybutadiene phase in styrene-acrylonitrile matrix. It also remains tough at lower temperatures, making it suitable for outdoor use.

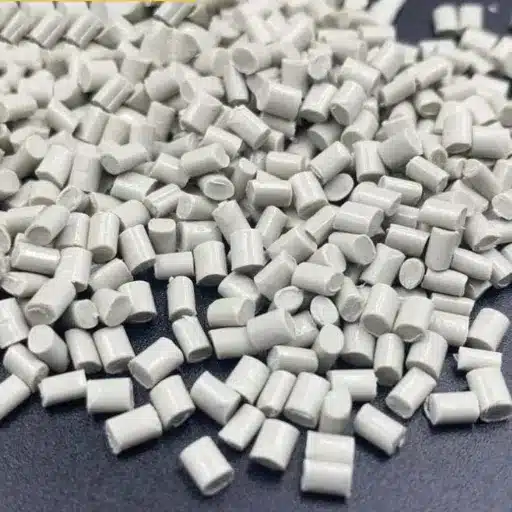

Some new developments include high impact ABS grades, or polycarbonate blends which increase the strength and moldability of the base material. They showed better thermal and mechanical endurance. A number of modification impact strength comparisons revealed improvement from 50% to around 75% over older grades showing these materials can be more widely used in car parts, protective gear, and industrial tools.
Consistant exposure to social environmental factors, abs plastic materials undergoes certain changes over time. Considered a drawback, this has been countered by developing specialized UV-stabilized and weatherable ABS formulations with additives that prevent photodegradation of the polymer. Advanced Photodegradation Protection ABS ensures longer service life outdoors which expands the strenght and reliability of ABS used in different industries. Analysis of selection criteria based on these modified properties guarantees an optimized impact strength to hardness ratio tailored to specific performance criteria.

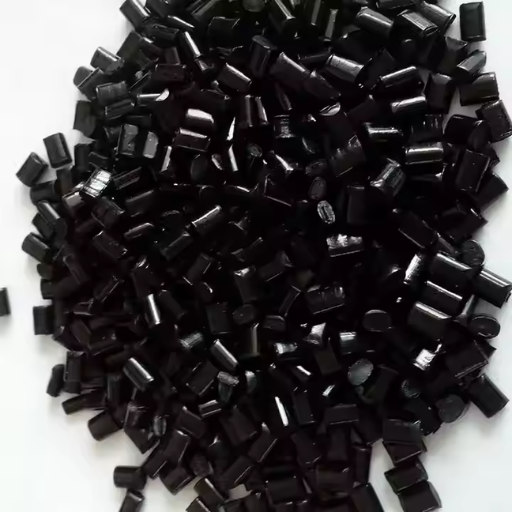

How Does ABS Perform in 3D Printing?
The advantages of 3D printing using ABS plastic parts includes impact resistance, heat resistance, and structural durability. 3D printing using ABS is also preferred where functional pieces with high resilience are required. Another benefit of 3D printing using ABS, is its durability along with the versatile features of the material itself. However, when compared with PLA, ABS is rather challenging. When printing with ABS, the heating parameters must be spot on as it requires a specific temperature range. An example of this is the need for a heating bed as well as a closed print chamber; A lack of these components can lead to warping or cracking during cooling. Regardless of the difficulties, ABS is still considered a reliable option for parts that require consistent strength and durability.
Benefits of Using ABS Filament for 3D Printing
The filament type also has many benefits making it a popular choice for different 3D printing purposes. The advantages are listed and explained below:
- High Impact Resistance
ABS is famous for its impact resistance and durability and is best suited for creating hard parts and prototypes such as car parts, tools, and protective covers.
- Heat Resistance
Being one of the globe’s most used plastics for 3D printing, PLA cannot measure up to the heat-resilient ABS. Having a glass transition temperature of 105°C (221°F), ABS operates in industrial and mechanical environments, proving useful in scenarios where the objects are subjected to moderate heat.
- Ease of Post-Processing
Post-print modifications to parts made with ABS are a walk in the park. They can be sanded, drilled, or machined and remain in one piece, permitting greater customization options. Further, smoothing techniques such as acetone vapor treatments are also applicable, leaving the model with polished, professional surfaces, devoid of layer lines.
- Cost-Effective Material
Hobbyists and professionals alike will find abs 3d printer filament appealing to the pockets, especially when compared to some advanced engineered plastics. As previously mentioned, ABS serves multiple purposes, and for anyone requiring dependable and economically sensible prints, it serves as a welcome treat.
- Chemical Resistance
Exposed parts and industrial uses of components subject to harsh environments makes uses of sorts in the industry. ABS also resists a number of chemicals including some acids, bases and oils.
Automobile, consumer electronics, and prototyping industries make constant use of ABS filament because of the benefits it offers. These factors firmly establish it within the many materials used in 3D printing. Its versatility in construction makes it stand out among other 3D printing materials.
Challenges in Printing with ABS Plastic
While advantages of ABS plastic are aplenty, its chemical properties can make printing with it more difficult. One such case is warping, where a material cools at an uneven rate causing the layers to contract and peel off the print bed. This issue often faces dimensional inaccuracies or resulting in failed prints. To control this, a set temperature, heated print bed and surround with adhesives must be supplied.
Fumes are another problem during printing. Fumes, specifically VOCs (Volatile Compounds), are released from the surface of a warm 3D printed ABS model, which may be harmful over long periods of exposure without adequate air circulation, whilst these emissions are enclosed in an environment, for example, warmth may also provide outer protection. Containing these emissions though enclosures with vents helps reduce these fumes.
Also, softer or aged 3D printers may not be able to handle the higher extrusion temperatures needed for ABS, ranging from 220-250°C. Stronger, more advanced printers will have no issue meeting these temperatures, but maintaining proper print speed and cooling without setting strong airflow is crucial. Precise measurements are also necessary for the flawless prints.
Finally, the tendency for—and the amount of—shrinkage ABS exhibits during its cooling phase is troublesome for larger objects as well as designs that need tight tolerances. Reliable shrinkage and precise-predictable dimension prints need extra care due to the extensive nature of the calibrations. These challenges are not facing manufacturers as long as they posses the knowledge needed to overcome material challenges.

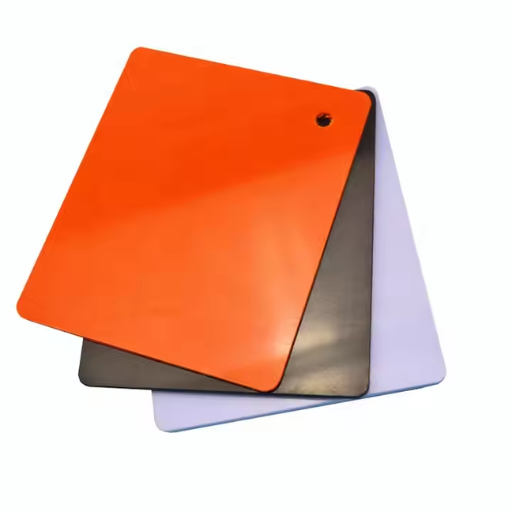

What Factors Affect the Tensile Strength of ABS?
Several primary factors influence the tensile strength of ABS:
- Material Composition: For every three components, acrylonitrile, butadiene, and styrene , the primary composition of thermoplastic acrylonitrile butadiene Styrene (ABS) determines the tensile strength. The greater the ratio of acrylonitrile, the better the performance.
- Temperature: Known to improve ductility, elevated temperature can reduce tensile strength, yielding softer ABS. While lower temperatures run the risk of rendering brittle material.
- Additives: The addition of stabilizers, or fillers alters the mechanical properties of ABS. The amount and type of the additive determine if tensile strength is lost or gained.
- Processing Conditions: Due to external fabrication parameters such as extrusion temperature, mold geometry, and rate of cooling, tensile properties of ABS undergo relative changes.
- Moisture Absorption: Humid conditions are known to weaken the structure of ABS by moisture absorption which reduces tensile strength over time.
To achieve performance targeting mechanical durability, tensile strength must be optimized in accordance to the highlighted factors above. Modifications in composition, processing and even handling can serve to greatly enhance tensile strength for certain identified cases.
Influence of Temperature and Processing Methods
The overall performance and tensile strength of ABS (Acrylonitrile Butadiene Styrene) is affected by temperature and the specific processes used during its fabrication. The mobility of polymer chains, structure, and rigidity are factors affected during elevated temperatures. Tend to increase brittleness which is the material’s impact resistant property at lower temperatures.
The Role of Polymer Composition in ABS Properties
1The composition of acrylonitrile butadiene styrene (ABS) significantly determines its mechanical, thermal, and chemical properties. ABS is a copolymer composed of three monomer units—acrylonitrile, butadiene, and styrene—each contributing distinct characteristics. Acrylonitrile enhances chemical resistance and thermal stability, while butadiene provides toughness and impact resistance due to its rubber-like qualities. Styrene contributes to the material’s rigidity and ease of processing.
The ratios of these monomer constituents can be modified to optimize ABS for particular uses. Durability for industrial use under harsh conditions requires higher acrylonitrile content. On the other hand, consumer products like automotive parts protective casing benfit from greater impact strength derived from increased butadiene content.
Filling and reinforcing glass fibers or carbon nanotubes is now possible due to other achievements in polymer science. Higher mechanical rigidity, strengthened thermal performance, and increased dimensional stability also means more ABS applications for high-performance engineering. Precision on the amount of composition changes and additve changes also means better tailored products for other industries.
Reference Sources
-
Experimental Characterization of Tensile Strength of ABS Parts Manufactured by FDM1: The study analyzed the tensile strength of ABS parts produced using Fused Deposition Modeling (FDM). It found that the maximum tensile strength of 3D-printed ABS was approximately 92% of the nominal material strength. Layer bonding was weaker, with only 79% of the strength compared to axial loading.
-
Tensile and Flexural Strength Testing for Biomimetic Robotic Applications2: This research focused on the tensile and flexural properties of ABS for biomimetic robotic applications. It highlighted the suitability of ABS for complex designs due to its mechanical properties.
-
Improvement of Plastic Properties by Blending Waste Microplastics into ABS3: The study demonstrated that blending waste microplastics (10-25%) into ABS improved tensile strength, with the highest tensile strength recorded at 49.38 MPa.
Frequently Asked Questions (FAQs)
Q: What are the key material properties of ABS plastic?
A: ABS plastic is known for its excellent mechanical properties, including high tensile strength, good impact resistance and toughness, and a high modulus of elasticity. These properties make it suitable for a wide range of commercial and industrial applications.
Q: How does the modulus of elasticity relate to ABS material properties?
A: The modulus of elasticity of ABS indicates its stiffness and ability to deform under stress. A higher modulus means that ABS will be stiffer and less prone to bending, making it ideal for demanding applications.
Q: In what ways is ABS considered an engineering thermoplastic?
A: ABS is classified as an engineering thermoplastic due to its excellent mechanical properties, resistance to impact, and ability to withstand higher heat compared to other plastics. This makes it suitable for various industrial applications.
Q: Can ABS plastic be used in manufacturing processes that require high precision?
A: Yes, ABS is easy to machine and can be used in manufacturing processes that demand high precision. Its good formability allows it to be molded into complex shapes, which is beneficial for technical data and specifications in engineering.
Q: What are the three monomers that make up ABS plastic?
A: ABS plastic is a copolymer made from three monomers: acrylonitrile, butadiene, and styrene. The combination of these monomers contributes to its unique material properties, including impact resistance and toughness.
Q: How does the impact resistance of ABS compare to other plastics?
A: ABS has excellent impact resistance, making it superior to many other plastics. This property, along with its toughness, allows it to perform well in applications that require durability and resilience.
Q: Is ABS resistant to solvents, and how does that affect its applications?
A: ABS has moderate resistance to solvents, which can affect its use in environments where exposure to certain chemicals is expected. Understanding the solvent resistance of ABS is crucial for determining its suitability in specific applications.
Q: What makes ABS a popular choice for 3D printing?
A: ABS is commonly used in 3D printing due to its excellent mechanical properties, ease of machining, and good electrical insulating properties. Its ability to withstand higher heat also makes it a preferred material for creating durable prototypes.
