Acetal – this is probably the most characteristic qualitative feature connecting the anatomical with the engineering. In terms of the range of acetal solutions, the rounded contours of the strap are one of the most, if not the most, known and used in the pharmaceutical and other industries. However, what is the distinction between these materials, and how can one find out which one is most appropriate for the work at hand? All of this will be addressed in this post by delving into how specific Delrin is to other types of acetals, viz-a-viz Delrin specifically. So, this index also concerns them, focusing on why and what materials need to be used for the exact equipment, such as shafts and seals, with precision.
Introduction to POM and Its Properties
The material is essentially an engineering polymer called acetal, which is extremely high-performance and is known for high strength, low friction, and excellent stability in dimensional characteristics. Moreover, what adds to its utilization is its good chemical compatibility with a number of solvents, fuels, and weak acids that is characteristic of POM, along with outside engineering, and the automotive field precisely. Apart from that, POM comes in two forms. First is homopolymer (basically known as Delrin) and the second is copolymer, and both come with slight variations in physical and chemical properties, giving them a place for different applications.
What is Polyoxymethylene (POM)?
Polyoxymethylene or POM can be described as an advanced engineering plastic that is well known for having high strength and stiffness while keeping dimensional stability. As one of the plastics commonly called acetal resins, Pom exhibits a low friction coefficient and excellent wear performance properties which are appropriate for repetitive motion and stress of precision parts. In addition, the structure of POM is a polymer formed from formaldehyde units that enhances its characteristics, such as high crystallinity and reliable performance across different conditions.
The materials and chemical resistance properties of POM allow for a wide range of applications that cross many disciplines. For instance, it is mostly utilized in the manufacturing of gears, bearings, fasteners, and medical device parts within the automotive and industrial sectors, as well as consumer electronics. The chemical nature of POM ensures that its properties are maintained over a wide range of temperatures and many solvents, oils, and fuels, which makes it suitable for use in an adverse environment. The capability of the material can be supported with some modifiers, such as glass fiber and PTFE, for more specific use.
Material Properties of POM
- Mechanical Properties:
- Tensile Strength: Yield strength of this material is from 60 to 80 MPa depending on the reinforcement type.
- Flexural Strength: 90-120 MPa.
- Impact Strength (Charpy, notched): Typically 5-10 kJ/m².
- Hardness: Rockwell hardness of M80-M90.
- Thermal Properties:
- Melting Point: Approximately 175°C (347°F).
- Heat Deflection Temperature (HDT): At 1.8 MPa load, typically around 110-120°C.
- Thermal Conductivity: Approximately 0.31 W/m·K.
- Coefficient of Thermal Expansion (CTE): 1.1 × 10⁻⁴ /°C.
- Chemical Resistance:
- Many solvents, oils and fuels do not attack the polymer segments.
- It is weak against strong acids, bases and oxidizers.
- Very good hydrocarbon and organic media resistance, including most automotive personnel and industrial chemicals.
- Friction and Wear Properties:
- Coefficient of Friction (static): Approximately 0.15-0.25, depending on surface conditions and lubrication.
- In particular when combined with reinforcement such as PTFE or silicone oil, it exhibits low wear.
- Electrical Properties:
- Dielectric Strength: 20-35 kV/mm.
- Volume Resistivity: ≥10¹³ ohm·cm, classifying POM as an excellent electrical insulator.
- Dielectric Constant: 3.7 (at 1 MHz frequency).
- Density:
- About 1.41 g/cm³ – 1.43 g/cm³. This accounts for most of the same durable yet light characteristics.

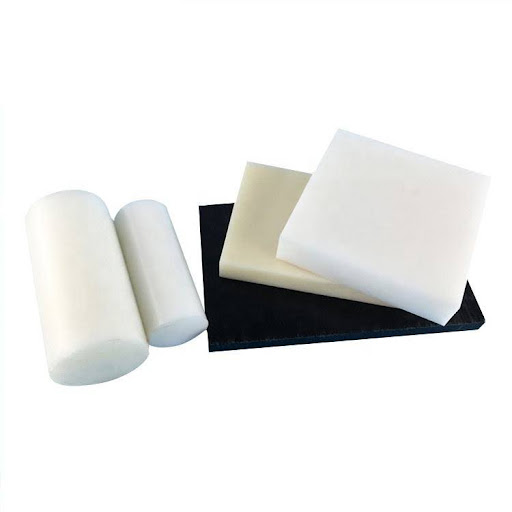

POM Applications Across Industries
- Automotive Industry:
- It is a copolymer used for durability and better resistance to tensile stresses in wheel covers, fuel tanks, handles, car TV, and fender fairing mounting brackets.
- Consumer Electronics:
- Whenever in need of electrical connectors and housings, Polyoxymehtylene can come in quite handy due to its excellent dimensional stability as well as electrical insulation.
- Medical Equipment:
- Common components are, for instance, syringes and other forms of administration devices, laparoscopic devices, internal fixation devices and many more due to the fact that the material is chemically inert and biocompatible to living tissues.
- Industrial Machinery:
- The product is also used in the manufacturing industry to make materials such as belts of different types, bearings and other pump equipment due to the fact that it exhibits a low coefficient of friction and has a high compressive and bending strength.
- Home Appliances:
- It can be used more for the interior inflections of a refrigerator such as for handles, latches, and bearing for the absence of stimulus stress and weariness.
POM in the Automotive Industry
Many factories use plastic (especially Polyoxymethylene) in the production of vehicles because of its ability to work under intensive pressure. This material also shows exceptional thermal resistance as well as withstanding abrasion and creep. Acknowledging the major challenges in the automobile industry by economical and fuel efficient technologies, lightweight as well as precise point of application is pivotal for replacing parts of metal and other materials with plastic composites. The primary sectors of application include gear trains, fuel lines, and seat belts, in which its higher strength and better crack resistance lead to improved life of the products.
It should also be noted that the low friction coefficient and self-lubricating aspects of POM are very useful in the manufacture of assemblies with movable components such as CV joints, sliding tracks, and window pants, and as a result, it enables the reduction of noise and less maintenance. With the increase in the number of electrically fuelled vehicles, POM usage is emerging as one of the key quests by manufacturers, even as the need for materials that aid in debulking and thermal resilient behavior.
POM Uses in Electronics
- Connector Housings and Frames
For example, when it is necessary to house electrical connectors – ever tighter – POM is the best mate in this so far as it is stiff and exerts excellent insulating properties, particularly in its bulk applications. It is because any involved resistor, when stressed and under different temperatures, will not fail as the structural integrity of the POM will be maintained.
- Microswitch Components
The very high precision and abrasion resistance of POM material make it the best material in such cases as the production of switch parts, and in particular, actuation mechanisms and hubs. Arc mechanisms are widespread in household appliances, cars and industrial instruments.
- Cable Insulation
Due to its high resistivity and resistance to solvents, POM is suitable for insulating materials used in cables, especially in severe conditions.
- Gears in Printers and Other Devices
POM is also ideal for use as a small transmission gear in some electronic equipment and gadgets. It operates with minimal wear and loss of efficiency even without lubrication due to its low coefficient of friction and wear resistance.
- Sensor Housings
Being a light but robust material, POM is often used to craft sensor housing elements. It is resistant to water, dust, and mechanical impacts which is why it is often utilized in industrial, automobile, and electronic sensor technology.
- Battery Holders

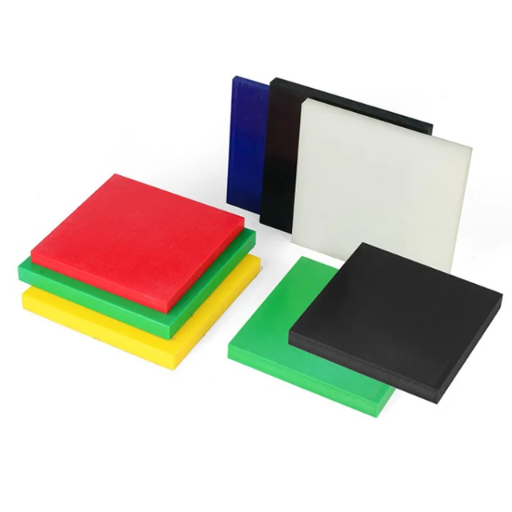

Comparing POM with Equivalent Materials
More recessed applications include POM grates, central locking systems in checkered patterns, door handles, and many more.
- POM vs. Nylon
This applies primarily to polyoxymethylene, which is one of the engineering plastics; such material has the most positive qualities in agreement and friction among the said materials, specifically ensuring the fatigue wear. However, its properties do not come close to those of nylon or any other composite products.
- POM vs. Polypropylene (PP)
Though, POM allows less humidity to enter the material, hence it does not change shape that easily when the system is moist. I have no idea why however, nylon, which is considered much stiffer and provides the required levels of strength and resistance becomes more flexible under moist conditions leading to problems in precision oriented components.
Clearly, POM is characterized by a higher tensile modulus and a lower elongation at break relative to polypropylene. PP is soft and flexible when compared to POM, though it has a good weight loss and can retain its strength in complicated environments.
Key Differences Between Acetal and Delrin
Parameter |
Acetal |
Delrin |
---|---|---|
Material Type |
General acetal resin |
Specific DuPont brand of acetal |
Strength |
High tensile strength |
Slightly higher tensile strength than standard acetal |
Friction |
Low friction properties |
Optimized for reduced friction in mechanical applications |
Wear Resistance |
Good wear resistance |
Superior wear resistance for demanding applications |
Moisture Absorption |
Low but slightly higher than Delrin |
Extremely low moisture absorption |
Chemical Resistance |
Resistant to solvents and chemicals |
Enhanced resistance to chemicals |
Cost |
Generally lower cost |
Higher cost due to brand and performance |
Dimensional Stability |
Stable under varying conditions |
Increased dimensional stability under stress |
Thermal Performance |
High heat resistance |
Improved thermal stability |
Applications |
Suitable for general mechanical components |
Ideal for precision, high-stress applications |
Alternative Materials: Polyketone and More
Very lately, Polyketone (PK) has been discovered to be a significant replacement for high-performance engineering plastics. Its intrinsic resistance to wear and tear is one of the most essential aspects contributing to this acknowledgment, even in the most severe environmental conditions. Changing up materials requires selecting a polymer with a low friction coefficient for driving applications such as gears and boring involving micro components. It also enhances mechanical properties, provides high wear and chemical resistance, especially to hydrocarbons and some other materials identified as aggressive to native polymers, thereby outperforming many conventional polymer materials.
The materials can provide a good stock of plastic, such as UHMWPE, PTFE, and Polypropylene, and these materials provide some excellent properties in certain specific areas. UHMWPE is commonly used inside industrial or engineering materials such as conveyor systems and medical implants, as it has excellent impact resistance and great resistance to environmental stress cracking. In turn, PTFE does not undergo a chemical reaction under extreme temperatures and is therefore used in applications such as seals, gaskets, and surfaces that are not sticky. These advanced materials help in designing the structure and achieving the technical properties that may not be reachable in conventional polymer,s such as acetal and polypropylene.

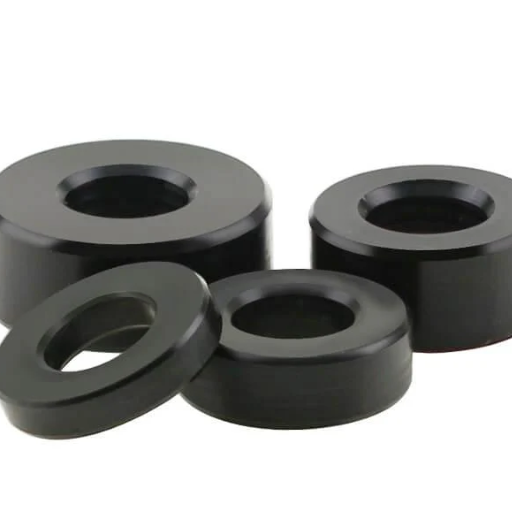

Sustainability and Toxicity Issues
When talking about environmental responsibility, the question of what to do with extended wear objects and products such as UHMWPE and PTFE becomes relevant because these are synthetic polymers that are hard to degrade, and there are also emissions from high-performance polymers such as UHMWPE and PTFE. It is hard to recycle such materials, as per the current environmental policy, these materials can take quite a long time to biodegrade. Throwing away these materials results in an increase in environmental pollution. Also, the cause of waste in the production of PTFE may occur from the use of PFCs, which are unsafe to animal and human health and stay in the atmosphere for long periods.
Toxicity Considerations in POM and Its Alternatives
Polyoxymethylene (POM), a high-performance engineering plastic, has been extensively employed in different applications due to its superior mechanical strength and ease of processing. Furthermore, good dimensional stability and good chemical resistance are also characteristics of this plastic. Every plastic that has been chosen properly will have its own challenge. The challenge with POM is that it is quite toxic in the course of its use and subsequent disposal. Additionally, when such a plastic is subjected to high amounts of heat, the organic compounds give off fumes and may affect the health of whoever is in contact with said fumes for an extended period of time. To guarantee the safety of the employees, there is a need to observe strict regulations in the omnio processing and the provision of adequate ventilation so that there is increased cross-flow and movement within the workplace.
Polyamides, Polyethylene terephthalate (PET), and other related polymer variants have been recommended as safer substitutes for the traditional POM, but are not completely free from issues. For example some modified polyamides may contain formaldehyde—even though they are supposed to be free from this compound. The generation of harmful substances on the decomposition of PET is also less than that of POM, such that this polymer can be applied in a more eco-friendly way.
The toxicity of polyoxymethylene and its potential alternatives, including the blending of other polymers, requires a complete life cycle of such materials, which also includes their production, usage, and disposal. As the technology advances, both polymerization and coloration of the materials are also advancing towards being free of potentially toxic materials and more environmentally compatible ones. There also exist policies and programs that encourage the use of less polluting and healthier or cleaner polymers.
Sustainability Issues Without Sacrificing Performance
The combination of material or product consideration and sustainability has always been the pivotal matter in polymer research and development. Traditional engineering polymers; for example, polyoxymethylene (POM) owes its market preference to its high tensile strength, high temperature resistance, and excellent chemical resistance. Nevertheless, such materials have a drawback, which is their large dependence on fossil resources’ raw materials, which are non-renewable and pose an environmental problem. The corrective measures to sustainability challenges involve utilizing non-synthetic monomers and encouraging recycling of the materials so as to lower the intensity of the carbon footprint while at the same time guarding the essential performance specificities.
There is a likelihood to strike this balance thanks to developments in the field of biopolymers and chemical recycling, such that bio-derived polyoxymethylene made from bioethanol and polyoxymethylene equivalent of petro-based origin may have similar mechanical and thermal properties. Moreover, depolymerization technologies as well as the paradigms of the circular economy make it possible to reclaim and enrich the properties of the post-consumer polyoxymethylene and use such materials again without other resources.

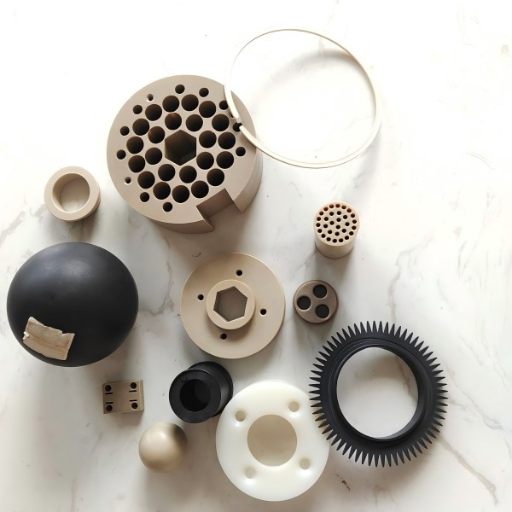

3D Printing with POM and Alternatives
Utilizing 3D printing with polyoxymethylene (POM) is advantageous due to the excellent mechanical properties possessed by this plastic, which are high in terms of strength, stiffness, and chemical resistance among other areas. However, problems such as the inability of POM to sustain a shaped form during printing and the need to have certain environmental control methods, like a heated bed and an enclosed build chamber, bring about fewer applications of the material in normal 3D printing processes.
Benefits of 3D Printing with POM Materials
- High Mechanical Strength and Durability
POM which is also known as polyoxymethylene, displays disproportionately high mechanical characteristics besides the exceedingly long life span, where a high level of stress and friction is plausible. Its inherent durability means longer utility of the product – with mechanical stress – compared to other materials – which is why gears, bushings, and mechanical components are always made out of it.
- Low Friction and Excellent Wear Resistance
One of the specific properties of POM that makes POM the most user-friendly polymer for many applications is its inherent tendency of very low friction which allows parts to such as rolling parts to eliminate wear. This explanation i.e use of moving parts in the hotter areas of the unit minimises maintenance and facilitates very clean working of the machines or automotive systems.
- Dimensional Stability
With its impressive low moisture pick-up character, POM also achieves and sustains its very good dimensional stability under different environments. This characteristic is very specific to certain applications that require the objects to be exactly of the defined shape, even in the presence of water and changes in temperature, which helps in its uses.
- Chemical Resistance
Damage to POM with chemical elements or other substances is rarely possible, and that includes fuel oils and hydrocarbon solvents, as even lubricants cannot harm it. This is why POM’s use has also broadened considerably in sectors like automotive, aerospace, and consumer electronics, where the environment is too aggressive for beauty or expensive materials.
- Enhanced Precision in Complex Geometries
The precise composition of POM affords the ability to 3D print complex surfaces. This form of printing ensures that the resulting artifacts are of high resolution quality which is useful in making prototypes or installed components for which specific designs are in place.
Challenges and Considerations in 3D Printing
The only limitation to this potential is, however, the necessity to fulfill some requirements when using this modern manufacturing process. The use of three-dimensional printing is characterized by several disadvantages that must not be overlooked. One of the most prominent of them is the issue connected with their employment of various materials. The fact is, there is no cutting-edge technology that would permit the quality printing of research and development of new materials (thermoplastics, PEEK, nylon, etc.) because most materials would sag and cause misalignment at high temperatures. This is even more pronounced when using more specialized polymers or composites.
Reference Sources
-
Material Transfer of POM in Sliding Contact: This study explored the material transfer mechanisms of POM-C during sliding contact with stainless steel. It was found that material transfer is initiated by mechanical interlocking of metal asperities into the polymer.
-
POM Mechanical Properties: This chapter from the “Polyoxymethylene Handbook” discusses the mechanical properties of POM, including its stiffness, tensile strength, and wear resistance. It highlights the impact of additives and processing conditions on these properties.
Frequently Asked Questions (FAQs)
Q: What are the mechanical properties of acetal plastic?
A: Acetal plastic, known as polyoxymethylene (POM), exhibits excellent mechanical properties such as high strength and rigidity. It is often chosen for applications requiring good fatigue resistance for cyclic loads. The material’s semi-crystalline structure contributes to its toughness and impact resistance, making it ideal for various engineering applications. In addition, acetal copolymer offers improved machinability compared to homopolymer acetal. When considering material selection, it’s essential to evaluate the specific application and the temperature range the material needs to withstand.
Q: How does delrin® compare to other types of materials?
A: Delrin®, a brand name for homopolymer acetal, is frequently compared to other plastics due to its superior mechanical strength and rigidity. When comparing acetal vs. other engineering plastics, Delrin® stands out for its lower coefficient of friction and excellent wear resistance. Its crystalline nature enhances its performance in various applications, and it is also easier to machine than many alternatives. While materials like nylon and polycarbonate offer their own advantages, Delrin® remains a good alternative for specific applications requiring tight tolerances and robust performance.
Q: Are there toxicity and sustainability issues without using acetal?
A: When considering alternatives to acetal, it’s crucial to address potential toxicity and sustainability issues without compromising performance. Certain plastics may release harmful substances during production or disposal, raising concerns about environmental impact. Acetal, particularly Delrin®, is known for its lower residual formaldehyde content compared to other polymers, making it a safer choice. However, some alternatives may be less environmentally friendly or less durable, leading to increased waste. Always evaluate the sustainability of materials like acetal copolymer in the context of your specific application to make an informed decision.
Q: What are the advantages of using acetal copolymer over homopolymer acetal?
A: Acetal copolymer offers several advantages over homopolymer acetal, especially in terms of impact resistance and processing capabilities. The copolymer variant exhibits improved toughness and lower centerline porosity, making it suitable for applications where durability is critical. Additionally, acetal copolymer is often easier to extrude and can withstand a broader temperature range than its homopolymer counterpart. While both materials share excellent mechanical properties, the choice between them depends on the specific requirements of the application, including machining considerations and environmental exposure.
Q: What is the significance of surface finish in acetal polymer applications?
A: The surface finish of acetal polymer plays a vital role in its performance in various applications. A smooth surface finish can enhance the material’s aesthetic appeal while also reducing friction in moving parts, which is particularly important in mechanical components. When using acetal, achieving the desired surface finish can be more manageable due to its excellent machinability. However, variations in the manufacturing process, such as injection molding or machining, can affect the final surface quality. Understanding the importance of surface finish is essential for ensuring optimal functionality and longevity in the specific application of acetal materials.
