Understanding the tensile strength of ABS plastic: Key Properties and Applications

Analyzing the mechanical properties of materials is crucial while choosing them for a specific purpose in engineering, manufacturing, or 3D printing. The thermoplastic material that is most widely used is ABS plastic. Its exceptional strength, durability, and versatility combined make it one of the most preferred materials. Like most engineering materials, acrylonitrile butadiene styrene has a number of mechanical characteristics some of which include tensile strength which determines how well the material performs under multi-axial loads, as well as defining its applicability in construction. This blog will offer an in-depth analysis of the absolute (or sectional) tensile strength of ABS plastic, its basic properties, and how these properties are integrated into applications within different industries. If you are in industry like product design, engineering or materials, this guide should serve you well. It offers fresh perspectives which will enable you to make the right choices when working with ABS in your designs.

What are the key properties of ABS plastic?

The versatility of ABS plastic is greatly attributed to the exceptional balance of strength, toughness, viscosity, and impact resistance it possesses. Some of its salient features include

• High Impact Resistance: This means a component made from ABS can withstand signficant impact forces without cracking or breaking which is highly desired in a number of applications.
• Good Tensile Strength: Depending on the nature of loads applied on the components, it should be able to sustain considerable tension, when necessary, to support its application in structural elements.
• Heat Resistance: This plastic is known to withstand moderate levels of heat and maintain its shape at lower temperatures, although extremely high temperatures will make it susceptible to distorting its shape.
• Chemical Resistance: It endures damage from acids, such as alkali, and oil, giving it some strength under different conditions.
• Lightweight: Because of its strength, ABS also relatively low in density, resulting in its usefulness in designs of lower weight.

With these characteristics, ABS is exceptionally reliable when used in automotive tools, as well as in personal electronics and industrial machinery.

What makes acrylonitrile butadiene styrene unique?

Thermoplastics Acrylonitrile Butadiene Styrene is unique when compared to others because how well it integrates processability and structural integrity. The polymer blend comprises of acrylonitrile, butadiene and styrene parts which when mixed creates a component that keeps the chemical resistance and rigidity of acrylonitrile, the flexibility and toughness of butadiene, and the glossy finish as well as ease of processing of styrene. Because of this synergy, acrylonitrile butadiene styrene is capable of providing an unprecedented impact strength, heat resistance and even machinability.

Furthermore, these features provide unparalleled impact strength alongside machinability. The unique combination of properties in ABS makes it the material of choice for demanding applications. The unique combination of properties in ABS makes it the material of choice in construction, 3D printing, and the healthcare sector.

Key mechanical properties of ABS material

1. Tensile Strength

Typically, ABS comprises of 40-50MPa and maintains tensile strength within the same range. The ability to endure significant pulling forces makes it favorable to load carrying applications. The extreme range of being molded makes it easier to meet countless customer demands.

2. Flexural Strength

Achieving 65-95 MPa flexural strength makes ABS resistant to bending forces helping retain structural integrity under flexural loads. Flexural strain aids in holding significant weight.

3. Impact Strength

ABS has outstanding impact resistance and can take 200 J/m of Izod impact strength depending on the notch type. This means it can do really well in places where shocks and sudden impacts are a common phenomenon.

4. Elongation at Break

Alongside other features, the elongation at break for ABS makes it a flexible tough material for multiple applications. It’s also adaptable to demand as the elongation falls in the 10-50% range.

5. Hardness

The Rockwell R scale puts the hardness of ABS between 90 and 110 and this suggests it resists surface indentation and scratching remarkably.

These detailed properties outline best the reliability and versatility of ABS across different industries where strength, durability, and flexibility are crucial to operational needs.

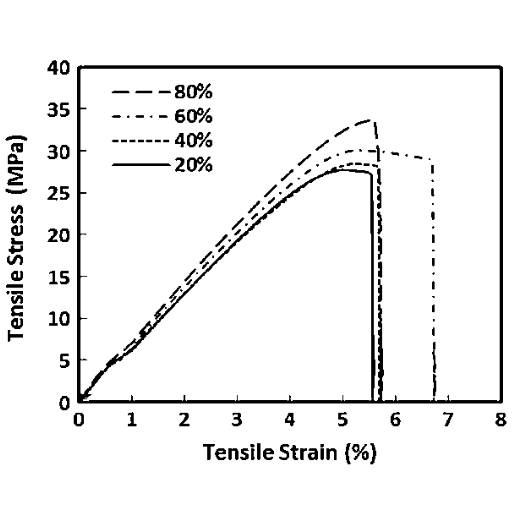

How does tensile strength affect ABS plastic?

Tensioned break strength determines the performance and reliability of ABS plastic, directly impacting its ability to withstand tension. Endurance of significant stretching or loading without fracturing makes higher tensile strength more useful for applications requiring durability under mechanical stress. Insufficient tensile strength will enable material failure or deformation under heightened stress, limiting its use in harsh conditions. This characteristic is especially important in engineering purposes where the ABS must be safely subjected to some load without providing failure structure.

What is the high tensile strength of ABS?

Typically, high tensile strength of ABS (Acrylonitrile Butadiene Styrene) is observed to be between 29 to 48 MPa (megapascals) with a particular formulation and manufacturing process greatly influencing the domain. Addition of fillers, reinforcements, or variations in polymer blends greatly affects these values. Having robust tensile strength makes the ABS extensively useful for applications such as automotive components, consumer electronics housings and piping systems, which require resistance to mechanical loads. Various fields of industrial work and engineering prefer to use it because of its ability to high stress while retaining dimension stability.

Comparing tensile strength with other thermoplastics

Factors influencing the tensile strength of ABS

The various factors influencing the tensile strength of ABS (Acrylonitrile Butadiene Styrene) are incredibly critical to the material’s mechanical performance and its ability to bear stress. Here are explanations along with data that depict these factors:

1. Material Composition

The Acrylonitrile, Butadiene, and STRYENE ratio has a direct influence on the tensile strength of Impact resistant ABS. These in conjunction with other factors determine what grade of impact resistant ABS will be produced. For example, an increase in the amount of Acrylonitrile does improve rigid strength, but an increase in Butadiene does improve impact resistence. Impact resistant ABS has a tensile strength value of 40MPa – 50 MPa.

2. Processing Conditions

The environment during processing such as the temperature, how fast the item cools down, as well as the pressure while molding also has a big effect on the material’s overall tensile strength. If an improper cooling rate is used, a weak material will arise due to residual ring stresses. These available partial stresses could be directed towards improving adhesion at the interface of two bonded materials. Proper conditions would lead to general adherence on the atomic level which results in improved adhesion from a molecular level and the overall strength of the part.

3. Additives and Reinforcements

Adding in other materials like glass or carbon nanotubes also drastically increases the overall tensile strength. An Example of this being glass filled ABS composites with a tensile strength of over 70 MPa in comparison to other standard ABS grades.

4. Environmental Factors

The polymer’s molecular structure is slowly weakened by exposure to UV radiation BASF, burnable plastics, and high humidity. Weakening of this polymer is further worsened by chemical agents. Renting a microwave can also damage fabrics and flats because complicated plastics pass harsh environments. But paints with UV stabilzers or anti-corrosion coatings greatly make it better under tough conditions.

Considering these aspects during the selection and processing of materials allows engineers to enhance the tensile strength and general dependability of ABS in certain uses.

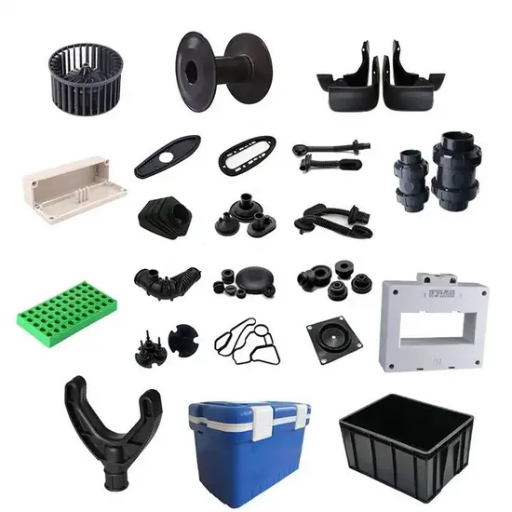

What are the industrial applications of ABS?

The impact resistance and toughness of ABS plastic, along with its simplicity to process, makes it a great choice for many industries. The major applications are as follows:

• Automotive Components: Bumpers and dash panels are made from abs plastic. It has good durability and wear resistance.
• Consumer Electronics: This material is well-suited for the structural plastic housings and other components for computers, mobile TVs, and even mobile phones because of its strength and beauty.
• Appliances: Refrigerators, vacuum cleaner casings, and other household appliances routinely make use of ABS as it is light yet strong.
• Toys: Notably used in products such as LEGO bricks, ABS is prized for it’s safety as well as it’s structural strength.
• Piping and Fittings: Widely used for plumbing and industrial piping as it has great resistance to chemicals, temperatures and can easily hold up substances with varying degrees of viscosity.

The diverse properties of ABS make it extremely easy for manufacturers and consumers to make use of it.

Common uses in automotive parts

The favorable balance between strength, impact resistance, and cost of Acrylonitrile Butadiene Styrene makes it one of the most sought-after plastics in the automotive industry. Used in the making of almost all the internal components like dashboards, door trims, and seat backs, ABS serves the dual purpose of withstanding a lot of wear and tear while looking good. Additionally, ABS is employed in exterior parts like mirror housings, trim panels, and grill components as it is durable when exposed to impact and environmental factors. The lightweight properties of the material also assist in improving fuel economy, making it attractive for modern vehicles designed with sustainability as a priority. It is these factors along with newer advances in manufacturing techniques, which make and will continue to make, ABS an important contributor to meeting the functional and cosmetic needs in automotive settings.

Role in 3D printing and consumer products

The use of ABS plastic became widespread owing to its adoption in 3D printing for making custom consumer goods and functional prototypes. It can endure mechanical stress due to its high tensile and impact strength along with practical applications. Furthermore, ABS retains form throughout the printing process as it does during the printing process, with its glass transition temperature lying between 105℃ and 120℃. Lastly, ABS is lightweight, easy to post-process and also has professional results.

As for consumer applications, ABS supports a broad range of items from smartphone cases and children’s toys to kitchen appliances. Its ability to repeatedly endure stress while retaining mechanical integrity provides value for use in high-wear environments. Recently developed variants of ABS have improved other important factors such as UV stability and lower emission rates during production. Combining these modified attributes strengthens the credibility of these plastics in 3D printing and mass-produced consumer products. These advancements assure that ABS remains a leader in material technology for industries seeking low prices without sacrificing quality.

ABS in commercial and industrial applications

ABS (Acrylonitrile Butadiene Styrene) is used in a wide range of industries as it is cost effective, flexible, and performs well. In the automotive sector, bumper covers, instrument panel covers, as well as other interior components of vehicles and heavy transport machinery, are made with ABS due to impact resistance and low mass. The electronics industry is no different; Abe is used to manufacture cases for tvs, computers, and even mobile phones because it is incredibly stiff and insulating.

3D printing is one of the key areas of application due to the popularity of ABS as one of the most commonly used thermoplastic resins because of its strength, ease of post-processing, and ability to form complex geometries. Further, it is extensively used in the production of consumer goods such as toys, kitchen and storage containers owing to its high strength to weight ratio and aesthetic adaptability. New developments in the sustainability of manufacturing, such as enhanced flame retardance or more efficient recyclability of certain grades of ABS compounds, make it highly appealing for use in eco-sensitive industries.

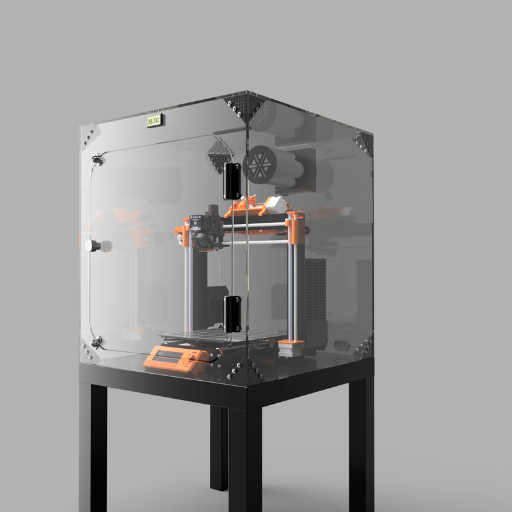

How does 3D printing with ABS work?

Printing ABS parts with a 3D printer employs Fused Deposition Modeling (FDM). 3D printers use heat to melt thermoplastic filaments to form parts, with the melting temperature of ABS set around 210-250°C. An extruder issues the softened material through a nozzle, spraying it on a heating table where it will be kept at 90-110°C. The build platform moves up after each layer is placed until the entire model is completed. When the model is finished, the materials cool down, and the model’s parts adhere strongly to one another. For robust, functional models and parts that are intended to be used, prototypes, and other pieces, FDM printing makes the best use of ABS properties.

Best practices for printing ABS

Meticulous control of the environment and settings are essential for producing the best quality results while printing with ABS. One of the primary difficulties associated with using ABS is the warping that occurs due to extreme shifts in temperature. It is advisable to use an enclosed 3D printer because it retains the ambient environment and shields the object from drafts and temperature changes. In addition, strong bed adhesion strategies should be implemented. The model can be kept from lifting during the printing process by using painter’s tape, ABS slurry, or special adhesive glue.

While overheating may cause stringing or bubbling and running too cold may result in weak layer bonding, the extrusion temperature for ABS should be set between 230°C and 250°C, depending on the filament manufacturer. Tools set to around 100°C, already combined with a heated bed, mitigate the risk of warping and layer separation, while consistent first-layer adherence is guaranteed with regular bed leveling. Maintained at around 100°c, these settings also reduce the risk of warping and layer separation.

Common challenges in 3D printing with ABS

While versatile and popular, challenges posed by printing with ABS could diminish the quality and success of the final product. One of the most common problems, warping, occurs from uneven cooling during the printing process. This problem occurs because ABS has a high coefficient of thermal expansion, meaning that parts are likely to contract and lift off the print bed if the temperature is not uniformly maintained. This can be countered by using a heated bed and closing off the printer chamber, as low-ambient thermal stress reduces strain caused by temperature differentials.

Another common problem is poor layer adhesion. Like many materials, ABS has a specific temperature window for bonding between layers, with boundaries set too high and too low. If the extrusion temperature is too low or the print cools far too quickly, weak bonds that form will degrade the structural integrity of the part. A durable part is best achieved when the extruder is set to between 230-250°C and not too much cooling is done.

My concerns would be with the fumes emissions as these contain VOCs and particulates, both of which are released when heating ABS. Unventilated areas can provide health hazards as well as unpleasant odors. Furthermore, proper air cleaning equipment can reduce exposure to these fumes, as well as increased ventilation.

Also, there are issues regarding the compliance of dimensional accuracy owing to shrinkage upon cooling. Apart from the CAD model, ABS parts will frequently undergo slight shrinkage which creates issues for tightly-fitting assemblies. Therefore, a designer needs to be careful in the design and slicer settings, resulting in some trim adjustment to scaling factors or the use of braces and rafts to counter dynamic print stabilizers.

Integrated seamlessly with these solutions, consistent, reliable, and robust mechanical properties of ABS can be achieved.

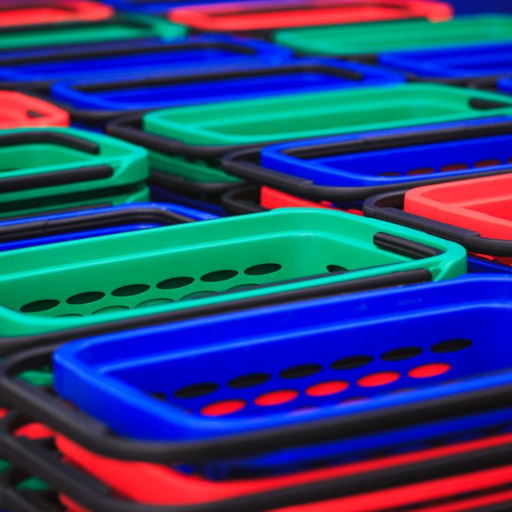

What are the chemical resistance properties of ABS?

ABS (Acrylonitrile Butadiene Styrene) exhibits excellent chemical resistance, particularly to acids, alkalis, and many inorganic salts. It is resistant to a range of oils, fats, and some organic solvents, making it suitable for applications exposed to such substances. However, ABS is susceptible to degradation when exposed to strong acids, strong bases, or certain organic solvents such as acetone, which can cause surface weakening or cracking. Its balanced chemical resistance makes it popular for applications in environments where moderate exposure to chemicals is expected.

Impact of chemical resistance on design choices

Considering chemical resistance while designing demands careful attention to material selection concerning the expected service life and operability in the intended environment. Designers have to consider what kind of chemicals the material will be subjected to, along with the exposure time and concentration of such exposure. For instance, ABS plastic has moderate resistance to oils and fats, but may need coatings, or use of other polymers, if frequently exposed to strong acids or solvent-grade acetone. This evaluation also includes surrounding temperature and mechanical loading, because, in some cases, additional factors can catalyze chemical processes. The use of compatibility charts, chemical resistance tables, and modeling simulations permits accurate evaluation of material efficiency. Most importantly, knowing chemical resistance properties assists the engineers and designers to balance the functional and safety aspects of the environment where the product will be used.

Comparing ABS with other plastics in terms of chemical resistance

Reference Sources

1. Tensile strength and flexural strength testing of acrylonitrile butadiene styrene (ABS) materials for biomimetic robotic applications
   This research focuses on testing the tensile and flexural strength of ABS materials based on international standards.

2. The use of 3D printing to introduce students to ASTM standards for testing tensile properties of acrylonitrile-butadiene-styrene (ABS) plastic material
   This study examines the impact of 3D printing on the tensile properties of ABS plastic, using ASTM standards.

3. FDM technology and the effect of printing parameters on the tensile strength of ABS parts
   This paper investigates how FDM printing parameters, such as speed, influence the tensile strength of ABS samples.

Frequently Asked Questions (FAQs)

Q: What are the key properties of ABS plastic?

A: The key properties of ABS plastic include excellent impact resistance, good stiffness, higher strength, and a wide temperature range. These properties make ABS an ideal choice for various applications requiring durable plastic parts.

Q: How does ABS maintain its dimensional stability?

A: ABS maintains its dimensional stability due to its material properties, which include a low coefficient of thermal expansion. This ensures that the shape and size of ABS parts remain consistent, even when exposed to varying temperatures.

Q: What are the three monomers used to create ABS?

A: The three monomers used to create ABS are acrylonitrile, butadiene, and styrene. These components contribute to the overall properties of ABS, making it a versatile engineering thermoplastic.

Q: How is ABS commonly processed in manufacturing?

A: ABS is commonly processed through injection molding, a method that allows for the production of complex shapes and designs. The process involves heating the ABS material until it becomes molten and then injecting it into a mold.

Q: What applications rely on the excellent mechanical properties of ABS?

A: Applications that require excellent mechanical properties of ABS include automotive parts, consumer electronics housings, and various types of industrial equipment. The durability and resistance of ABS make it suitable for these demanding uses.

Q: Can ABS be easily machined, and if so, how?

A: Yes, ABS can be easily machined due to its good formability and ductility. This allows for straightforward cutting, drilling, and shaping of ABS parts to meet specific design requirements.

Q: What solvent resistance does ABS exhibit?

A: ABS exhibits moderate solvent resistance, meaning it can withstand exposure to certain chemicals without significant degradation. However, it is advisable to test specific solvents, as some may affect ABS’s properties.

Q: Why is ABS considered a popular choice for 3D printing?

A: ABS is considered a popular choice for 3D printing because of its excellent impact resistance and ability to maintain shape during and after the printing process. Its wide range of ABS formulations also allows for tailored properties to fit specific applications.
