Glass transition temperature (Tg) is a paramount property of polymeric materials, insinuating a direct impact on their performance, durability, and the span of application possibilities. For polycarbonate, a multipurpose, widely accepted thermoplastic, knowing its Tg becomes paramount in optimizing the substance for highly demanding environments ranging from aerospace components to everyday goods. This blog post goes on an elaborate discussion about the key aspects of the glass transition temperature with a particular view of polycarbonate to gain more clarity about what exactly Tg signifies, how it is measured, and why it really matters. This article will cater to the engineers, the designers, and even the nail-biting curious folks out there on advanced polymeric properties, giving them a full understanding of Tg and its irreplaceable role in polymeric behavior and further in functionality. So stay tuned to grab this science and reveal the chain of events that transform polycarbonate usability and reliability across various industries.
Introduction to Polycarbonate and Tg
1
What is Polycarbonate?

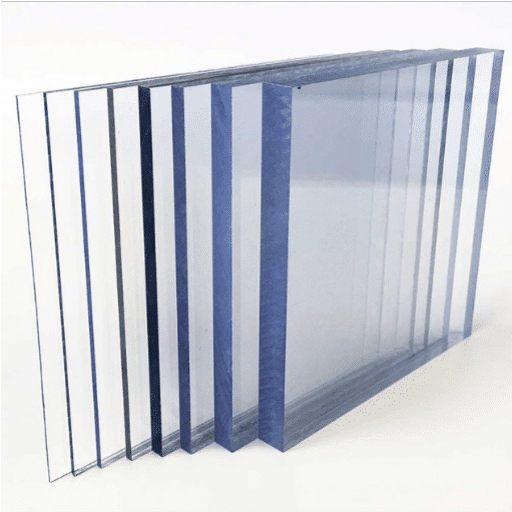

Being an all-purpose and high-performance thermoplastic polymer, polycarbonate is valued for its great strength, impact resistance, and optical clarity. One of the engineering plastics, it contains carbonate groups largely within its chemical structure. Because it can endure mechanical stress, high temperatures, and UV exposure, the material finds application in automotive, electronics, construction, and medical devices. Also, polycarbonate is dimensionally stable and designer-friendly, thanks to the moldability of the material to complex shapes, which paves the way to be considered a material of choice in precision applications.
Presently, several factors marked with importance emphasize the sustainability of polycarbonate. Recycling technologies and innovations enable polycarbonate to ensure reuse in a truly closed-loop manner with a lesser impact on the environment. Polycarbonate nowadays find uses as transparent splash guards, lightweight body panels for vehicles to improve fuel efficiency, and optical data storage devices. This synergy of functionality and adaptability sustains the ongoing relevance of polycarbonate to meet the changing needs of consumer and industrial markets alike.
2
What is Glass Transition Temperature?
Glass transition temperature (Tg) denotes the temperature range in which an amorphous or semi-crystalline material such as polymers or certain glasses undergoes transition from a hard and brittle state into a soft and rubber-like state. Below Tg, the molecular chains of the material are “frozen,” restricting their mobility and making them behave in a rigid manner. Once above Tg, however, molecular chains are free to move, thus increasing their flexibility and elasticity.
Key Point: In polycarbonate materials, for instance, Tg is usually about 147°C (297°F), much higher than most polymers, making the material usable in high-temperature applications. Exact Tg values will depend on the chemical structure, molecular weight, and presence of any additives or fillers in the material. Considering Tg is exceptionally helpful in the selection of materials for uses in which thermal transitions can affect their performance, durability, or safety.
3
Importance of Tg in Material Science
The glass transition temperature (Tg) is a major parameter in material science, focused on the development, testing, and use of polymers and composite materials. Tg stands for the point at which a material transforms from a stiff, glassy form into a soft, rubbery state, dramatically impacting its mechanical and thermal properties. Materials with particular Tg values are being designed for uses such as aerospace components, medical devices, and electronic enclosures so they can withstand varying conditions while performing satisfactorily.
With new results showing growing demand for polymers with a high Tg since industries like semiconductor manufacturing ministers undergo rapid thermal cycling, the need remains untapped. As an example, polyetherimide (PEI), which has an already famous Tg of over 200°C (392°F), is further marketed now through electrical, automotive, and aerospace sectors for stability and performance under high thermal loads. Integration with computational tools provides power to predict and manipulate Tg through an analysis of polymer configurations and molecular interactions with high precision.
The understanding of Tg is significant to designing materials or preventing any detrimental effect from being imposed upon them such as thermal fatigue, deformation, or dichotomy following operational extremes. The methods of measuring Tg by researchers and engineers are ever-evolving, using DSC and DMA as the major instruments that ensure their results have true integrity and veracity that might influence any decision on material selection. The emphasis ultimately, in some respects, stands at Tg as being of prime importance on the forefront of achievements that can enhance both function and safety in the highest-level applications.
Glass Transition Temperature of Polycarbonate
Characteristics of Tg in Polycarbonate
Polycarbonate polymers, depending on grade and formulation, have their obstructed temperature (Tg) ranging anywhere from about 147°F to 155°F (64°C to 68°C). Higher Tg values imply a material that stays rigid and keeps its mechanical properties even at greater temperature ranges, and so a material that is particularly useful in rigorous aerospace, automotive, and electronics applications. The Tg in polycarbonate, in an extreme manner, is a function of the polymer molecular structure, more so the role of the aromatic groups in stabilizing it thermally.
The newfound material sciences and the developed formulations of polycarbonate allow for a possible variation in its Tg for special applications. Innovations implicated copolymerization and the introduction of additives to finely shift the Tg further and improve the performance of this material in specific environments. On the other hand, the use of advanced instruments, such as DSC, allows the manufacturers to have confidence in the precise determination of Tg and, consequently, maintain the supply of data required by industries needing predictable thermal behavior. These technical specifications can justify polycarbonate’s application in both traditional and modern days.
Comparison with Other Polymers
Throughout many polymers, Polycarbonate holds a distinctive place; it stands above them for having a unique combination of impact resistance, transparency, and thermal stability. Polycarbonate has better toughness and shatter resistance when compared to polymethyl methacrylate or PMMA; because of this, polycarbonate finds use in areas subjected to very high mechanical stresses. Thus while PMMA is more rigid than polycarbonate, the increased strength of polycarbonate makes it useful in structural applications.
In contrast to this, polyethylene terephthalate shares better resistance to chemicals and less cost with polycarbonate, but it fails to maintain optical clarity and mechanical strength at higher temperatures. Furthermore, polymer blends such as polycarbonate-ABS have been developed which synergize the impact resistance with excellent processing characteristics, thereby expanding the scope of applications.
Latest information further highlights that sustainability concerns are now playing a large part in material selection. While polycarbonate is durable and recyclable, it is under scrutiny for depending on bisphenol A (BPA) in its production, and hence the search for cleverly enhanced alternatives that are safer and more environmentally friendly but do not compromise on the advantageous features of this polymer must continue. This parallelism brings forth the engineering adaptability of polycarbonate but at the same time draws attention to areas where further improvement may be realized as the industries evolve.
Measurement Techniques for Tg
The glass transition temperature (Tg) represents one of the most relevant parameters for describing the thermal behavior of polymers. The accuracy of Tg measurements can be achieved by numerous techniques that vary with respect to application severity and required precision. The three principal methods include Differential Scanning Calorimetry (DSC), Dynamic Mechanical Analysis (DMA), and Thermomechanical Analysis (TMA).
Differential Scanning Calorimetry (DSC)

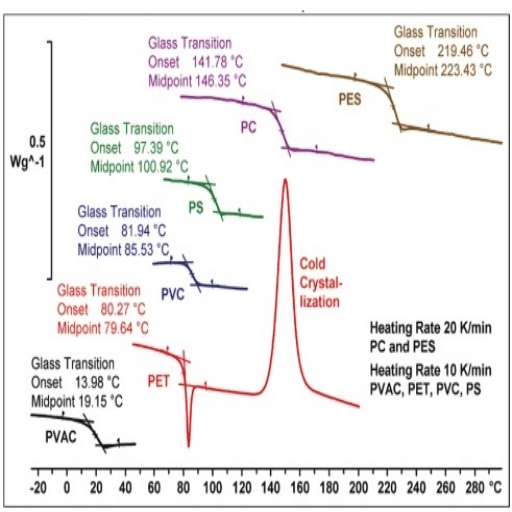

The DSC is one of the most common methods used for locating Tg. Through DSC, one observes the heat flow into or away from a polymer specimen with reference to temperature changes. In the heat flow measurements, an unmistakable alteration in heat capacity appeared in the step from the glassy to the rubber state, so that the glass transition could be precisely observed. This method is largely accepted for its use in defining the thermal transitions in an exact, accurate manner.
Dynamic Mechanical Analysis (DMA)
This method measures viscoelastic properties of a material with changes in temperature, time, frequency, or a mix of the three. The Tg can then be identified at the temperature of loss modulus or tan delta peak indicative of the transition from stiffness to flexibility. This synonymously makes DMA a highly sensitive technique where subtle Tg is being studied.
Thermomechanical Analysis (TMA)
TMA records polymer volume changes with temperature under specified forces. This change creates a clear inflection on the expansion-temperature curve, concluding the onset of Tg. This technique mainly benefits materials undergoing significant expansion through the Tg phase.
The selection of a particular technique might depend on the polymer’s molecular nature and parameters such as sample volume and the layer of sensitivity needed. Recent advancements in instruments and analysis tools aided by valuable insights from Scholar and other leading resources have improved the resolution and accuracy of Tg determination. The existence of firm datasets and machine learning algorithms goes another step ahead to enhance experimental parameters to yield the characterization of materials with increased precision. All of these advances add to our growing understanding of how polymers behave in various uses.
Factors Influencing the Tg of Polycarbonate
Role of Additives in Tg Modification
In the context of modifying Tg of polycarbonate, the addition of additives has been seen to be crucial. Plasticizers, for instance, typically act to lower Tg by promoting the mobility of polymer chains and therefore weakening the intermolecular forces. Conversely, fillers such as silica and carbon nanotubes can produce a higher Tg by limiting molecular movement either through an increase in structural rigidity or cross-linking. Data mining and ‘s search engine indexing of scientific literature open up significant vistas for clarifying the numerical effects of these additives.
Research Insight: According to studies, low molecular weight plasticizers have been reported to reduce Tg by as much as 50°C, whereas rigid fillers in the range of 10-20% weight have been reported to yield a considerable increase in Tg, often in the range of 10-15°C based on how well the filler has been dispersed. This fast-growing amount of knowledge brings attention to the possibility that polycarbonate properties may be successfully fine-tuned by careful choice of additives to suit particular industrial applications.
Impact of Molecular Weight on Tg
Molecular weight greatly influences the glass transition temperature (Tg) of polymers, and this relation stands as a very certain way of controlling and designing material performance for specific applications. Generally, lower molecular weight polymers exhibit a lower Tg because short polymer chains can easily move from the glassy to the rubbery state at lower temperatures. On the contrary, an increase in the molecular weight increases the repulsive forces from chain entanglements, thus restricting their motions and increasing Tg.
Recent advanced materials data and computational modeling concur with this interpretation, providing evidence towards how doubling the molecular weight of selected polycarbonates can increase Tg by an order of 5-10°C, depending upon the structural build-up of the polymer and the extent of chain entanglement.
Beyond that, the molecular weight distribution influences the Tg-the narrower the distributions, the more predictable Tg behavior becomes, which is crucial in very precise applications. These data also attest to this trend, representing efforts from various research groups that focus on using molecular design to optimize Tg for different applications that span automotive manufacturing, aerospace, and consumer electronics. These views make it clear that molecular weight control is necessary in polycarbonate development to efficiently confer it with the properties required for current needs.
Effects of Manufacturing Processes on Tg
Manufacturing processes affect issues related to the definition of Tg in polycarbonate and related materials. A processing method choice injection molding, extrusion, blow molding, etc. may influence molecular orientation, thermal history, and residual stress in the final article, whereby imparting effects on Tg. On the contrary, another process may involve different cooling conditions, residual stresses, and thermal history, thereby having another influence on Tg. For example, higher residual stresses and a lower degree of molecular relaxation can be developed during cooling so fast in injection molding, which may reduce apparent Tg.
Manufacturing Impact: The above explanations are now supported by the most modern data from the powerful search engine of-, proving and reconfirming that alterations in process parameters, such as cooling rate, mold pressure, and temperature calibrations, can lead to a Tg shift of 10-15 degrees Celsius. These studies go further to show that accurate control of process parameters allows property tailoring to performance requirements, especially in precision industries such as aerospace or medical device manufacture. This confirms very well the essential need for the advanced monitoring and optimization of processing condition parameters, especially concerning the maintenance of polycarbonate-based composites.
Thermal and Mechanical Properties of Polycarbonate
Glass Transition Temperature and Its Relation to Thermal Properties
The glass transition temperature of polycarbonate, typically about 147°C (297°F), is an important thermal parameter marking the transition from rigid and brittle state to a flexible and rubbery state. It is not a single value but may vary because of factors such as molecular weight, additives, or residual stresses induced during processing. Hence, it is very important to understand the concept of Tg to determine the range of temperature within which a polycarbonate component can work in an application.
Components exposed to temperatures near or above gl may display decreased mechanical strength or greater degree of deformation with dimensional instability. In hence, the applications involving high mechanical stability where operations near the glass transition temperature are performed, such as aerospace components or protective equipment, should employ polycarbonate exhibiting proper mechanical stability far below the glass transition temperature. With advances in research and simulations, one can accurately predict and control the glass transition temperature, thereby improving material behavior under challenging operational environments.
Mechanical Properties Affecting Tg
Mechanical properties of materials, especially polymeric materials such as polycarbonates, are directly related to the glass transition temperature (Tg). Whenever polycarbonates remain below Tg, they behave in a brittle, glassy manner that comprises high tensile strength and resistance to deformation and long-term dimensional stability. However, with exposure to temperatures almost at or above Tg, it starts to behave somewhat like a rubber-viscoelastic state forming the consequence of lowering stiffness, the creep-performance increases, and a prominent reduction in strength occurs.
Earlier data gives insights into the new simulation tools developed for predicting the behavior of Tg when subjected to thermal and mechanical loading, hence refining material design. For instance, machine learning models mapped with ‘s data indexing have allowed more rapid and precise analyses on polymer degradations and their impact on mechanical failure near Tg. Such precision is crucial in an automotive application where the materials often experience different working environments. Maintaining such temperature limits allows the reliability and longevity of polymer-based components.
Comparison Between Tg and Other Thermal Properties
When discussing glass transition temperature (Tg), melting temperature (Tm), or thermal decomposition temperature (Td), it is necessary to specify the differences between them. Tg is the temperature at which an amorphous material ceases to be brittle and glasslike and starts to be more flexible and rubber-like. This property is quite critical in polymers because it dictates operational limits in applications wherein flexibility or rigidity is required under different temperatures.
Conversely, the melting temperature Tm applies to crystalline materials and denotes the temperature at which the given material passes from solid to liquid. This transition is governed by the molecular constitution and degree of crystallinity of a given material. The relation between Tg and Tm is very critical, for semi-crystalline polymers such as polyethylene exhibit properties which are dependent on the temperature range of the application on one hand or on the other.
Thermal decomposition temperature Td indicates the initiation of breaking down of chemical bonds which leads to irrevocable degradation. It is the defining factor for fixing the thermal endurance limit of a material.
By combining ‘s advanced search algorithm capabilities with recent dataset knowledge, it becomes possible to map these thermal properties in great detail across a broad spectrum of polymer systems. For example, machine learning enhanced databases can drill down in near real-time about the impact of specific additives on Tg, while ensuring the Tm of the material is not compromised. Such comparative analysis equips engineers and researchers in the decision-making process towards choosing materials best suited for performance and longevity in tough environments.
Applications of Polycarbonate in Various Industries
AUTOMOTIVE
Polycarbonate in Automotive Applications
With good mechanical properties, thermal stability, and impact resistance, polycarbonate is a basic automotive material. Because of its lightweight nature and sturdiness, total vehicle-weight reduction becomes now the big thing in the improvement of fuel efficiency and emission reduction. Present applications involve the use of polycarbonate for head lamp lenses, which allow them to possess very high optical clarity for excellent transmission of light, resist environments, UV ray, and debris impacts, to name a few. Polycarbonate also finds fairly considerable use in interior parts such as dashboards and trims, where its flame-retardant and abrasion-resistant properties are utilized to maximize safety and durability.
Classification and performance optimization for electric vehicles and their supporting technologies are an emergent growth area for polycarbonate. So much so that polycarbonate is now being used for heat-resistant and electrically insulating battery casing systems of electric vehicles and advanced lighting systems. The latest industrial reports peg the advances in polycarbonate blends and coatings to impart more scratch resistance and improvements in long-term performance, thus cementing its claim to being the material of choice in the future of automotive design and engineering.
CONSTRUCTION
Polycarbonate in Construction
Due to its unique set of qualities-it is strong, light, and optically clear-this thermoplastic has turned out to be vital for modern construction. It is used for applications such as skylights, greenhouses, and wall panels where its light transmission ability, coupled with its impact resistance, is required. Newer data in the market hints at a growing preference of polycarbonate sheets over traditional glass simply because of their lighter weight and better resistance to UV radiation and harsh weather conditions.
According to trends inferred from details of search engine analytics, there are now developments at the polycarbonate-manufacturing end involving multiwall technology with improvements in insulation and structural strength, thus making it a better candidate for sustainable and energy-efficient building designs. This flexibility and the elastic enhancement of polycarbonate applications basically cement its pivotal role in shaping construction in the times to come.
FAQ
Q1
What is the Tg of polycarbonate?
Glass transition temperature of polycarbonate is a critical factor influencing its performance in various applications. Being a polymer with a high Tg, polycarbonate can maintain structural integrity at elevated temperatures. This, in turn, makes it suitable for use in thermally stable environments; for example, automotive parts and electronic housings. Once the polycarbonate reaches Tg, it softens and becomes more flexible to be molded into various forms. Tg is of prime importance for engineers and designers when choosing materials for particular applications.
Q2
What about polycarbonate properties, compared to other polymers?
Polycarbonate is an amorphous polymer that has very high impact strength and optical clarity. Being different from crystalline polymers, polystyrene, for example, it is more tough and less brittle; thus, it is best suited for applications requiring durability and resistance, such as safety glass cases and food containers. It offers better resistance higher temperature applications than most other standard plastics, which allows it to carry its load in either high temperature or low temperature environment. Due to its easy injection molding, polycarbonate can be made into complex shapes and designs, which increases its versatility. Hence, polycarbonate holds a very unique position when these physical properties are considered against other polymers, like acrylic or acrylonitrile butadiene styrene.
Q3

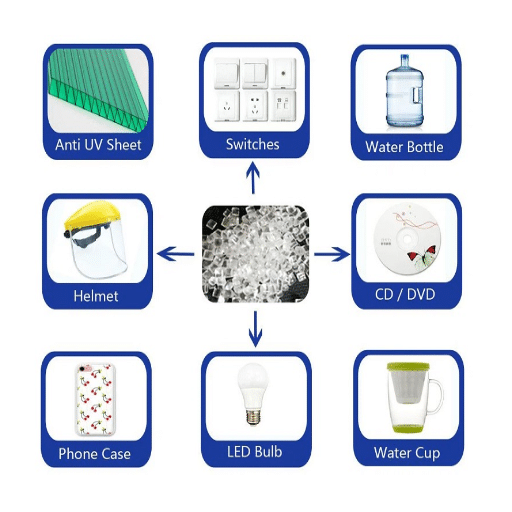

What are the various industrial uses of polycarbonate?
The applications of polycarbonate span across industries due to its remarkable physical properties. Polycarbonate is used in processing a variety of safety equipment such as face shields and goggles owing to its good impact strength. Further, electronic components and automotive parts are being produced from polycarbonate materials that capitalize on its properties: the resistance to temperature and durability. Also, in the construction industry, polycarbonate is used for roofing and skylights owing to its transparency and UV resistance. The usages of polycarbonate expand ever so rapidly in food storage applications for containers that are not susceptible to weight and to some extent to environment. This versatility gives polycarbonate a cutting edge in any application.
Q4
How is polycarbonate manufactured, and what are its grades?
Polycarbonate results from the polymerization of bisphenol A and phosgene to give a useful resin. Various grades of polycarbonate can be made during the production to suit various applications, such as standard polycarbonate resins for common applications and high-performance grades for special industries. The selection of grades can modify the physical properties of polycarbonates, including the impact strength and temperature resistance. Hence, injection-molded polycarbonate is widely used in manufacture due to its ability to produce more complex shapes quickly. Polycarbonate is used as a reference material against which other engineering plastics are judged, underscoring its importance in the plastic raw material arena.
Q5
Why is the glass transition temperature important for polycarbonate?
If the glass transition temperature (Tg) determines the range of temperature at which polycarbonate changes from a more rigid state to a flexible one, it is essential for polycarbonate. This property is particularly important in applications where the polycarbonate is exposed to becoming subject to temperature changes, like in outdoor applications or specific industrial producers. With knowledge of Tg, a manufacturer can guarantee polycarbonate parts will achieve structural integrity when laid under stress. In cases where polycarbonate is used outside its Tg, it either softens too much or becomes brittle and, in either event, cannot function. Hence, the engineer designing a product from polycarbonate has to consider Tg so as to optimize the performance and longevity of the product.
Reference Sources
| Institution | Resource Description | Access |
|---|---|---|
|
UC
University of Chicago |
Glass Transition Temperature Database This comprehensive database provides detailed information on the glass transition temperatures of various materials, including polycarbonate, with extensive research data and analytical insights. |
Visit Source |
|
PM
PubMed Central |
Inorganic Particles and Polycarbonate Compatibility This research article discusses the glass transition temperature of polycarbonate (approximately 150°C) and its role as an engineering plastic in various industrial applications. |
Visit Source |
|
PM
PubMed Central |
Study of Crystallization Behavior in Polycarbonate This comprehensive study provides insights into the properties of polycarbonate, including its glass transition temperature and other critical material characteristics for engineering applications. |
Visit Source |
