Understanding ABS Plastic Pipe: Key Differences and Applications

For any plumbing work and building construction, it is always important to determine proper plumbing materials which helps in improving weather resistance, durability, efficiency and cost saving factors. Out of the numerous available options, PVC and ABS (Acrylonitrile Butadiene Styrene) plastic pipes are some of the best used materials in residential areas and commercial buildings. In this article, we will compare different plumbing materials and look in depth at the properties, benefits and uses of ABS plastic pipes. This information can greatly assist contractors and DIY enthusiasts when making decisions on projects.

What is ABS Plastic Pipe and its Properties?

Plastic pipe ABS ( Acrylonitrile Butadiene Styrene) is a lightweight, relatively affordable, and durable pipe used chiefly for drain, waste, and vent (DWV) systems. It possesses characteristics of rigidity, impact resistance, and low temperature versatility. Additionally, ABS pipes do not suffer corrosion or chemical damage, making them suitable to carry different types of liquids. The smooth internal surfaces of ABS pipes reduce friction, clogging, and enhance flow efficiency. Due to this combination of attributes, plastic pipe ABS become a effective option for plumbing and construction works.

What is Acrylonitrile Butadiene Styrene?

Acrylonitrile Butadiene Styrene (ABS) is a thermoplastic polymer with a broad spectrum of industrial uses. It is made-up of three monomers: acrylonitrile, butadiene, and styrene. Each of wich contribute specific qualities. Acrylonitrile gives chemical resistance and thermal stability while butadiene increases the toughness and impact resistance. Styrene makes the product rigid and adds to the color gloss which increases it visial apeal.

For making electronic gadgets, automobiles, household items, and so on, ABS is an ideal thermoplastic polymer due to its strength, stability, and low maintenance. It can be injection molded and 3D printed into complex shapes making it easy to manufacture. Moreover, ABS retains all its properties over a wide range of temperature and environmental conditions, giving confidence for use in both industrial and residential sectors. These features make ABS an ideal polymer for modern engineering and manufacturing.

How does ABS compare to other plastic pipes?

Unlike other plastic pipes such as PVC (Polyvinyl Chloride) and CPVC (Chlorinated Polyvinyl Chloride), ABS (Acrylonitrile Butadiene Styrene) pipes have a unique combination of properties that sets them apart. Polymeric Abs exhibits high impact resistance and exceptional toughness; therefore, it is better than other materials in applications that face physical stress on the pipes or require them to endure frequent usage. Unlike PVC, ABS pipes are operationally advantageous in cold environments as well.

PVC is more susceptible to corrosion than spendew ABS for certain chemicals, thus making it more useful is an industrial environment where chemicals are employed. Also, the savings in labor costs due to lower priced ABS also due to easier transportation and installation make structural changes faster and cheaper. On the other hand, CPVC is designed with UV stabilizers for outdoor usage, while ABS has no protection and is allose degrades faster under sunlight illumination.

Manufacturing and cost efficiency is another important factor. Projects can benefit from ABS pipes since they are cheaper to manufacture than CPVC. In contrast, CPVC is preferred in situations where high heat resistance is needed because it can withstand higher temperatures than both ABS and standard PVC. Each material offers certain benefits, and the choice is usually made based on the weather conditions, finances, and purpose of the piping system.

What are the typical applications of ABS plastic pipe?

Due to its corrosion resistance, lightweight durability, and structural integrity, ABS (Acrylonitrile Butadiene Styrene) plastic pipe is widely used in many industrial sectors. Below are examples of uses of ABS plastic pipes:

1. Residential and Commercial Drainage Systems

In residential and commercial buildings, ABS pipes are widely used in waste, drain, and vent piping. These pipes capture vapor and liquid waste for transport to central processing systems. Their low-level moisture resistance and impact absorption capability make them suitable for wastewater transportation.

2. Underground Sewer Systems

Another application of ABS is in reinforced concrete pipes for sewer and stormwater drainage infrastructure placed underground. These types of ABS applications are robust against corrosion and structural predicaments. Notably, ABS performance remains unaffected by soil conditions or most ground chemicals and serves under these conditions for long periods.

3. Ventilation Systems

ABS is used for air ventilation and ducting systems in HVAC applications, to where lightweight and structural strengthening materials are a necessity.

4. Industrial Applications

Due to fiberglass not being reliable for transporting non-potable water, ABS pipes are ideal for use in military vehicles where non-portable water, corrosive chemicals, and even filtering systems for chemicals on leaked water are present.

5. Marine and Recreational Applications

In RVs for plumbing, bilge and holding tanks are also made of ABS because of its resistance to damaging impacts and salt water. It is also fantastic in marine settings.

These apps highlight the practicality and versatility of ABS pipe in different settings. It is important to mention that high-temperature applications or those requiring potable water transport are not suited for ABS piping unless specially rated.

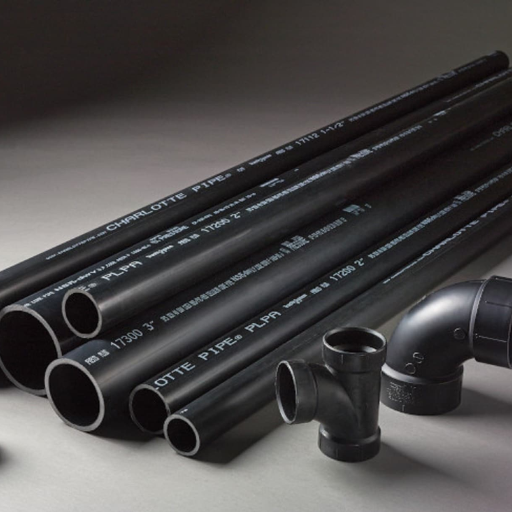

What are the Key Differences Between ABS and PVC Pipe?

ABS (Acrylonitrile Butadiene Styrene) and PVC (Polyvinyl Chloride) Pipes diverge due to varying compositions, use cases, and flexibility:

1. Material Composition: Both PVC and ABS have different material compositions. The former is made of PVC(polyvinyl chloride) which is less flexible or a bit more brittle when it becomes cold. On the other hand, the later consists of a thermoplastic resin which turns brittle when cold.
2. Color: Identifying both is easy since ABS is black and PVC is white or gray.
3. Flexibility and Durability: ABS retains shape better under low temperature and is more impact resistant. PVC has better chemical resistance and flexibility.
4. Joining Method: Both types of pipes have separate methods of connecting each one has its pros and cons. For PVC, the cementing method consists of two steps, primer and then cement. ABS Pipes, use a one step joining procedure using solvent cement.
5. Applications: There is a requirement of use of ABS for dryer-waste water and vents due to the materials impact resistance. The same cannot be said for PVC as it negotiates easier in terms of water supply, conduand irrigation.

The differences made here enable the users to choose the material appropriate for given surrounding conditions and operational criteria.

What are the main differences between ABS and PVC?

Which pipe is more corrosion resistant?

When considering corrosion resistance, CPVC maintains a better overall protection than most materials including acids, bases, or even salts. This makes it useful in both industrial and residential sectors where aggressive materials are used. PVC does resist many chemicals, but for hot environments or highly reactive compounds, it does not perform well because it does not have the extra chlorination that CPVC has. More importantly, CPVC’s modified molecular structure offers better protection from oxidative and corrosive environments, which make the material critical for prolonged exposure in demanding systems. Hence, under these stances, CPVC will be the better option of materials in corrosive environments and in sensitive chemically or high temperatures.

How to Choose the Right Pipe to Use in Your Plumbing Project?

Selecting the appropriate pipe depends on the requirements of your plumbing system. The most crucial deciding aspects include:

1. Material Requirements: In cases where high temperatures or corrosive substances are a threat, CPVC remains the best option. Vice versa, basic tasks around lower temperatures would tend to be better served using PVC.
2. Water Pressure and Flow Needs: Check the specified pipe diameter and material ensuring it meets the demands of the specified water pressure and flow rate. Standard literature will guide for pipe sizes.
3. Application Type: For drinking water systems, use materials which r are deemed safe for potable water. For drainage or irrigation, flexibility and durability of the material are of greater concern.
4. Local Building Codes: These regulations will always be subordinate to the law. However, they dictate the use of acceptable pipe materials and methods of installation for any given application.
5. Budget Considerations: Maintenance and repair work must take the projection’s durability as well as its performance and best value cost into account. Although performance pipes will come at a higher purchase price, they tend to offer better cost benefits long-term by saving on maintenance and repairs due to their durability.

Taking into consideration all of these factors allows for information based decisions that best suit the scope of the proposal.

What factors should you consider for plastic pipe selection?

1. Material Properties: Performance is determined by the composition of the plastic. Common materials include PVC, HDPE, and CPVC. Their tensile strength, thermal resistance, and chemical compatibility offer varied functional suits.
2. Pressure and Temperature Ratings: Assess operational pressure and temperature ranges for the pipe. CPVC works best for high-temperature water systems because of its good heat tolerance when compared to HDPE, which is used in applications that require some flexibility in enduring pressure.
3. Durability and Lifespan: Look for abrasion, UV radiation, chemicals, and environmental stressors which the pipe may resist. Such features ensure a longer operational life, especially in more demanding conditions.
4. Flow Efficiency: As stated before, a smooth surface on the pipe is required, but now to prevent friction losses, boosting productivity of liquid transportation through the pipe. In order to measure efficiency in different conditions, manufacturers usually state flow coefficient ratings.
5. Installation Requirements: Different materials may result in variation for the installation method used. Solvent welding is common for PVC and CPVC, while HDPE often uses specialty electrofusion couplings.

Consideration of all these factors will enable selection of a tailored solution using plastic pipes that meets the unique requirements of your project while observing technical specifications and budgetary constraints.

What are the diameter options for ABS plastic pipe?

Acrylonitrile Butadiene Styrene plastic pipes come in various sizes suitable for use in residential homes and a wide range of industries. ABS pipes are readily available in a 1/2 inch to 6 inch diameter piping for plumbing and drainage systems. Even bigger diameters like 8 inches and above are produced for commercial and industrial applications that require high flow rates. Selection of the size depends on other parameters too like intended application, flow rate requirements, and pressure ratings to maintain system efficiency.

How to Install ABS Plastic Pipe?

1. Measure and Cut the Pipe

Mark the cutting point on the length you need and measure it precisely. For a surgical, accurate cut, utilize a pipe cutting tool or a fine-tooth saw.

2. Deburr the Edges

To ensure proper alignment with fittings, sharp edges resulting from a cut need to be smoothed using a sandpaper or a deburring tool.

3. Dry Fit the Components

Without adhesive, fit the pipes and fittings together first to check alignment and proper fitting then adjust in case of misalignment.

4. Apply Primer and Cement

If necessary, apply ABS primer to clean the surface. Then, apply it to the fitting one and coat the socket of the fitting and pipe with solvent cement. Cover every area fully to ensure a secure bond so that the joint will not come apart easily.

5. Join the Pipe and Fitting

As you slide the pipe into the fitting, rotate it gently to apply cement evenly. Hold the joint to prevent movement for a few seconds to set.

6. Allow for Drying Time

Do not pressure test or use the system until adhering with manufacturer’s instructions regarding drying, curing times, and pressure testing. Generally, you should wait 24 hours before full curing.

Achieving a robust and reliable ABS pipe system requires following all these instructions. Always observe your local construction codes and safety regulations.

What tools do you need for installation?

To set up any ABS pipe system, having the correct tools and supplies is a requirement. Below is a complete list of tools that are frequently needed for these projects:

1. Pipe Cutter or Hacksaw

This tools set is crucial for shaping the ABS pipes into accurate sizes. Performance of these tools is directly related to their sharpness. Rough edges on cuts can be smoothed out by using sharp tools like pipe cutters.

2. Measuring Tape

Strong measuring tapes can also greatly improve the effectiveness and accuracy of the installation, by measuring length for checked alignment.

3. Deburring Tool or Utility Knife

Sharp tools like utility knives and deburring tools are crucial in the post cutting stage friction of pipe. Smoothing the peripherals of the cut prevents the formation of rough edges which increases the chances of bond failure during connection and reduces damage to the piping system components.

4. Primer and ABS Solvent Cement

Primer is utilized to scrub and get ready the surface of the pipe and fittings, while solvent cement forms a strong, waterproof joint between the parts.

5. Fitting Brushes or Applicator Tools

To apply primer and cement on the surfaces of pipes and fittings, small brushes or applicators are necessary.

Proper installation methods and ABS pipe system tools improve the system’s reliability, efficiency, and durability. Maintain proper tool conditions and ensure that they are suitable for the specific pipe size and application.

What is the best way to seal ABS pipe fittings?

In sealing ABS pipe fittings, an ABS-specific solvent cement is critical. This particular glue works by chemically fusing the pipe and fitting together. Joint separation in the future is impossible, ensuring that the bond is leak proof. Cleansers such as primers or ABS cleaners can be used to prepare the surfaces.

To apply the cement, use brushes or any other applicable tools to achieve even coverage over both the fitting socket and the pipe. Consider using a flexible, long bristle brush for better reach. Allow the glue to set for some seconds and then wipe any excess glue to preserve neatness.

Equally important is to let the joint cure according to the manufacturer’s guidelines before any pressure is applied. Usually, the cure time depends on the environmental temperature and humidity. Ensuring that the procedures are followed Eliminating the possibility of leaks or failures seamlessly guarantees long-lasting strength in the joints.

What are the Advantages of Using ABS Plastic Pipe?

The acrylonitrile butadiene styrene (ABS) plastic pipe possesses a range of benefits which makes it a reliable option for plumbing and drainage systems:

• Durability: The physical impact resistance and durability of high strength ABS pipes is well known. Such pipes do withstand extreme temperatures and pressures.
• Lightweight: Compared to its metal counterparts, ABS plastic pipings are easier to lift and carry. Thus, making transportation and installation easier.
• Corrosion Resistance: Unlike metal pipes, ABS neither rusts nor suffers any damage from moisture or plumbing system chemicals.
• Cost-Effective: Eligible for purchase at a reduced price as compared to other piping materials and making it the preferred choice in new residential and commercial constructions.
• Ease of Installation: The use of simple solvent welding techniques makes these pipes more time and cost efficient than others.

These supplies result in dependable service and extended operational life while addressing diverse piping requirements and providing flexibility and dependability.

Is ABS plastic more durable than PVC?

In assessing the strength of ABS and PVC plastic pipes, their comparative toughness, impact resistance, temperature tolerance, and chemical stability all merit consideration. PVC pipes tend to be brittle in cold, low temperatures. During this period, ABS plastic pipes are far more resilient to physical shocks and sudden forces due to differences in impact strength. On the other hand, PVC has better ultraviolet (UV) resistance and is more suitable for outdoor applications where sunlight exposure is a concern. In addition, PVC has greater chemical resistance to some acids and alkalis which could be useful in some industrial applications. All in all, the durability of ABS and PVC in these applications on aspects such as the requirements of the environment, workload, and structural pressure.

What makes ABS suitable for indoor plumbing?

Key advantages of ABS (Acrylonitrile Butadiene Styrene) makes it a preferred polymers for indoor plumbing and drains. Its lightweight characteristic aids in easy transportation and installation, thus reducing labor costs. Furthermore, ABS’s impact resistance also protects it against cracking or breakage during and after installation. Rooms in a house generally deal with a wide range of temperatures including hot water and cold water plumbing systems, therefore, needing a material that can withstand such temperatures without degradation. In addition, ABS features a smooth surface which reduces friction. This, along with its chemical resistance, helps in providing effortless flow of wastewater through pipes and plumbing, dealing with plumbing systems. All of these advantages combined clearly indicate that ABS is reliable and inexpensive solution for indoor plumbing applications.

Reference Sources

1. Creep Modeling of ABS Pipes at Variable Temperature: Empirical formulas for creep compliance were developed, providing insights into the long-term structural properties of ABS resins used in pipe production.

2. Mechanical Performances of 3D Printed Lightweight ABS Pipes: Cellular structures with lattice wall thickness showed competitive energy absorption compared to solid pipes.

3. Use of Plastic Pipe: It highlights the satisfactory performance of plastic water pipes since their introduction in 1952, emphasizing their utility and reliability.

Frequently Asked Questions (FAQs)

Q: What is ABS plastic pipe and what are its key properties?

A: ABS plastic pipe is a durable and resistant piping material commonly used for drainage and sewage systems. It is known for its strength, lightweight nature, and ability to withstand high pressure, typically rated up to 140 psi.

Q: How does ABS compare to PVC in terms of flexibility?

A: ABS is generally more flexible than PVC, making it easier to work with in certain applications, especially when it comes to installations that require bending or fitting around obstacles.

Q: What are the common applications of ABS plastic pipe?

A: ABS plastic pipe is commonly used for drainage, sewage, and venting systems in both residential and commercial settings. It’s particularly effective in applications requiring low-pressure systems.

Q: Are there different types of ABS pipes available?

A: Yes, there are two types of ABS pipes: schedule 40 and schedule 80. Schedule 40 is typically used for residential applications, while schedule 80 is thicker and used for higher pressure systems.

Q: How do I determine the nominal size of ABS pipe I need for my project?

A: The nominal size of ABS pipe refers to the approximate diameter of the pipe, which is important for ensuring compatibility with fittings and existing plumbing. It is essential to choose a nominal size that matches your plumbing needs.

Q: Can ABS pipe corrode over time?

A: ABS pipe is resistant to corrosion, which is one of its advantages over metal pipes. However, it can degrade if exposed to certain chemicals or extreme temperatures, so it’s important to use it within recommended guidelines.

Q: What factors should I consider regarding the availability of ABS pipe?

A: When looking for ABS pipe, consider local building codes, supplier stock, and the specific types required for your plumbing needs. ABS is widely available, but some regions may have restrictions on its use.

Q: Is ABS suitable for both home and business plumbing systems?

A: Yes, ABS is suitable for both home and business plumbing systems, particularly for applications related to drainage and waste management. It is often preferred for its cost-effectiveness and ease of installation.

Q: Can ABS pipe be used for hot water applications?

A: While ABS plastic pipe can withstand some heat, it is not recommended for hot water applications. For hot water, it is advisable to use CPVC or other materials designed to handle higher temperatures.

Q: How does the strength of ABS pipe affect its use in sewerage systems?

A: The strength of ABS pipe makes it an ideal choice for sewerage systems, as it can handle the pressures and stresses associated with waste transport. Its durability ensures a long lifespan in these applications.
