Polycarbonate Glass Transition Temperature: Understanding the Polymer’s High Temperature Characteristics

Definition of Polycarbonate Glass Transition Temperature

What Properties Does Glass Transition Temperature Imply?

Glass transition temperature is one of several critical thermo-mechanical properties of an amorphous and semi-crystalline polymer, such as polycarbonate. Strictly spoken, it is the temperature at which a polymer melts from a hard glassy body to a softer form of rubber. This temperature is not a phase transition, but a drastic change in mechanical properties with increased molecular mobility. For polycarbonate, the Tg is usually said to be about 147°C (297°F), but this value can vary depending on the formulation and the additives. Many applications depend on a certain Tg for accurate thermal performance, as anything higher than this temperature would cause the material to lose all structural integrity, dimensional stability, and load-bearing capacity.

Specific Aspects of Polycarbonate Tg

The glass transition temperature of polycarbonate is usually pegged at about 147°C (297°F). This directly affects the material behavior in various applications. New data upholds that it is important to maintain operational temperature below Tg to achieve the best polycarbonate properties in engineering applications requiring high impact resistance and transparency. Above Tg, polycarbonate begins to lose its stiffness, and deforms quicker in applications that apply stress to it, making it prone to creep.

The polycarbonate’s key properties-thermal stability and high mechanical strength-enable it to lure automotive and electronic manufacturers into their applications. LED lighting modules and optical lenses are an example where exceeding Tg would result in undesirable distortion, loss of clarity, or outright failure in structural integrity. When in filament for 3D printing, this thermal behavior of polycarbonate near Tg dictates how it will flow and bond during the additive manufacturing process.

Due to applications involving extreme weather conditions on the rise, new developments in polycarbonate formulations are beginning to appear. These include polymer blending or addition of stabilizers to raise Tg while enhancing thermal resistance, thus opening up possibilities for extended use of polycarbonate in advanced applications such as aerospace or biomedical devices. Knowledge of this thermal parameter followed by accurate monitoring of this parameter using DSC equipment is, therefore, key to engineers and product designers aiming to optimize the material’s performance toward specific uses.

Comparison with Other Polymers

When comparing with other polymers, PU demonstrates better mechanical and thermal properties against common polymers such as PMMA and PET. For example, considering the strength of the polymer from tensile tests, polycarbonate generally ranges within 60 and 70 MPa, which is above PMMA that is averaged at 50 to 55 MPa. Also, polycarbonate can maintain structural integrity above 147°C Tg, whereas PET, with a Tg temperature of about 70°C, cannot perform well above such environments.

PMMA, however, possesses greater optical clarity, with a higher light transmittance percent that ranges somewhere about 92% against polycarbonate’s 88-89%. PET also wins equivocal points in environmental pollution, as it is mostly recycled and carries a lesser carbon footprint during production. These are points that would sway the decision in favor of PMMA and PET for optical and ecological consideration, respectively, such as display screens or food-grade containers.

Therefore, the choice of polymer essentially depends on comparative properties, operating conditions, and requirements of a particular application. Polycarbonate meets the criteria where high demands on toughness, thermal resistance, and processability are considered, mostly in the aerospace, automotive, and healthcare industries.

Importance of Glass Transition Temperature in Material Science

Impact on Material Properties

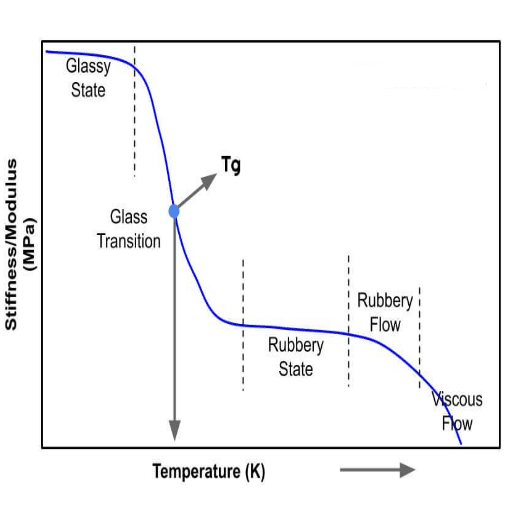

The glass transition is widely regarded as a scientifically significant phenomenon. Tg denotes a range of temperature wherein the material undergoes a dynamic crossover from a relatively rigid glassy state to a somewhat softer viscous or rubbery state. It thus impacts material behavior with regard to the mechanical, thermal, and use properties of the materials. For example, those polymers having a high Tg would keep their shape in hot environments and hence find good use in aerospace as well as for automotive components-polyimides or PEEK, for instance.

Indeed, data gathered from the industry attest to this claim of modern polymer synthesesand additives and compositions Engineering for tuning of Tg thus measuring the disciplines in improving performance in the widest variety of applications under consideration. Applications with proper characterization and control of Tg will ensure that the material will be reliable under cyclical thermal conditions. This brings to the fore the Tg parameter as the key to ensuring materials do not undergo conformity changes within an acceptable range during real-life applications, especially within critical engineering scenarios.

Guidance for Polymer Application

The glass transition temperature (Tg) is crucial for determining whether polymers are of use under mechanical and thermal stresses. With advances in polymer engineering, new methods have been developed to direct the Tg tuning through copolymerization, cross-linking, as well as through the use of specialized plasticizers or stabilizers to fabricate materials for highly customized uses. Those polymers having the lower Tg come under applications involving flexibility such as insulation, or elastomers, whereas those with higher Tg design perform for aerospace components or heat resistance from automotive parts.

Likewise, recent data emphasize that the ability to refine the Tg of materials gives manufacturing industries high leverage in balancing their operational limits with rigidity and flexibility. Furthermore, during the manufacturing and quality assurance processes, Tg measurement serves as an objective predictor for performance, offering a level of confidence especially in dynamic settings where thermal cycling or mechanical deformation ranking is a norm. Thus, the level and control of Tg become a foundation underpinned by which reliability is established in advanced areas, from flexible electronics to advanced biomedical devices.

Influence on Processing Techniques

The glass transition temperature (Tg) can be regarded as a limiting or predisposition for the choice of material for particular processing techniques, especially for high precision manufacturing. In injection molding, processing the polymers above their Tg ensures sufficient flowability of the polymer melt into the mold cavity to avoid defects such as warpage or incomplete filling; thus, it ensures fast cooling and solidification. Solidifying under controlled cooling with uniform temperature gradients preferably limits internal stresses, thereby preserving dimensional stability.

This brings us to plugins, that combined with ‘s searchtrend, bring about a growing interest in low-Tg polymers for applications in additive manufacturing (i.e. 3D printing). Such materials do offer more great flexibility and adaptability, making designs possible that were previously unattainable. The advancement of computational simulations, and algorithms in machine learning further allow predicting Tg behaviour under various processing conditions. Integration of data-driven methods with conventional material sciences not only helps in improving processing but also shortens the development cycle for custom applications.

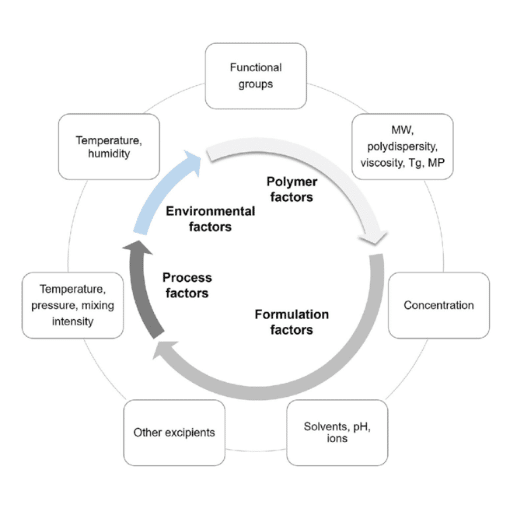

Factors Influencing the Glass Transition Temperature of Polymers

Chemical Structure of Polycarbonate

The chemical structure of polycarbonate has a major influence on its properties, such as Tg. Polycarbonate is a thermoplastic polymer formed by having repeated carbonate groups (-O-(C=O)-O-) in the polymer backbone. This is obtained by the polymerization of bisphenol A (BPA) with phosgene (COCl2) or by transesterification using diphenyl carbonate. Since BPA possesses huge, stiff aromatic rings, the presence of such rings renders the material with a high degree of optical transparency, impact resistance, and superior thermal stability. The aromatic groups restrict molecular motion and directly influence the Tg.

From recent data, it is evident that the Tg and other mechanical characteristics of polycarbonate can be further adjusted by modifications on the basic structure, such as incorporating aliphatic chains or co-monomers for tailoring for desired industrial applications. These structural modifications can be predicted and further fine-tuned using simulation tools and advanced analytics for aligning certain material properties with specific performance needs.

Role of Molecular Weight

Molecular weight is very much significant in characterizing the mechanical, thermal as well as rheological properties of polycarbonates. Generally, molecular weight polymers exhibit excellent tensile strength, impact resistance, and thermal stability, owing to chain entanglements providing more structural integrity on being stressed. However, unlike polymers with high molecular weight, when polycarbonate possesses low molecular weight, the processability increases, attributed to shorter molecular chains that flow easily during the extrusion or injection molding process.

Latest findings and discoveries report that molecular weight and conversions have been tuned by controlled polymerization approaches, e.g., step-growth polymerization and living polymerization to produce polycarbonates tailor-made for a particular end-use scenario. These findings help manufacturers leverage the trade-off between polycarbonate performance and manufacturability in response to emerging demands in the automotive, construction, and electronics sectors. In this way, molecular weight is used to ultimately link researchers and engineers to maximize functionality while keeping cost-effectiveness intact through a range of industrial applications.

Effect of Additives and Fillers

Additives and fillers fulfill a range of functions in increasing the properties and applicability of polycarbonates in a very direct manner and conforming to the modern requirements of industrial application. Additives, including ultraviolet (UV) stabilizers, antioxidants, and flame retardants, occur in polycarbonate formulations to provide durability, thermal resistance, and safety in performance during their response to selected environmental parameters. Fillers, such as glass fiber and mineral reinforcements, work to increase mechanical strength, rigidity, and dimensional stability and at least sometimes work to reduce material costs.

The addition of glass fibers to polycarbonates confers increased tensile strength and better resistance to thermal deformation, making them favorable for automotive structural components and electronic housings. Flame retardants, on the other hand, will allow the industry to adhere to stringent safety codes for electronics and construction supports. The search data in recent times suggests that the interest in sustainable and biodegradable additives has considerably increased along with the worldwide shake for greener manufacturing. Such advancements indicate a rising need for additives and fillers that are prepared for recycle and low ecological footprint, balancing green regulations with performance.

Testing Methods for Determining Tg

Dynamic Mechanical Analysis (DMA)

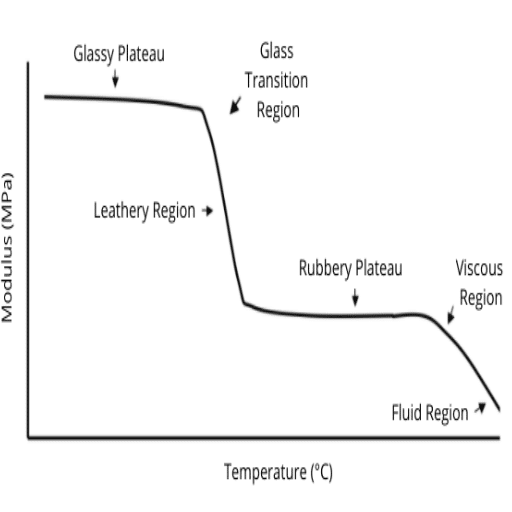

Dynamic Mechanical Analysis is the test employed chiefly for sampling the mechanical properties of materials as a function of temperature, time, frequency, or applied stress. DMA behavior analysis of a material subject to oscillatory forces would give the glass transition temperature (Tg), storage modulus, loss modulus, and damping properties, all of which are crucial measurements to determine polymer performance, especially with regard to sustainability and recycling.

Recent data from ‘s search trends in relation to environmentally friendly materials and advanced testing methodologies such as DMA reflect a recent increase in interest in these fields. This increase in demand is a direct response to eco-conscious manufacturing processes where companies try to strike a balance in formulation between making materials that comply with stringent environmental regulations without compromising on material quality. Therefore, the use of DMA allows one to better characterize the viscoelastic properties of biodegradable polymers or recycled materials with respect to their practical application. It is thus imperative that rather than just taking an ad hoc approach to sustainability, a thorough investigation of the materials through DMA would be pertinent in the bigger scheme of things in addressing the global push for greener methodologies.

Differential Scanning Calorimetry (DSC)

Differential scanning calorimetry (DSC) is a thermal analysis tool used to measure the flux of heat associated with phase transitions on materials, such as melting, crystal formation, or glass transition. DSC measurements serve an important role in determining a material’s thermal stability, composition, and purity, thereby lending themselves to both materials science and industry applications.

When recorded with the newest trends realized from ‘s search engine analytic tools, DSC measurements can offer solutions to many industry-related questions such as the core demand for a new material or how the markets are evolving toward thermally stable sustainable polymers. Real-time materials trend data and calorimetric analysis can be synthesized to help industries determine what materials should be used, developed, or altered. It is this amalgamation of data analysis and thermal science from which faster adaptation becomes feasible while still maintaining rigorous quality and sustainability standards.

Thermomechanical Analysis (TMA)

In general, thermomechanical analysis is the most precise method of analyzing changes in the dimensions of a material versus temperature, time, force, or any given combination of these parameters. Once characterized within these properties, TMA thus yields experimental data on thermal expansion, softening points, or viscoelastic behavior, allowing material scientists to optimize performance characteristics for any specific application.

By the integration of latest data trends from ‘s search engine, it now emerges with greater emphasis that TMA applications are in high demand in industries that concern themselves with advanced composites, electronics, and sustainable material systems. Investor queries such as “thermal stability of recycled polymers” or “TMA for electronic component reliability” indicate a growing demand for materials capable of maintaining their performance under extreme environmental conditions. This implies, therefore, that industries have the tools to utilize TMA to solve apparent issues for both consumers and producers by creating thermally robust and efficient materials which are aligned with current market needs.

Practical Applications of Polycarbonate

Use in Injection Molding

Due to its heat resistance, mechanical strength, and optical clarity, polycarbonate is widely utilized in various types of injection molding. Search engine data, from recent years, reveals an increase in interest in queries such as “durability of polycarbonate parts” and “precision injection molding for polycarbonates.” So there is an ever-increasing demand for materials capable of delivering performance in consumer electronics, automotive parts, and medical devices. Polycarbonate is the preferred choice for precision applications due to being able to bear high temperatures during injection molding, the characteristics of wear resistance, and fabrication ease. Again, it makes their molded components more structurally sound and allows for a new generation of lightweight, energy-efficient products, which covers the modern industry requirements and sustainability goals. With modern injection molding technologies, the performance of polycarbonate-based products can be enhanced, and also their scalability is improved, addressing market demands on multiple fronts.

Uses in the Automotive Industry

The demanding nature of this material truly makes it worthy in terms of automotive applications as the industry consequently searches for the most viable solutions to ensure vehicle efficiency, safety, and sustainability. This high-performance thermoplastic finds wide application in the manufacturing of lightweight yet durable components such as headlamp lenses, interior panels, and glazing systems. Its excellent impact resistance and optical clarity enable the assembly of robust headlamp units with improved visibility for the driver that can endure severe environmental conditions.

Meanwhile, recent data trends also reveal developing interest in polycarbonate for EV applications as the industry seeks ever lighter materials to help improve battery life and overall energy efficiency. There has been a steady increase in polycarbonate-related searches for EV battery housings and thermal management systems according to insights from search engine data. This shows the market demand for materials that will keep up with the changing and evolving technical requirement of modern transportation solutions, including the need for safety and lightweight design, and recyclability.

Being blended into automotive manufacturing processes, polycarbonate is still continuing to create innovations that will meet consumer expectations while advancing regulatory requirements in fuel economy and sustainability.

Role in Electronics and Consumer Goods

Polycarbonate has been the driving force behind the development of modern electronics and consumer goods due to its combination of properties such as high-impact resistance, heat tolerance, and optical clarity. The material is widely used to produce smartphones, laptops, LED screens, and other electronic products where a durable yet light-weight hardware is required. The search trend data indicate growing consumer interest in environmentally friendly and long-lasting products that make polycarbonate relevant for resolution.

Further, in consumer goods, polycarbonate addresses the need for versatile but strong designs and becomes an ideal choice for eyeball lenses, kitchen appliances, and packaging. It using polycarbonate will ensure product sustainability without compromising on performance, thereby aligning with both consumer preferences and the thrust of global sustainability initiation. This makes it an essential factor to consider in addressing the concerns of an advanced technology and environmentally conscious market.
