Understanding POM: The Versatile Polyoxymethylene Plastic

Polyoxymethylene (POM), also known as acetal or polyacetal, is an engineering thermoplastic of high concern, fully integrated into contemporary production and technology. Thermoplastics greatly stand out with astonishing strength, rigidity, and low friction, which POM provided, hence attracting wide attention in industries from automotive to consumer electronics. The goal of this article is to analyze the peculiarity POM possess in engineering applications considering its chemical structure, advantages and use cases. Whether you are an engineer with immense experience or just a curious reader willing to learn the fundamentals of modern materials technology, this piece will reveal endless possibilities of POM in innovation throughout numerous sectors.

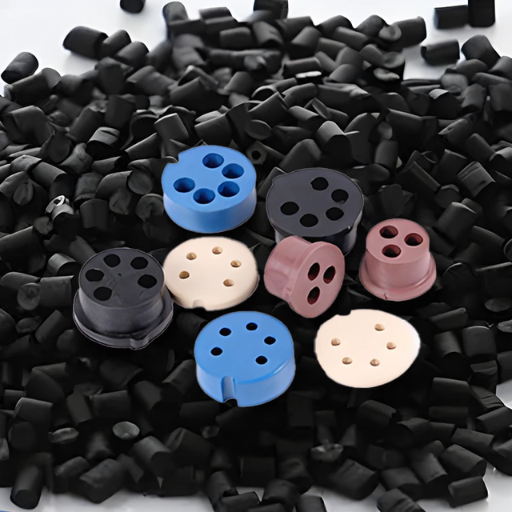

What’s POM Material?

As previously mentioned, POM is an engineering thermoplastic and has widely been applied into precision components due to its low friction, excellent wear resistance and high moisture and chemical resistance. Its remarkable features such as dimensional stability, strength and rigidity qualifies POM to be used in more functionalities than what used to be available. Nowadays, POM serves multiple industries, for example, automotive, consumer electronics, and industrial machinery, where gears, bearings, and housings are produced. Its unprecedented characteristics makes the thermoplastic multi-functional, therefore enhancing versatility.

Definition and Composition of POM

POM or polyoxymethylene, also known as acetal or polyacetal. The polyoxymethylene is an example of a thermoplastic engineering polymer, having in its structure crystallites. It is obtained from the polymerization of formaldehyde, which gives it a stable, poroxyacetal, highly compacted material with excellent mechanical capabilities and low tensile strength. POM is seen both as a homopolymer and a copolymer, each having its own advantages. While Homopolymer POM possess higher tensile strength and stiffness, copolymer POM is favorable in thermal resistance along with resistance to degradation in a high moisture atmosphere or chemically aggressive environments. Further the need for high melting points of POM (175° C for copolymers and ~180 °C for homopolymers) and low friction makes this material ideal for industries with high precision machineries which require rigorous durability.

Difference Between Homopolymer and Copolymer POM

Characteristics of Polyoxymethylene

Poloxymethylene (POM) is a polyacetal which is crystalline polymer. POM is known for its remarkable mechanical properties, endurance against wear, and its thermal properties. below are some distinctive attributes regarding POM.

• Thermal Stability: POM Acetal showed a remarkable resistance to degradation in terms of thermal stability with a melting temperature of 175°C (347°F) for homopolymers. Copolymers would have slightly lower melting points.
• Dimensional Stability: A Polymer’s thermal expansion and rigidity are linked with its dimensional stability. POM has low thermal expansion, high rigidity, and excellent dimensional stability under mechanical loads and temperature fluctuations. Its shrinkage rates during injection molding are between 1.8% and 2.5%, which is useful for precision applications.
• Chemical Resistance: POM is an acronym for PolyOxymethylene and provides polymer like characteristics such as good resistance to chemicals. Balanced with low frictioned hydrocarbons, alcohol, and diluted acids but high alkali and oxidizing agents. Strong and highly concentrated acids, on the other hand, do cross the barrier put up by Pom hence structurally weak bases and strong oxidizing agents require attention.
• Wear Resistance and Low Friction: For parts that are moving like gears and bearings, being able to withstand a high amount of wear while possessing a low frictional coefficient is ideal. POM is able to do just that.
• Moisture Absorption: Unlike other engineering plastics, polyoxymethylene’sHumidity creates little impact to the polymers structural integrity (0.2% at 23°C).

These characteristics have increased interconnectedness of polyoxymethylene with various automobile and industrial manufacturing systems, consumer products, and medical instruments, making it a preferred choice where mechanical strength, chemical resilience, and ease of processing is needed.

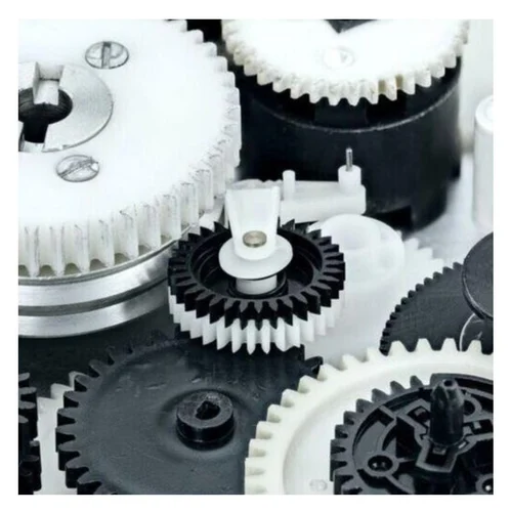

What are the Applications of POM Material?

POM is advantageous for having great mechanical strength, low wear friction, and great resistance to wear the same. Because of this, it is extensively misused in:

• Automotive Components: POM is widely utilized in automotive industry in fuel system components, gears, bearings and seat belt retractors because of its automotive endurance and high performance POM serves under stress.
• Industrial Machinery: Due to POM’s low friction and holding of shape over time, it is used in conveyor belts as well as in pumps and in precision engineering as parts for pumps and precision gears.
• Consumer Goods: For POM, toys, kitchen utensils, fasteners, and zippers are the best classic examples. In such fast moving markets, its strength and tough nature aids with mass production and durability.
• Medical Devices: Instruments such as inhalers, insulin pens, and other surgical equipment benefit from POM with its precise construction and ability to work with the human body.

Such different fields of use shows POM’s versatility and importance for many different businesses.

Common Uses of POM in Industry

• Automotive Engineering: POM is known to serve as an important material in the automotive industry for parts including; fuel system components, seatbelt devices and gear systems. It is well known that moving parts of modern vehicles experience significant mechanical strain. In addition, POM provides good fuel and lubrication resistance while enduring high mechanical stress. As such, moving automotive parts greatly benefits. Using lower friction supports POM’s fuel economy together with longer lifetime of the equipment.
• Electrical and Electronics: Connectors and switches alongside delicate electronic components are manufactured from POM due to its high resistance against electrical currents and heat. Harsh temperatures and chemicals do not heavily impact components made from POM which enables them to perform reliably.
• Industrial Machinery: Employing components such as conveyor belts, bearings, or fasteners into machinery require a certain level of precision and poms stiffness, low moisture absorption rate, and resistance to deformation while humid environments help achieve exactly that.

These examples further highlight POM’s position as a multifunctional, high-value polymer. It continues to play a critical role in modern technology because it fulfills the stringent requirements posed by various industries.

High-Performance Applications of POM

Due to the combination of the low friction and the mechanical strength of POM, its cross-sectional use in low friction sliding components as well as bearings, gears, and multi-part assemblies, along with high electrical insulation, fulfills the criteria of many shrinking industries. Here is the listing of some with the highest performance:

1. Automotive Components

The use of hydrocarbon resistant polymers extremely utilizes POM to construct electrical connectors, fuel systems equipment, gears, and similar devices, retaining perfect accuracy through time. As a case in point, use of POM bushings and bearings in automotive engines helps friction and wear minimization. Additional data suggests POM outlasts other thermoplastics in durability to increase component lifespan by as high as 25%.

2. Industrial Machinery

Such low values of polymer’s long term creep and low fatigue resistance give POM a distinguished role in exact rotary and linear motion parts such as parts of and link with conveyor belts, valves and pulleys. The assurance of preservation of function under maintenance of constant load, high speed and harsh environmental conditions make it superior. Data shows over 20% increase of efficiency of worn out conveyors with POM components over metal ones.

3. Consumer Electronics

Like with mentioned devices whose functions are based on motion in a dated circumferential system or rotation and require significant thrust and precision bearing, small tires, levers and other frames benefit from high performance and precision polymer parts boosting reliability, strength low moisture absorption and non deformation makes POM hard to replace for camera and home appliance grade devices.

4. Medical Devices

Because POM is easy to sterilize and biocompatible, it is used in inhalers and insulin pens as well as surgically blades and other surgical instruments. POM’s ability to endure mechanical stress yet precise accuracy helps in the safety of the patient and reliability of the equipment.

POM’s use in modern engineering and technological solutions illustrates its feature and the importance of its further use.

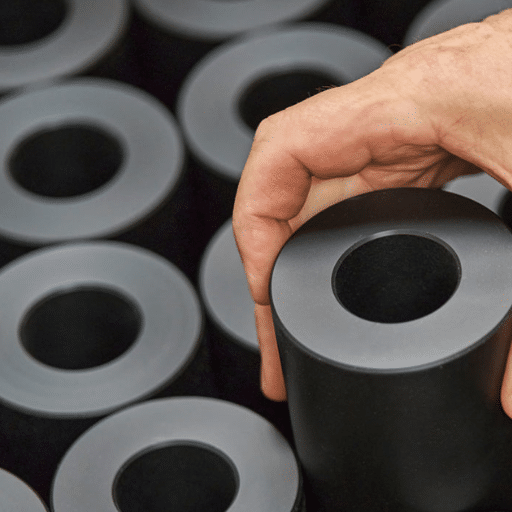

What are the Key Properties of POM?

1. High Strength and Stiffness

POM’s mechanical strength and rigidity results in exceptional performance for applications requiring load-bearing durability.

2. Low Friction and High Wear Resistance

POM performs exceptionally with motion and high-cycle tasks due to its low friction and resistance to wear.

3. Dimensional Stability

POM exhibits consistent performance and reliability regardless of varying temperatures and mechanical stress due to its shape and size retention.

4. Chemical Resistance

The ability to resist weak acids, solvents, and fuels qualifies POM for use in industrial and automotive settings.

5. Thermal Stability

POM stands out for its reliability within -40°F to 230°F (-40°C to 110°C) as most materials would degrade significantly. .

Dimensional Stability and Rigidity

Dimensional stability and rigidity are two critical properties which ensure the use of Polyoxymethylene (POM) in areas requiring precise engineering. POM has a remarkable resistance to deformation under load, retaining its shape even with prolonged mechanical stress. This property is beneficial for its use as gears, bearings, and other precise engineering components such as forgings and castings where tight tolerances are required. In addition, POM’s low coefficient of thermal expansion guarantees low range of changes in dimensions and shape over a wide range of temperatures. This reliability makes POM useful in high-performance automotive, aerospace and consumer electronics applications as these sections demand precision, sophistication, and extreme durability.

Chemical Resistance of Acetal Polymer

Acetal polymers show great resistance to chemicals which makes it useful in areas where contact with difficult chemicals is unavoidable. They resist most harsh materials such as solvents, weak acids, and bases. This is because the chemical bonds in the polymer are highly crystalline which slows down the process of chemical breakdown. Acetal polymer proves to be very useful in automotive and industrial applications due to its resistance to fuels, oils, and grease.

Nevertheless, acetal polymers are vulnerable to severe nitric and sulfuric acids, or caustic alkalis which can lead to deterioration with long exposure. Pertaining to optimal conditions for use, some specific circumstances and chemical factors must be studied concerning its resistance in a given purpose and application. Its stability in chemicals, combined with its tensile strength and toughness, gives these materials a wide range of uses in several branches of industry and technology where chemicals must be considered.

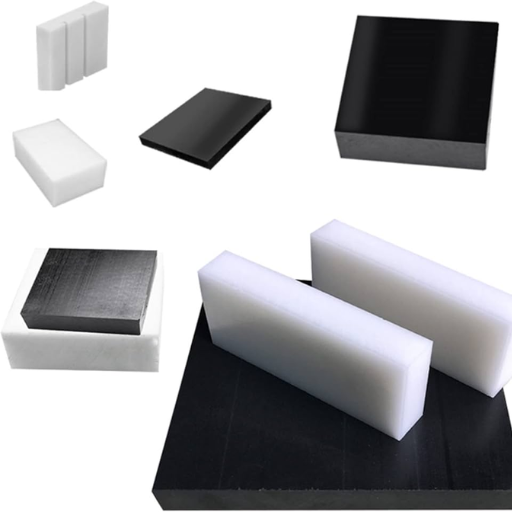

How Does POM Compare to Other Engineering Plastics?

POM, or polyoxymethylene, is one of the most used engineering plastics. Its wear resistance coupled with mechanical strength, dimensional stability, and durability stands out compared to other options. POM is less water absorbent than nylon which decreases its wear and tear as well as improves its dimensional consistency in humid environments. POM also outdoes fatigue resistance, which makes it better over repeated stress compared to nylon and ideal for moving parts like bearings and gears. Although polycarbonate has more impact strength, POM has the upper hand in low friction and high precision applications. With these many polyoxymethylene performs best in industrial and mechanical applications,

POM vs. Other Thermoplastics

Benefits of Using POM Over Acetal Resin

Compared to generic acetal resins, Polyoxymethylene (POM) boasts a wider range of uses alongside better cost effectiveness, performance characteristics, benefits, and versatility. These advantages derive from enhanced material properties and consistent manufacturability. Detailed below are the key benefits:

1. Higher Dimensional Stability

Changes in environmental conditions do not dramatically alter the shape of POM components. Compared to many acetal resins that are modified under humid conditions, POM retains its form thanks to lower moisture absorption rates of 0.2-0.3% even at saturation levels.

2. Superior Fatigue Resistance

The fatigue resistance of POM is superior compared to other acetal resins. This is beneficial for the repeated or dynamic load use in gears, levers, and springs which lead to lower maintenance and lengthened service life.

3. Wider Operating Temperature Range

POM is better than most acetals for surviving extreme temperatures where others may be prone to degradation, with standing from -40°C to 120°C.

4. Better Surface Finish

POM enhances natural surface smoothness which decreases friction for moving parts. This characteristic is important in precision gears as well as other sliding components where reduction of friction is critical.

Industries such as aerospace, automotive, or electronics that require high precision and outstanding performance alongside a lasting life span turn to POM, demonstrating how it is preferred over standard acetal resins and highlighting the incredible versatility it possesses. The astonishing blend of these benefits illustrates how POM is easily the better option.

Performance Comparison: POM and Delrin

POM or Polyoxymethylene and Delrin, a branded form of acetal resin, have almost identical properties because of their chemical similarities. However, differences between them exist and profile them for particular uses. Both materials provide excellent strength, stiffness, low friction and besides reliability deliver durability in high-performance situations. Delrin, a homopolymer acetal, typically affords slightly higher tensile strength and stiffness compared to POM copolymers. This benefit comes from high crystallinity of Delrin which improves its mechanical property and, most importantly, in applications where endurance to repetitive stress or load bearing is critical.

On the other hand, the POM copolymers have better resistance to thermal degradation and hydrolysis, especially in cases of long-term exposure to moisture and heat. Moreover, POM copolymers are known to have lower centerline porosity compared to Delrin, which is important for applications requiring dimensional stability and less tendency to crack or form voids. Factors like wear resistance, chemical resistance, and ease of manufacturing often affect the selection decision. The automotive, medical, and industrial sectors with high-accuracy engineering composites often survey the subtle performance differences between POM and Delrin to make informed decisions.

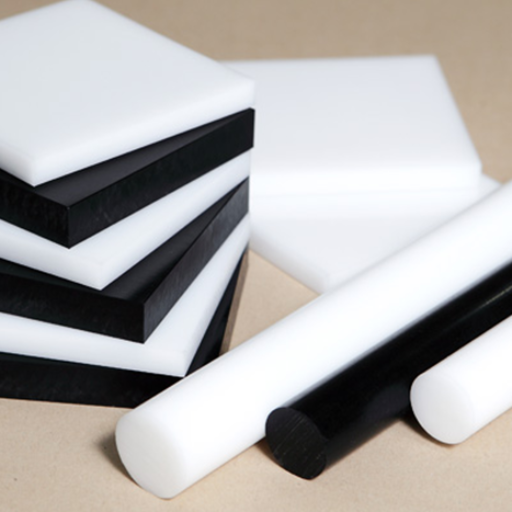

What are the Mechanical Features of POM?

POM is appreciated for its mechanical properties which are advantageous for many applications. These include POM’s:

• High Strength and Stiffness: POM’s tensile strength and rigidity are exceptional, making it endure mechanical stress.
• Low Friction and Wear Resistance: Its outperforming use in wear environments is due to its smooth surface and low friction coefficient.
• Dimensional Stability: POM retains its shape and tolerances when exposed to moisture and temperature fluctuations.
• Impact Resistance: POM is able to endure blows without significant deformation or breaking, showing remarkable toughness.
• Fatigue Resistance: POM tolerates Repetitive stress exceptionally well, ensuring performance in dynamic applications.

These mechanical properties are why POM is commonly utilized in sophisticated bearings, gears, and other precision parts.

Tensile Strength and Hardness of POM

POM has an impressive tensile-strength range of 60-70 MPa depending on the particular grade and processing conditions used. In combination with thorough formulation, reinforcing materials allows POM to withstand considerable structural loads without permanent deformation, solidifying its position as a top-tier engineering plastic for critical applications.

Moreover, the hardness of POM materials is remarkable as they usually possess Rockwell hardness in the M70 to M90 range. This level of hardness gives POM exceptional protection against surface wear and abrasion, enhancing the longevity of parts suffering from frictional or sliding forces. The synergetic effect of all these mechanical properties allows POM to retain its shape and structural stiffness even when force is constantly applied. Products and materials such as these are greatly needed in the automotive and aerospace industries as well as in precision engineering, which require high durability and performance.

Wear Resistance and Low Friction Characteristics

POM’s exceptional factors include its wear resistance and low thermal energy generation, which is ideal for materials exposed to movement, contact, and friction, such as gears, bearings, and conveyor systems. It retains protective layers and surface textures under prolonged dynamic stress; thus, maintains a smooth surface without losing material. Performance-enhancing modifiers, including lubricants and fillers, improve maintenance needs and equipment servicing in high-load environments. Temperatures and certain chemicals have little effect on POM’s performance, proving dependability to precision components within mechanical systems. These combined features help refine industrial processes and decrease active maintenance needs.

Reference Sources

1. Polyoxometalate (POM)-based Battery Materials: POMs, when combined with support materials of varying dimensionalities (0D, 1D, 2D, 3D), show enhanced energy storage performance.

2. Polyoxometalate-based Materials Against Environmental Pollutants: POMs serve as effective adsorbents and catalysts due to their high thermal stability, redox properties, and modification capabilities.

3. Molecular Mechanisms of Polyoxymethylene Wear: POM-POM pairs exhibit significant wear due to macromolecular interpenetration and rupture under shear stress, while POM-PEEK pairs show minimal wear.

Frequently Asked Questions (FAQs)

Q: What is POM and what are its primary characteristics?

A: POM, or polyoxymethylene, is commonly called acetal and is a versatile engineering thermoplastic known for its high stiffness, good chemical resistance, and excellent mechanical properties. It is semi-crystalline and characterized by low water absorption and a low coefficient of friction.

Q: What are the different grades of POM available?

A: There are various grades of POM, including acetal homopolymer and polyacetal copolymer. Each grade is designed to meet specific performance properties and applications, with the acetal homopolymer being more widely used due to its superior mechanical properties.

Q: How is POM manufactured and processed?

A: POM is polymerized by anionic catalysis and is typically supplied in a granulated form. It can be processed using common manufacturing processes such as injection molding and extrusion, and can also be machined using CNC machines to achieve precise dimensions.

Q: What are the material properties of POM that make it suitable for engineering applications?

A: POM material properties include good dimensional stability, high stiffness, low coefficient of friction, and excellent chemical resistance, making it a preferred material for engineering thermoplastic applications where durability and precision are key.

Q: What are some common applications of POM?

A: POM applications include parts in automotive, consumer goods, industrial machinery, and electronics. Its good dimensional stability and mechanical properties make it suitable for components such as gears, bearings, and fasteners.

Q: How does POM compare to other plastics like nylon?

A: Compared to nylon, POM typically offers better stiffness, lower water absorption, and enhanced dimensional stability. However, nylon may provide better chemical resistance in certain environments. The choice between these materials often depends on the specific application requirements.

Q: Can POM be reshaped or reformed after production?

A: Yes, POM can be reshaped or reformed by applying heat. This allows manufacturers to create components in a desired shape, making it a versatile material for various manufacturing processes.

Q: What is the significance of the low coefficient of friction in POM?

A: The low coefficient of friction of POM makes it an ideal choice for applications involving moving parts, as it reduces wear and energy consumption. This property is particularly beneficial in components like bearings and bushings.
