HDPE Properties: A Technical Guide for Engineers and Buyers

Marcus Chen, a procurement head at a Malaysian pipe-extrusion firm, once almost signed off on a purchase order of 20 tons of HDPE last year, looking only at the supplier’s so-and-so datasheet? That COA only arrived post order and payment. The MFI was 1.8 g/10 min, way outside the required 0.2–0.4 g/10 min for his PE100 pipes. Luckily, none was used.

As the plant could lose three-weekened considering its material with airfreight from another source, Chen clearly suffered an asset deficiency.

His mistake comprised his belief that all HDPE identified as “high density polyethylene” behaves the same way. It does not. HDPE properties differ rolling up in great span on grade, manufacturer and compounding quality. Numbers on a datasheet are only germane if the material at your door-whether it matches those or not.

In this guide, the mechanical, thermal, and chemical properties of high-density polyethylene are discussed, with typical ranges specified. The guide also lets you know what must be verified when finding the source of high-density polyethylene resin, given that your manufactured material matches exactly to the theoretical model.

Want to source certified HDPE with full COA documentation? Request a quote for verified HDPE resin with 25 kg minimum order and FOB Shanghai shipping.

What Is HDPE? Structure and Classification

High-density polyethylene (HDPE) is a thermoplastic polymer synthesized from the monomer ethylene via polymerization catalysis. The “high density” name comes from the polymer’s crystalline structure. HDPE has virtually no branches in the polymer chain and allows a large number of molecules to be packed closely at a high density. Crystallinity lends HDPE its stiffness, chemical resistance, and melt point among some of the various polyethylene variants.

Typical HDPE density range: 0.941–0.965 g/cm³ (ASTM D792). This is the defining property that separates HDPE from low-density polyethylene (LDPE), which typically falls between 0.910–0.940 g/cm³.

HDPE Grade Categories

HDPE is not a single material, but a family of grades, which have been optimized to fit certain processing methods, and certain processing uses:

• Injection-molded grades: higher melt flow index (MFI), typically 8 to 50 g/10 min, for complex part geometries
• Extrusion grades: lower MFI, typically 0.2 to 8, g/10 min, for pipes, sheets, and profiles.
• Blow-molded grades: moderate MFI; 0.2-1.5 g/10 min, for blow bottles and containers
• Film grades: specialized for thin-wall packaging applications
• PE80 and PE100 pipe grades: defined with slow crack growth and long-term hydrostatic strength to pressure piping

Concerns arise with the following pertinent point: An item labeled ‘HDPE’ on a purchase order is too general. Needing the grade classification, MFI range, and manufacturer’s’ datasheets are essential steps to ensure the material conforms to your own process.

HDPE Mechanical Properties

The mechanical properties of HDPE make it one of the most versatile commodity thermoplastics, with a favorable strength-to-density ratio; HDPE offers a high structural weight reduction in comparison to steel.

Tensile Strength and Stiffness

Typical HDPE tensile strength: 20–37 MPa at yield (ASTM D638). Higher-density grades and those with narrower molecular weight distribution tend toward the upper end of this range.

Flexural modulus can reach 0.8-1.4 GPa. This level of stiffness is usually used for standing containers, structural pipe, and industrial tanks. It is lower than engineering plastic POM (˜ 2.6 GPa) or PA66 (˜ 2.8 GPa), but adequate for appropriate applications for which cost and chemical resistance seem to outweigh rigidity.

Impact Resistance

That HDPE retains rather decent resilience over a wide temperature range, even under sub-zero conditions, has been rejected not even for the all-important utility in fuel tanks, chemical drums, and outdoor furniture. Much like a normal engineering polymer, unnotched Izod impact values are very high, whereas notched impact resistance decreases with increasing density, and thus, increasingly, increased crystallinity.

Hardness and Abrasion Resistance

Shore D hardness: 60-70. HDPE tends to wear better than LDPE and many softer thermoplastics, and this is why it is employed in applications like lining materials of chutes and conveyor components.

Creep and Environmental Stress Cracking

HDPE is limited here. When subjected to a continuous mechanical load, HDPE creeps, meaning it will deform slowly over time. Design engineers must take this into consideration for load-bearing applications. More importantly, under conditions of stress, HDPE is highly susceptible to environmental stress cracking (ESC):, which means that the material can fail by brittle crack onset when it comes into contact with certain surfactants, oils, or detergents.

What is not a defect is a well-known behavior which must be taken into account during grade selection. PE 100 pipe grades and certain blow-molding grades are made specifically to incorporate improved ESC-resistant properties.

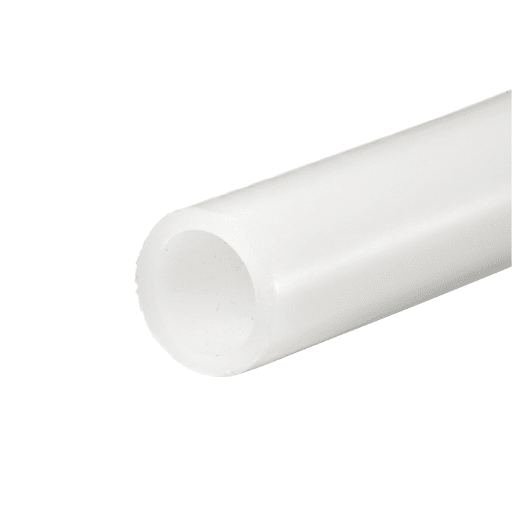

HDPE Thermal Properties

Melting Point and Crystallization

HDPE melting point: 120–140°C, with typical peak crystallization temperature at around 130°C. The exact value depends on the molecular weight and density: higher-density grades with greater crystallinity melt at the higher end of this range.

Heat Deflection Temperature

• HDT at 0.45 MPa: 70–100°C
• HDT at 1.82 MPa: 40–80°C

This values HDT is good for very many applications at that which has varying ambient temperature and high ambient temperatures. However, these values are not nearly high enough for extended high-temperature service. For comparison, a POM copolymer can handle 100°C continuous service just as a PA66 with glass fiber reinforcement goes way above 150°C.

Continuous Service Temperature

A recommended temperature for continuous use is -50 degrees to 60 degrees Celsius for the general grades; some grades, through stabilization, may go slightly higher, but HDPE is not a high-temperature plastic. Designers must give a margin of safety from parts that will intermittently be exposed to heat.

Thermal expansion

Coefficient of linear thermal expansion (CLTE): In the range of 100-150 × 10⁉⁆/°C. This shows disparity when compared with metals and other more crystalline engineering materials. Adventures of temperature expansion would require dimension allowances for precision-fit assemblies.

HDPE Chemical Resistance

H_BDPE’s chemical resistance is considered one of its best characteristics owing to the presence of a fully saturated backbone of hydrocarbons that are not subject to attack by a lot of chemicals at room temperature.

Their Interaction with Strong and Weak Acids, Bases, and Solvents

• Strong Acids: Excellent resistance to weak concentrations, as well as to concentrated sulfuric, hydrochloric, and nitric acid at room temperature
• Bases: Excellent resistance to caustic soda, ammonia, and alkaline solutions
• Alcohols and glycols: Generally excellent
• Oils and greases: Good to excellent resistance to aliphatic hydrocarbons and mineral oils
• Aromatic solvents and chlorinated hydrocarbons: Poor resistance — swelling and softening occur
• Oxidizing agents: Limited resistance to strong oxidizers at elevated temperatures

Environmental Stress Cracking Resistance (ESCR)

The effect of resistance ES against stress crack is observed with surface-active agents. Standard HDPE having moderate to ESCR in this regard. Where serious applications such as, but not limited to, detergent containers, chemical belting, and pipework are involved, a special type with a better run of ESCR tests according to ASTM D1693 or similar standard would be selected.

MOISTURE AND PERMEABILITY

Water Absorption (24 h): < 0.01%. HDPE provides an excellent moisture barrier, which makes it not only suitable for milk bottles and food packaging but also popular in the market, providing a shield for pond liners. It also has low water vapor gas permeability but is permeable for oxygen and carbon dioxide with significantly swollen thickness compared to PET or EVOH.

HDPE Electrical and Optical Properties

Dielectric Properties

HDPE represents excellent insulation when subjected to an electrical situation:

• Dielectric strength: 20-30 kV/mm
• Volume resistivity: >10¹⁵ Ω·cm
• Dielectric constant: 2.3-2.4

HDPE is also recommended for jacketing and insulation applications, where it must be flexible, moisture resistant, and wholly resistant to chemicals.

Optical Properties

In natural state, HDPE is translucent to opaque, exhibiting an almost milky appearance or waxy luster; it is not a part of the transparent plastics category. For applications demanding optical clarity, PC, PMMA, or PET would be better choices. Although HDPE’s opaque nature is typically considered a disadvantage, in UV-stabilized outdoor applications in fact, the polymer matrix can be compounded with elements like carbon black or other stabilizers for managing its outstanding weatherability.

HDPE Processing Properties

Melt Flow Index (MFI)

MFI is the most important processing parameter for HDPE grade selection. It indicates how easily the material flows when molten:

Using an improper MFI grade for a particular process causes technical problems. An MFI that is low for injection molding yields inadequate cavity filling, high injection pressures, and warp distortion of parts. An MFI that is too high for pipe extrusion leads to poor melt strength, resulting in sagging after cooling.

Shrinkage and Dimensional Stability

Mold shrinkage: 1.5-4.0%. This high mold shrinkage is related to the crystallization tendency that HDPE exhibits as it cools. Early and forceful consideration of this point is a must, especially in heavier parts in situations where differential cooling can induce internal stresses and distortion.

Processing Temperature

Standard melt processing temperature: 180-240°C. HDPE has a vast processing window, making it forgiving of most extrusion and molding operations. Nevertheless, temperatures staying above 270°C for a long time induce thermal degradation, causing discoloration, odor, and reduced mechanical properties.

HDPE vs. LDPE and LLDPE: Property Comparison

In like applications, engineers fundamentally choose HDPE, LDPE or linear low density polyethylene (LLDPE) making the choice based on stiffness as opposed to processability and impact resistance.

You pick HDPE: When stiffness, chemical resistance, and structural integrity are more important than flexibility or clarity. HDPE prevails for the rigid, highly dense toffee containers designed in for pressure pipe uses like structural indusrial parts.

Pick LDPE: When flexibility, transparency, or ease of heat sealing are the best criteria-LDPE packaging film and flexible tubing being the classic examples.

You pick LLDPE: When you are looking for toughness and puncture resistance in film applications – usually as a blend with LDPE.

Sourcing HDPE: Ensuring Properties Match Specifications

The attributes outlined in this guide are characteristic of excellent quality high-density polyethylene. However, one can also come across material with properties far from those stated in datasheets. Verification is thereby crucial for offshore buyers selling from China.

Why Branded Prime Resin Is Important

Major global petrochemical producers like SABIC, LyondellBasell, INEOS, Dow, and various Asian producers make HDPE. Branded prime resin by these manufacturers gets quality control rigorously done even with MFI, density, and mechanical properties varying narrowly from lot to lot.

Compound grade or no-name HDPE from alternative suppliers can show drifts major enough for concern in property from batch to batch. Even the slightest shift in density is a matter of concern for a pipe extruder running a PE100 certification test. In the case of an injection molder, MFI variations change cycle times and part dimensions.

How to Read an HDPE Certificate of Analysis (COA)

A legitimate COA issued by the manufacturer should contain the following parameters for the material used for HDPE:

• Material name with grade designation
• Name of the Manufacturer along with the name and lot number of the shipment
• MFI value under conditions of test (usually 190°C/2.16 kg per ISO 1133 or ASTM D1238)
• Density of material
• Tensile strength at break
• Compliance statements as applicable (FDA, RoHS, REACH)

Cross-reference the MFI and density values against the manufacturer’s published datasheet; any values falling outside the limit band will call for a prompt reply from the supplier before such material can be used in production.

Red Flags in Unverified HDPE Supply

• Majority of manufacturers lack the paper trail: COA produced by suppliers are not traceable to production records.
• Failing to provide grade: Designation of HDPE granules without a specific grade or MFI range is considered poor material description.
• Deviating from the market price: Prime HDPE has a price based on worldwide trade. large price reductions may indicate material that is either off-grade, recycled or mislabeled.
• Melt Flow Index (MFI) varies dramatically from lot to lot: If your repeat orders are coming in with unreasonably differing MFI values (as much as 20% between lots), your supplier is bad on sourcing from a continuous stream of prime grades.

At Yifuhui, we supply certified HDPE grades with manufacturer-issued COA documentation, full export paperwork, and batch traceability — starting from 25 kg minimum order with FOB Shanghai as our standard term.

Conclusion

Its fundamental properties of high chemical resistance, water vapor barrier ability, extreme resilience, and processability, together with a moderate cost position, have collectively rendered HDPE the most produced thermoplastic by far. With a typical density of 0.941–0.965 g/cm³, tensile strain values anywhere between 20 and 37 MPa, and a melting point around 130°C, it serves the purpose for anything from municipal water supply piping to food containers to cable jackets.

But HDPE is not the right choice for every application. Its relatively low heat deflection temperature, susceptibility to environmental stress cracking, and high thermal expansion mean engineers must select grades carefully and design with these limitations in mind. Understanding high density polyethylene properties — from density to MFI to chemical resistance — is the first step in making the right material decision. More importantly, the properties on a datasheet are only meaningful if the material you receive actually matches them.

The moments of truth when you are buying HDPE from China: Just specify the grade and MFI range, ask for a manufacturer-provided COA, and check the key value against the datasheet that comes in with the material before it hits the factory.

Ready to source certified HDPE resin? Request a quote for verified HDPE with full COA documentation — 25 kg minimum order, response within 24 hours, FOB Shanghai.

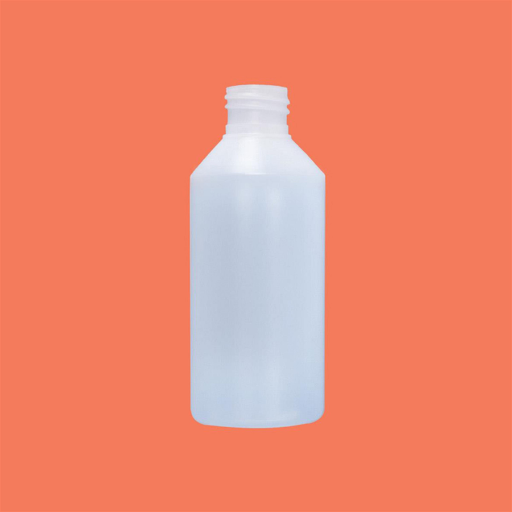

Frequently Asked Questions

What are the major attributes of HDPE, as known from an engineering perspective?

Major attributes of HDPE, such as density, tensile strength, and melt temperature have already been mentioned. Other significant considerations include resistance to chemicals and melt flow properties. These considerations will indicate whether HDPE in its various forms will be appropriate for a given application and mode of processing.

What is the density of HDPE?

HDPE density typically falls between 0.941–0.965 g/cm³ according to ASTM D792. This higher density, driven by HDPE’s linear molecular structure and low branching, is what separates it from LDPE (0.910–0.940 g/cm³) and gives it greater stiffness and strength.

What is the melting point of HDPE?

HDPE has a melting point around 120°C to 140°C, while most commercially used grades have a peak of about 130. The melting point depends upon the molecular weight and crystallinity, higher-density and higher crystalline structures would melt towards the upper end of the range.

HDPE is resistant to acids and bases?

Yes. It is primarily resistant to most acids, alkalis, and alcohols at or near ambient temperatures. It is commonly employed also in chemical receptacles, acid tanks, and industrial piping. Nevertheless, HDPE has poor resistance to aromatics, chlorinated hydrocarbons, and strong oxidizing agents at elevated temperatures.

How does HDPE vary from LDPE?

HDPE has linear molecular structure with generous stretching and minimal branching, thereby yielding superior density, bigger stiffness, and better resistance to a wider range of chemicals. In contrast, LDPE has plenty of branching; thus, it is softer, bendier, and more translucent. HDPE rigid containers and pipes; LDPE flexible film and packaging applications take priority.

How do I verify that HDPE resin from my supplier matches its datasheet?

Request a manufacturer-issued Certificate of Analysis (COA) for every lot. Cross-reference the measured MFI and density values against the manufacturer’s published datasheet. Lot-to-lot variation within a prime-grade HDPE should be small. Large deviations or supplier-generated COAs without manufacturer traceability are red flags.

What MFI range should I choose for HDPE injection molding?

Usually in general injection molding, HDPE grades using MI range from 8 to 20 g/10 minutes. If a wall is thin with complex geometries, even MI 20 to 50 g/10min may be required. MI around 0.2-0.5 g/10min are used for pipe extrusion, mainly to increase melt strength.
